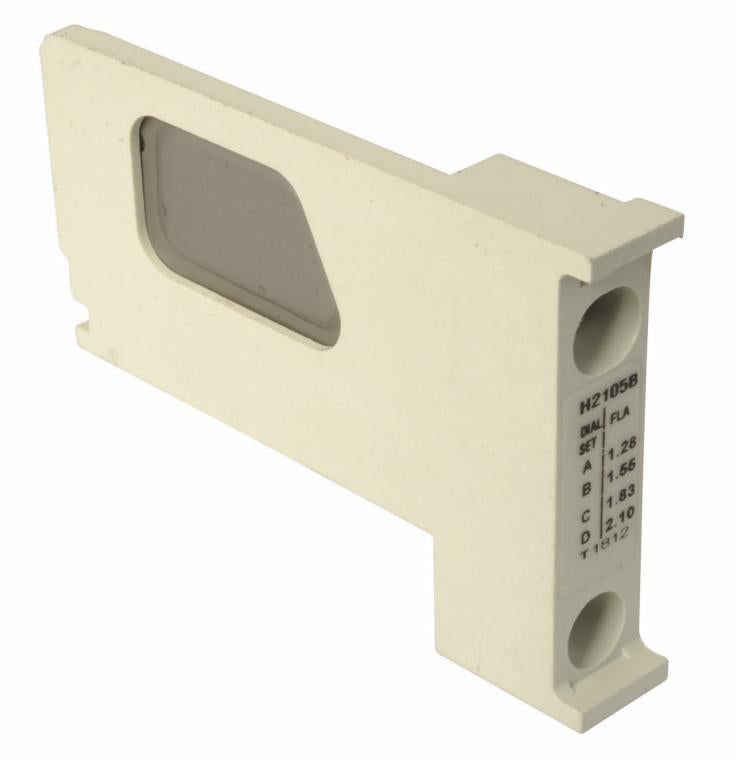

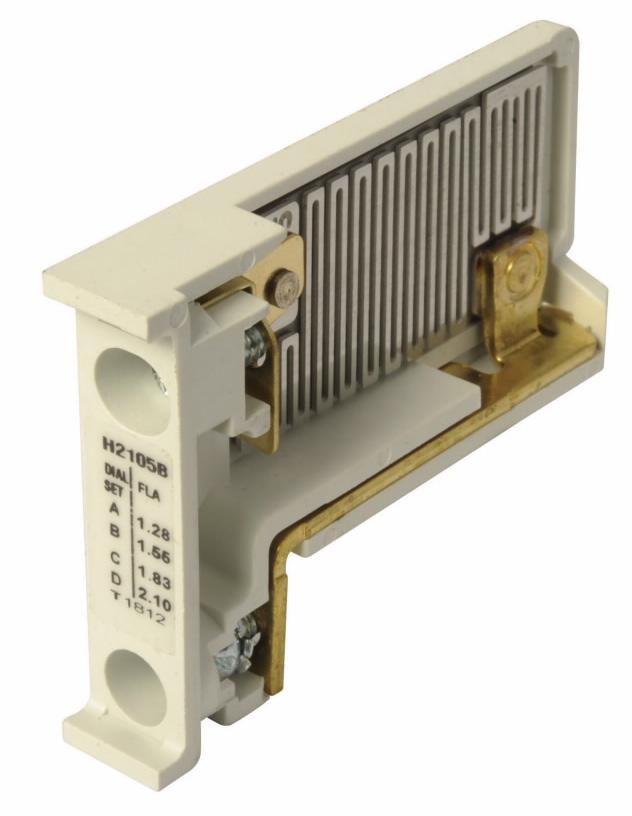

Eaton H2105B-3 Freedom NEMA heater coil

Product Description

The Eaton H2105B-3 Freedom NEMA heater coil is a Freedom/Definite Purpose Heater Pack with Fast Trip, Class 10, NEMA, and IEC compliance. It features a full load range of 1.28A, 1.55A, 1.83A, and 2.1A at dial positions A, B, C, and D respectively, and an overload relay of 32 or 75A. It is suitable for use with thermal overload relays, magnetic motor starters and motor controls.

• Fast Trip, Class 10
• Full load current range: 1.28A 1.55A 1.83A 2.1A
• Overload relay 32 or 75A

Product Highlights

The Eaton H2105B-3 heater coil is designed for use with starter sizes 00-0 (Series C), Sizes 1-2, 5-8 (Series B), IEC Sizes A-F (Series C), IEC Sizes G-K (Series B), IEC Sizes P-X, Z.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: H2105B-3
• Country of Origin: United States

Technical Specifications

• Product Name: Eaton Freedom NEMA heater coil
• Catalog Number: H2105B-3
• UPC: 782113004761
• Product Length/Depth: 1.7 in
• Product Height: 3.2 in
• Product Width: 1.8 in
• Certifications: UL Listed CSA Certified
• Product Type: Heater coil
• Design: NEMA, IEC
• Full load current range: 1.28A 1.55A 1.83A 2.1A Dial positions A B C D respectively
• Overload relay: 32 or 75A
• Special features: Used with starter sizes 00-0 (Series C), Sizes 1-2, 5-8 (Series B), IEC Sizes A-F (Series C), IEC Sizes G-K (Series B), IEC Sizes P-X, Z
• Trip Type: Fast Trip, Class 10
• Type: Freedom/Definite Purpose Heater Pack
• Used with: Used with starter sizes 00-0 (Series C), Sizes 1-2, 5-8 (Series B), IEC Sizes A-F (Series C), IEC Sizes G-K (Series B), IEC Sizes P-X, Z
• Manufacturer: Eaton Cutler-Hammer
• Family: Freedom Series
• Amp: 2.1
• Category: Heater Element
• fullLoadAmpsMin: 1.28
• fullLoadAmpsMax: 2.1
• Dimensions (HxWxD): 3.2" x 1.8" x 1.7"
• Brand: Eaton - Cutler Hammer
• Manufacturer Part Number: H2105B-3
• Numeric ID: 4388640
• Model: H2105B-3
• Country of Origin: United States
• Condition: New
