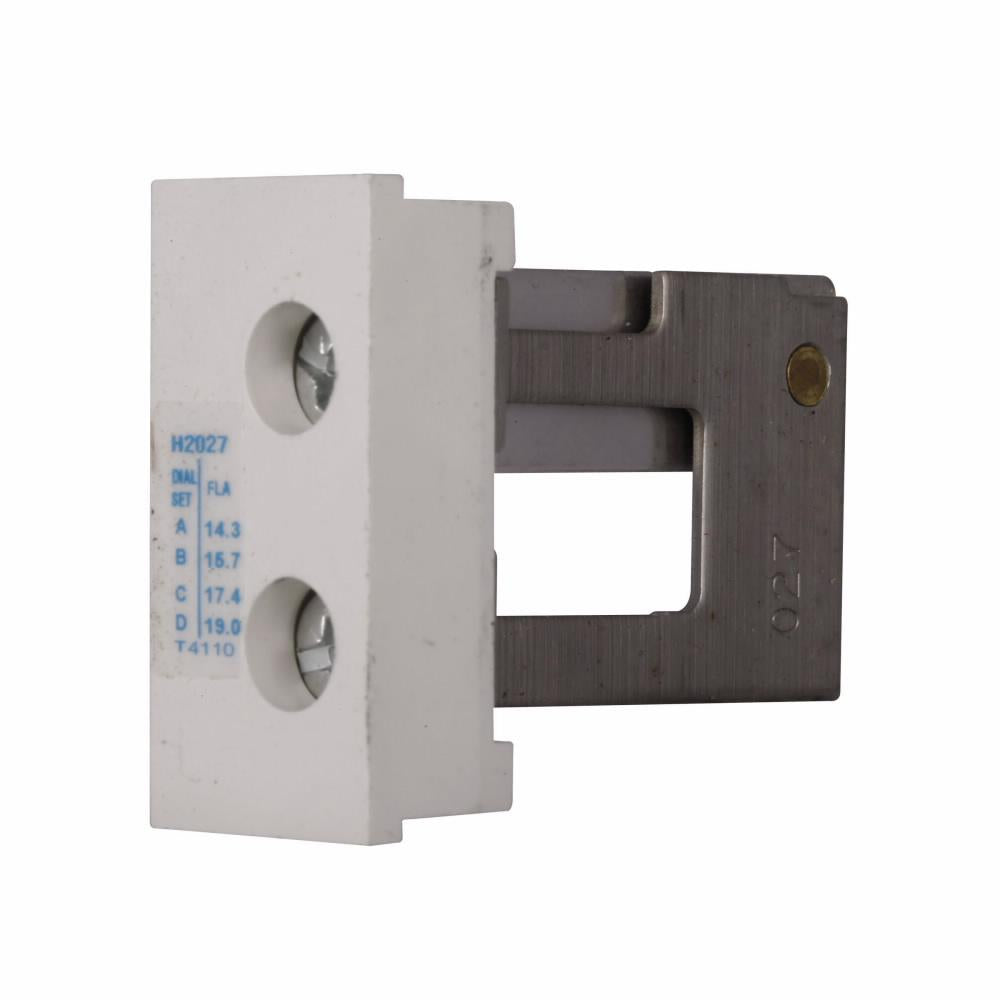

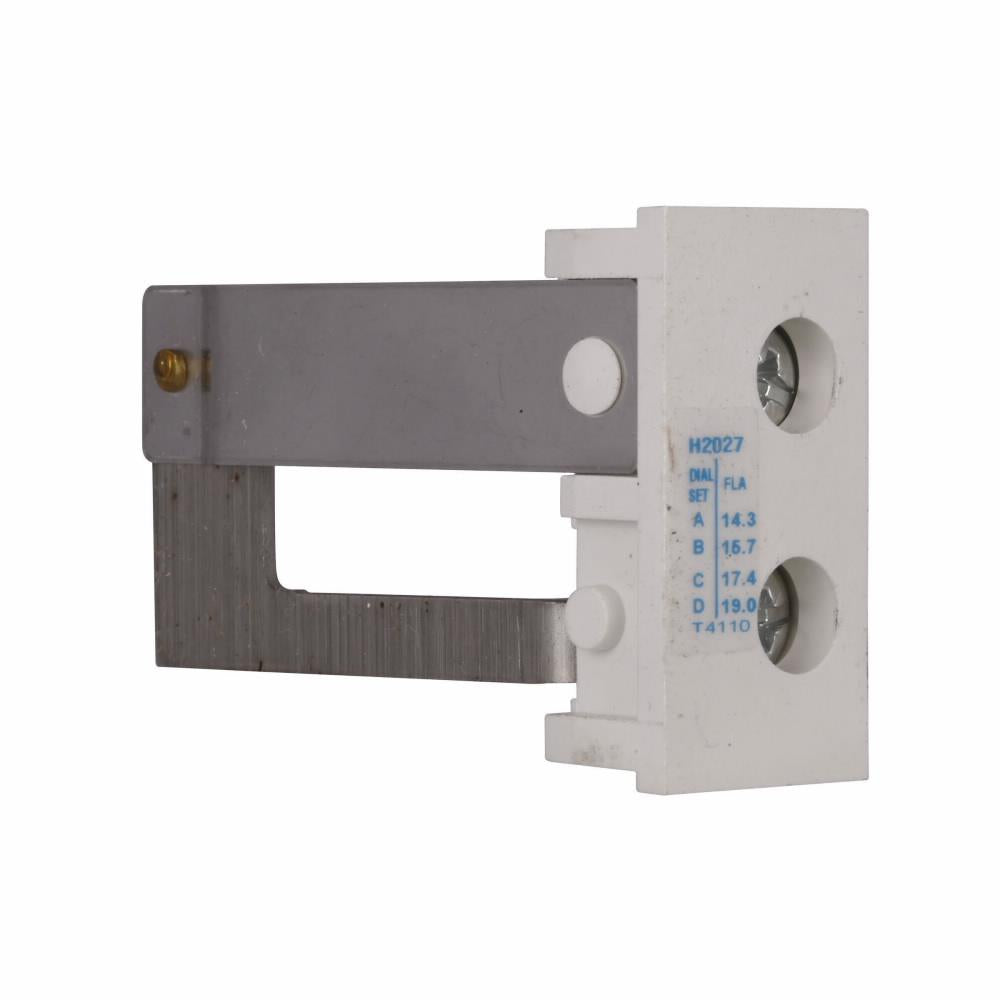

Eaton H2027-3 Freedom Definite Purpose Heater Coil Pack

Product Description

The EATON H2027-3 C306 overload relays are designed for use with CE or CN non-reversing and reversing contactors. Four sizes are available for overload protection up to 144 A. It has a full load current of 14.3 to 19 A and NEMA 3/4 enclosure.

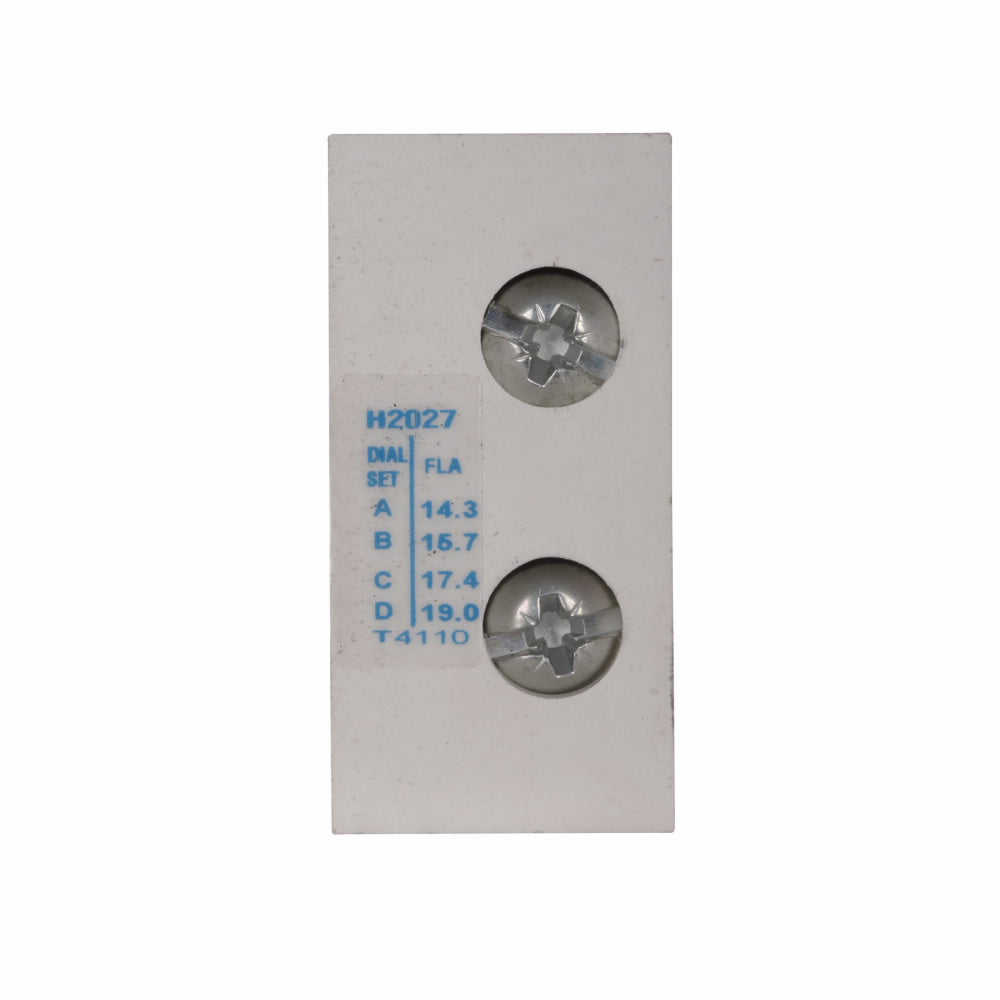

• 14.3 A at dial positions A, 15.7 A at dial positions B, 17.4 A at dial positions C, 19 A at dial positions D full load current
• 105 or 144 A overload relay
• For use with sizes 3-4, series A IEC sizes L-N starter

Product Highlights

The EATON Freedom definite purpose heater coil pack is for overload protection up to 144 A.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: H2027-3
• Country of Origin: United States

Technical Specifications

• Enclosure Type: NEMA 3/4
• Full Load Current: 14.3 to 19 A
• Series: Freedom
• Trip Type: Class 20/Standard
• Type: Definite Purpose
• Product Length/Depth: 2.4 in
• Product Height: 3.2 in
• Product Width: 2.1 in
• Certifications: UL Listed CSA Certified
• Product Type: Heater coil
• Design: NEMA, IEC
• Full load current range: 14.3A 15.7A 17.4A 19A Dial positions A B C D respectively
• Overload relay: 105 or 144A
• Special features: Used with starter sizes 3-4, IEC Sizes L-N (Series A)
• Used with: Used with starter sizes 3-4, IEC Sizes L-N (Series A)
• Brand: CUTLER HAMMER
• Model: H20273
• MPN: H2027-3
• Country of Origin: United States
• Application: For use with sizes 3-4, series A IEC sizes L-N starter
• Standard & Approvals: UL Listed, CSA, IEC Certified
• Catalog ID: C-HH2027-3
• Full Load Current Rating: 14.3 to 19 A
