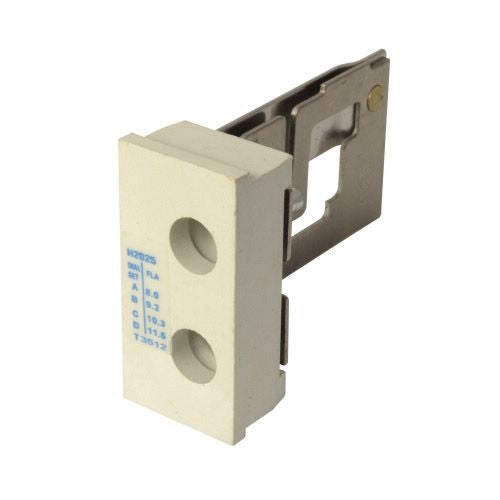

Eaton H2025-3 Freedom NEMA Heater Coil 8-11.5A

Product Description

The Eaton H2025-3 Freedom NEMA heater coil is a standard trip, Class 20 heater pack designed for NEMA and IEC applications. It supports a full load current range of 8A to 11.5A across dial positions A, B, C, and D, respectively, and is compatible with starter sizes 3-4 and IEC Sizes L-N (Series A).

• Standard Trip, Class 20
• NEMA and IEC compliant
• Full load range 8A 9.2A 10.3A 11.5A

Product Highlights

This heater coil is designed for overload protection up to 144 A and is suitable for use with sizes 3-4, series A IEC sizes L-N starter.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: H2025-3

Technical Specifications

• Product Name: Eaton Freedom NEMA heater coil
• Catalog Number: H2025-3
• UPC: 782114753477
• Product Length/Depth: 2.4 in
• Product Height: 3.2 in
• Product Width: 2.1 in
• Product Type: Heater coil
• Design: NEMA, IEC
• Full load current range: 8A 9.2A 10.3A 11.5A Dial positions A B C D respectively
• Overload relay: 105 or 144A
• Special features: Used with starter sizes 3-4, IEC Sizes L-N (Series A)
• Trip Type: Standard Trip, Class 20
• Type: Freedom Standard Trip Heater Pack
• Used with: Used with starter sizes 3-4, IEC Sizes L-N (Series A)
• Series: Freedom
• Standard & Approvals: UL Listed, CSA, IEC Certified
• Enclosure Type: NEMA 3/4
• Application: For use with sizes 3-4, series A IEC sizes L-N starter
• Full Load Current Rating: 8 to 11.5 A
• Operation Mode: Automatic
• Number of Items: 1
• UNSPSC: 39122330
• Mounting: Overload Relay
• Amps Range: 8 - 11.500
