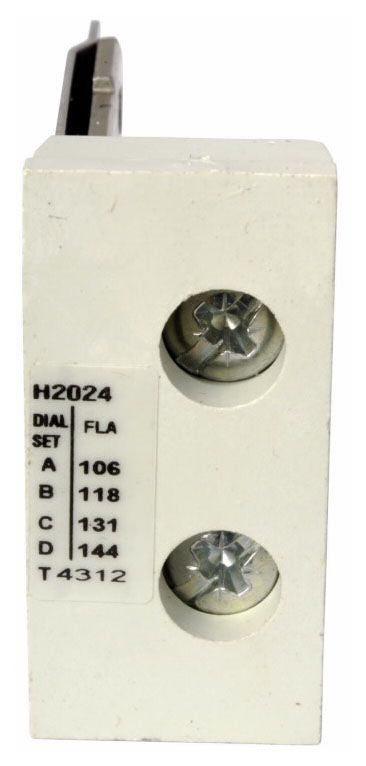

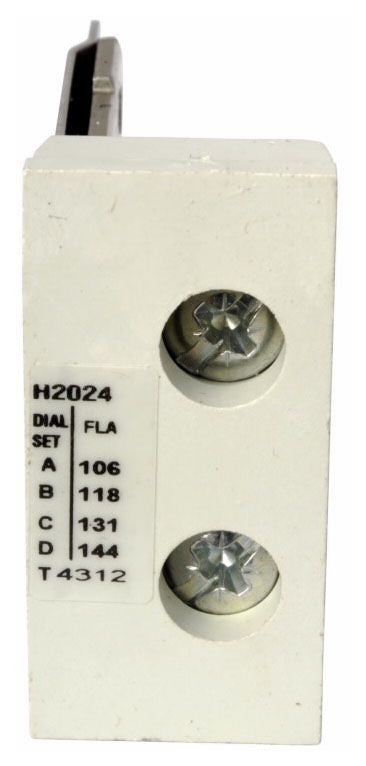

Eaton H2024-3 Overload Relay Heater Element 3 Pack

EATON
Brand: EATON
SKU: H2024-3
Availability: In Stock

Ships same day if ordered by 12 pm

%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E
$100.46
$100.46
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The EATON H2024-3 is a thermal overload relay heater element sold in a pack of three. It installs inside EATON overload relay blocks to protect motors and other electrical loads from sustained overcurrent and overheating conditions. When current through the circuit exceeds the rated threshold, the heater element generates enough heat to trip the relay, disconnecting the load before damage occurs. Licensed electricians and industrial maintenance technicians are the primary installers of this component in motor control center (MCC) and motor starter applications.

This heater element is used in commercial and industrial motor control applications. It fits into compatible EATON overload relay assemblies found in motor starters, combination starters, and control panel builds. Typical installations include HVAC fan motor circuits, pump motor starters, and conveyor or process equipment controls in light industrial and commercial settings.

Key Features

  • Sold as a pack of 3 heater elements
  • Thermal trip mechanism protects motors from sustained overcurrent
  • Compact form factor fits standard EATON overload relay blocks
  • Lightweight at 0.35 pounds per pack for easy handling and stocking

Compatibility

Designed as an OEM-style replacement heater element for compatible EATON overload relay blocks used in industrial and commercial motor starter assemblies.

Installation Notes

Installation should be performed by a licensed electrician in accordance with applicable NEC requirements. De-energize and lock out the motor control circuit completely before removing or installing heater elements. Verify the heater element rating matches the full-load amperage of the motor being protected before reinstalling the relay cover and restoring power.

Technical Specifications

  • Package Quantity: 3 per pack
  • Package Dimensions (L x W x H): 2.4 inches x 2.1 inches x 3.4 inches
  • Weight: 0.35 pounds
  • UPC: 78211362663

Standard Information

  • Brand: EATON
  • Manufacturer Part Number: H2024-3
