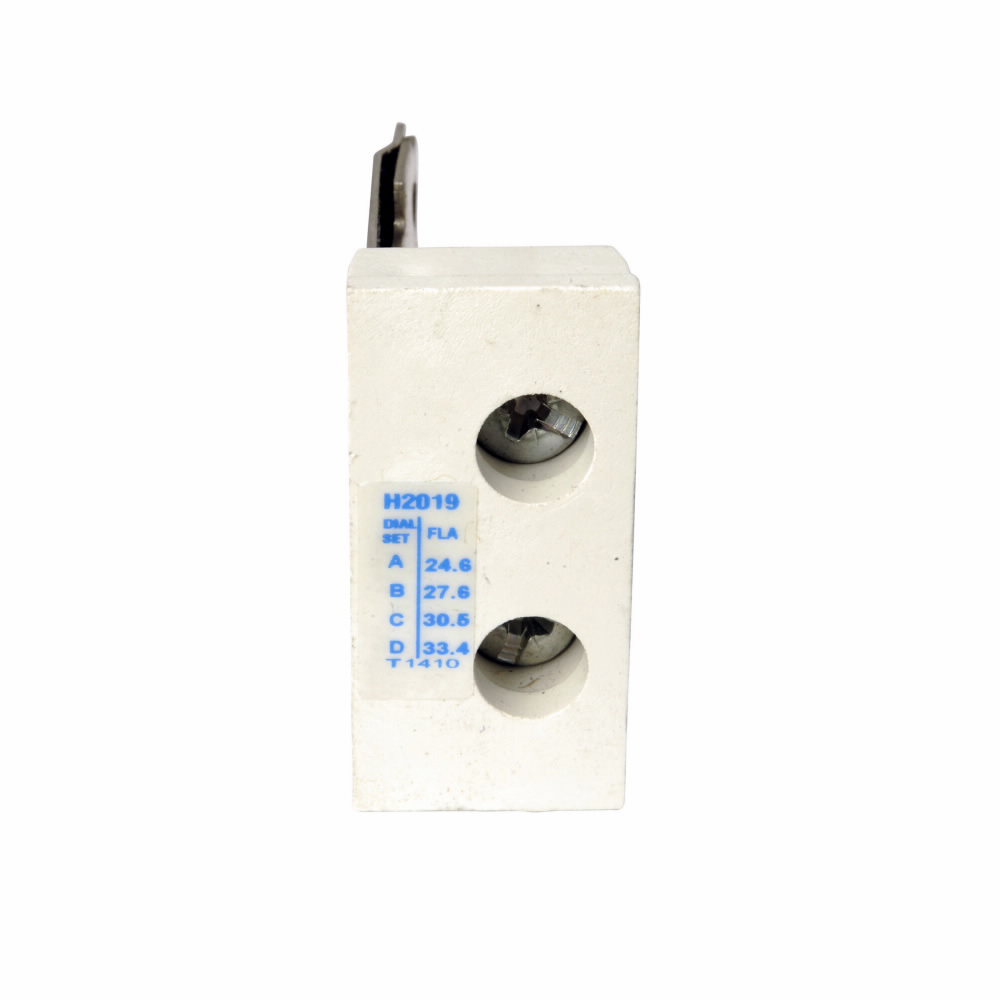

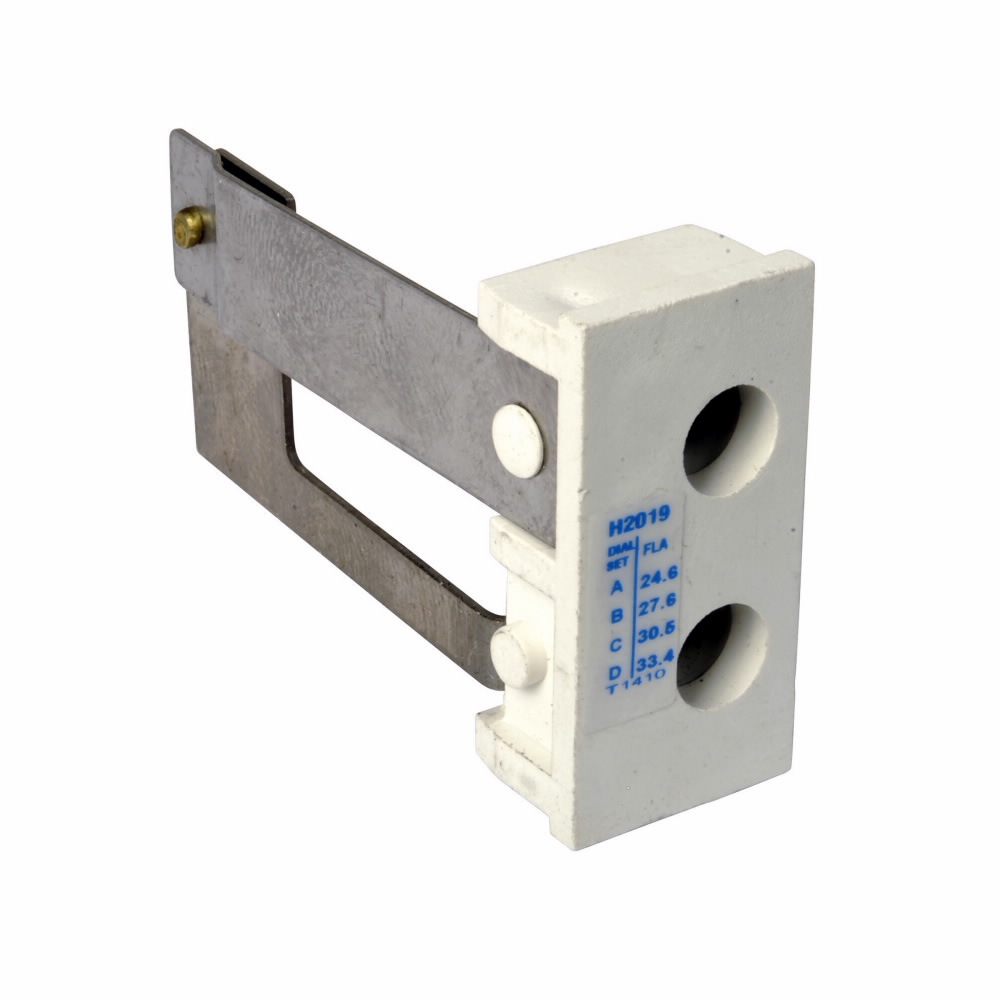

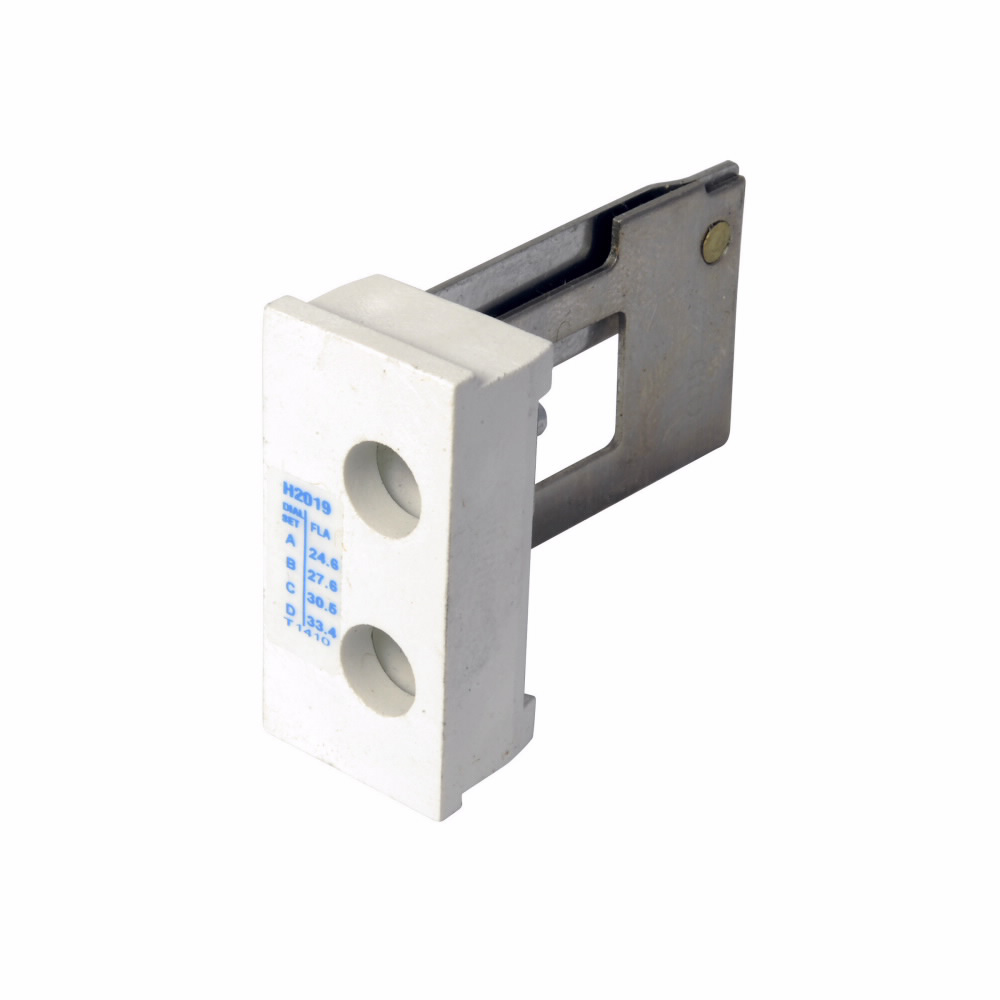

Eaton H2019-3 Freedom NEMA heater coil 24.6A 27.6A 30.5A 33.4A

Product Description

The EATON H2019-3 Freedom NEMA heater coil is a standard trip heater pack, Class 20, NEMA, and IEC compliant. It supports a full load range of 24.6A, 27.6A, 30.5A, and 33.4A at dial positions A, B, C, and D respectively, with an overload relay of 105 or 144A. It is designed for use with starter sizes 3-4 and IEC Sizes L-N (Series A).

• Standard Trip
• Class 20
• NEMA

Product Highlights

The EATON H2019-3 heater coil ensures reliable overload protection for motor starters, fitting NEMA sizes 3-4 and IEC sizes L-N.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: H2019-3
• Country of Origin: US

Technical Specifications

• SKU: H2019-3
• Product Name: Eaton Freedom NEMA heater coil
• Catalog Number: H2019-3
• UPC: 782113626581
• Product Length/Depth: 2.4 in
• Product Height: 3.3 in
• Product Width: 2.1 in
• Product Weight: 0.2 lb
• Certifications: UL Listed CSA Certified
• Product Type: Heater coil
• Design: NEMA, IEC
• Full load current range: 24.6A 27.6A 30.5A 33.4A Dial positions A B C D respectively
• Overload relay: 105 or 144A
• Special features: Used with starter sizes 3-4, IEC Sizes L-N (Series A)
• Trip Type: Standard Trip, Class 20
• Type: Freedom Standard Trip Heater Pack
• Used with: Used with starter sizes 3-4, IEC Sizes L-N (Series A)
• Brand: Eaton
• Series: Freedom
• Amperage: 24.6-33.4
• Poles: 3
• Approval: UL, CSA, IEC
• Protection: Thermal
• Length (in): 2.4
• Width (in): 2.1
• Height (in): 3.3
• For Use With: NEMA Size 3-4 IEC Size L-N, 105A or 144A Freedom Series Motor Starters
• Standards: NEMA
• Nema Size: 3, 4
• Mpn: H2019-3
• Manufacturer: Eaton
• Manufacturer Part Number: H2019-3
• Approvals: IEC
• Comments: Class 20
• Net Weight: 0.2 lbs
• Gross Weight: 0.2 lbs
• Model: FREEDOM SERIES
• Current Type: 33.4A
• Category: Business & Industrial
• Full Load Current Rating: 24.6 to 33.4 A
• Standard & Approvals: UL Listed, CSA, IEC Certified
• Enclosure Type: NEMA 3/4
• Application: For use with sizes 3-4, series A IEC sizes L-N starter
• Suitable For Use With: Freedom 105A or 144A Series Overload Relays
• Full Load Current: 24.6 - 33.4 A
• Dimensions: 2.4 Inch L
• 12-Digit UPC: 782113626581
• GTiN: 00782113626581
• Product UPC: 78211362658
• Weight: .2 lb
