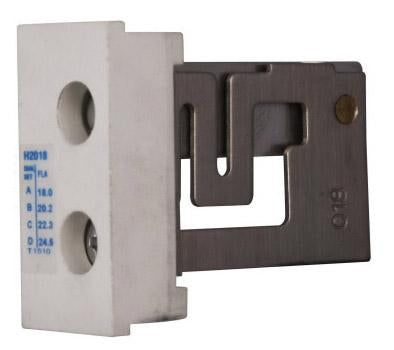

Eaton H2018-3 Freedom NEMA heater coil

Product Description

The Eaton H2018-3 Freedom NEMA heater coil is a standard trip, Class 20 heater pack. It is NEMA and IEC compliant, with a full load range of 18A, 20.2A, 22.3A, and 24.5A at dial positions A, B, C, and D respectively, and an overload relay of 105 or 144A. It is used with starter sizes 3-4 and IEC sizes L-N (Series A).

• Standard Trip
• Class 20
• NEMA, IEC compliant

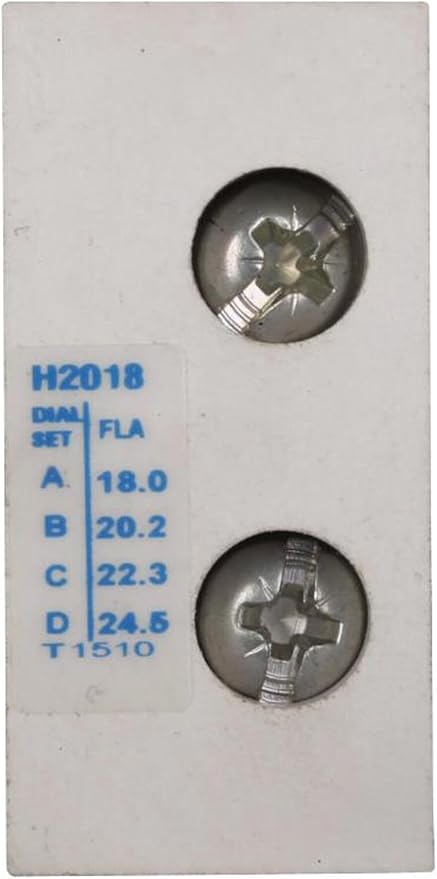

• Full load range 18A 20.2A 22.3A 24.5A Dial positions A B C D respectively

Product Highlights

The Eaton H2018-3 heater coil is for use with starter sizes 3-4 and IEC sizes L-N (Series A).

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: H2018-3
• Country of Origin: United States

Technical Specifications

• Catalog Number: H2018-3
• Product Length/Depth: 3.4 in
• Product Height: 1.9 in
• Product Width: 2.4 in
• Certifications: CSA Certified UL Listed
• Product Type: Heater coil
• Design: NEMA, IEC
• Full load current range: 18A 20.2A 22.3A 24.5A Dial positions A B C D respectively
• Overload relay: 105 or 144A
• Special features: Used with starter sizes 3-4, IEC Sizes L-N (Series A)
• Trip Type: Standard Trip, Class 20
• Type: Freedom Standard Trip Heater Pack
• Used with: Used with starter sizes 3-4, IEC Sizes L-N (Series A)
• Series: Freedom
• Poles: 3
• Approval: UL, CSA
• For Use With: Starter Sizes 3-4, IEC Sizes L-N, 105/144 Amp Overload Relays
• Nema Size: 3, 4
• Manufacturer: Eaton Cutler-Hammer
• Family: Freedom Series
• Category: Heater Element
• fullLoadAmpsMin: 18
• fullLoadAmpsMax: 24.5
• Amps: 24.500
• Amps Range: 18 - 24.500
• Current Rating: 24.5A
