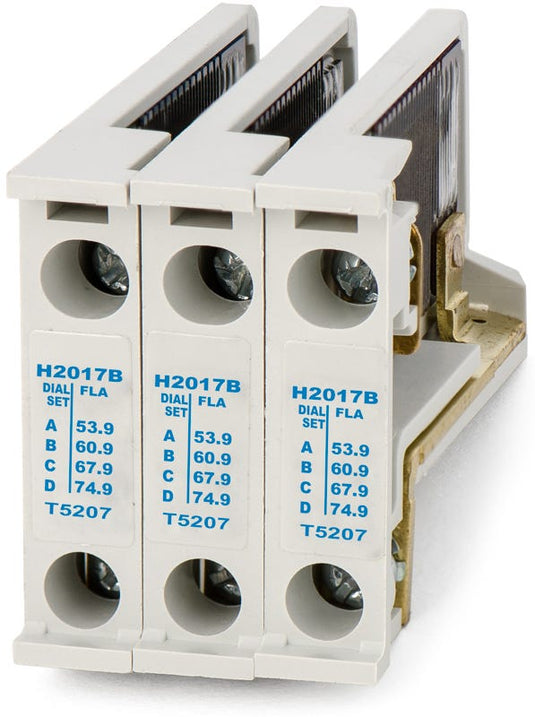

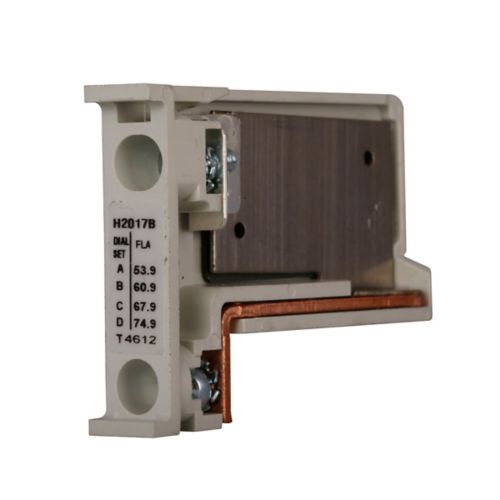

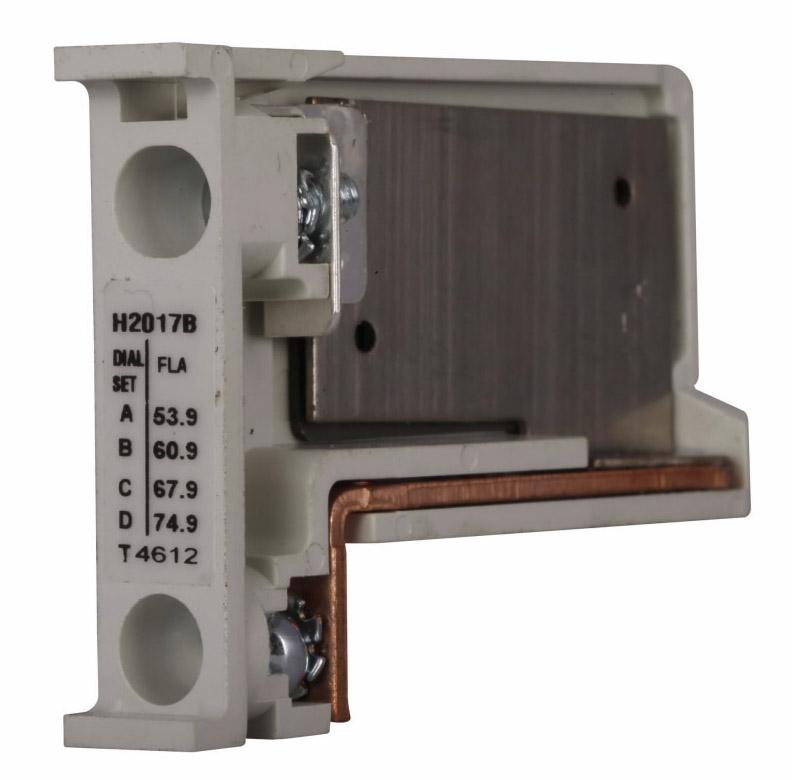

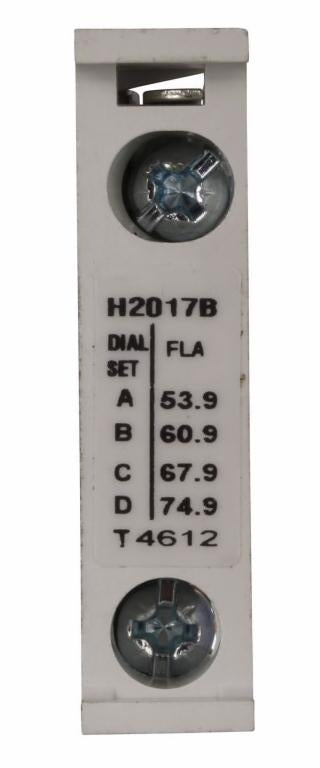

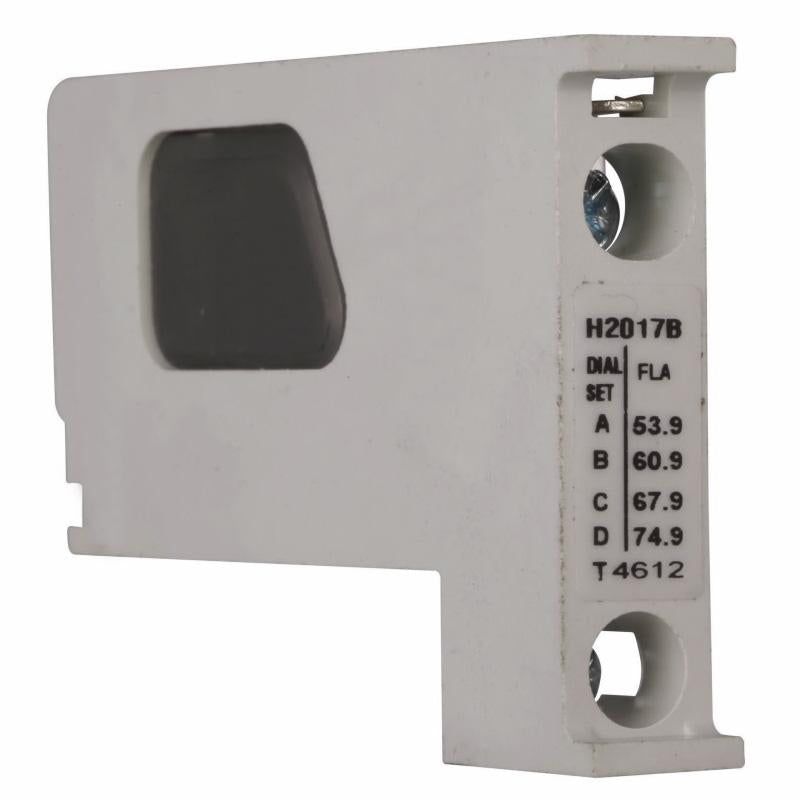

Eaton H2017B-3 Freedom nema heater coil 3 pack

Product Description

The Eaton H2017B-3 Freedom NEMA heater coil is a Freedom/Definite Purpose Heater Pack, designed for standard trip, Class 20, NEMA, and IEC applications. It supports a full load range of 53.9A to 74.9A across dial positions A, B, C, and D, respectively, and is compatible with a 75A overload relay. This heater coil is used with starter size 2, IEC Sizes G-K (Series B).

• Standard Trip, Class 20
• Full load current range: 53.9A 60.9A 67.9A 74.9A
• Used with starter size 2, IEC Sizes G-K (Series B)

Product Highlights

The Eaton H2017B-3 heater coil ensures reliable overload protection in motor starter applications, with a standard trip design and compatibility with various starter sizes.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: H2017B-3
• Country of Origin: Dominican Republic

Technical Specifications

• Catalog Number: H2017B-3
• Product Length/Depth: 3.4 in
• Product Height: 1.8 in
• Product Width: 1.9 in
• Certifications: UL Listed CSA Certified
• Product Type: Heater coil
• Design: NEMA, IEC
• Full load current range: 53.9A 60.9A 67.9A 74.9A Dial positions A B C D respectively
• Overload relay: 75A
• Special features: Used with starter size 2, IEC Sizes G-K (Series B)
• Trip Type: Standard Trip, Class 20
• Type: Freedom/Definite Purpose Heater Pack
• Used with: Used with starter size 2, IEC Sizes G-K (Series B)
• Brand: Eaton/Cutler-Hammer
• Series: H
• Breaker Feature: Standard Trip
• Nema Size: 2
• Mpn: H2017B-3
• Upc: 782113967639
• Gtin: 782113967639
• Manufacturer: Eaton Cutler-Hammer
• Family: Freedom Series
• Category: Heater Element
• fullLoadAmpsMin: 53.9
• fullLoadAmpsMax: 74.9
• Compatible with Series: Freedom
• Full Load Current: 53.9 to 74.9
• Trip Class: 20
• Compatible Frame Size: G; H; J; K
• Overload Protection Type: Thermal
• UNSPSC: 39121521
