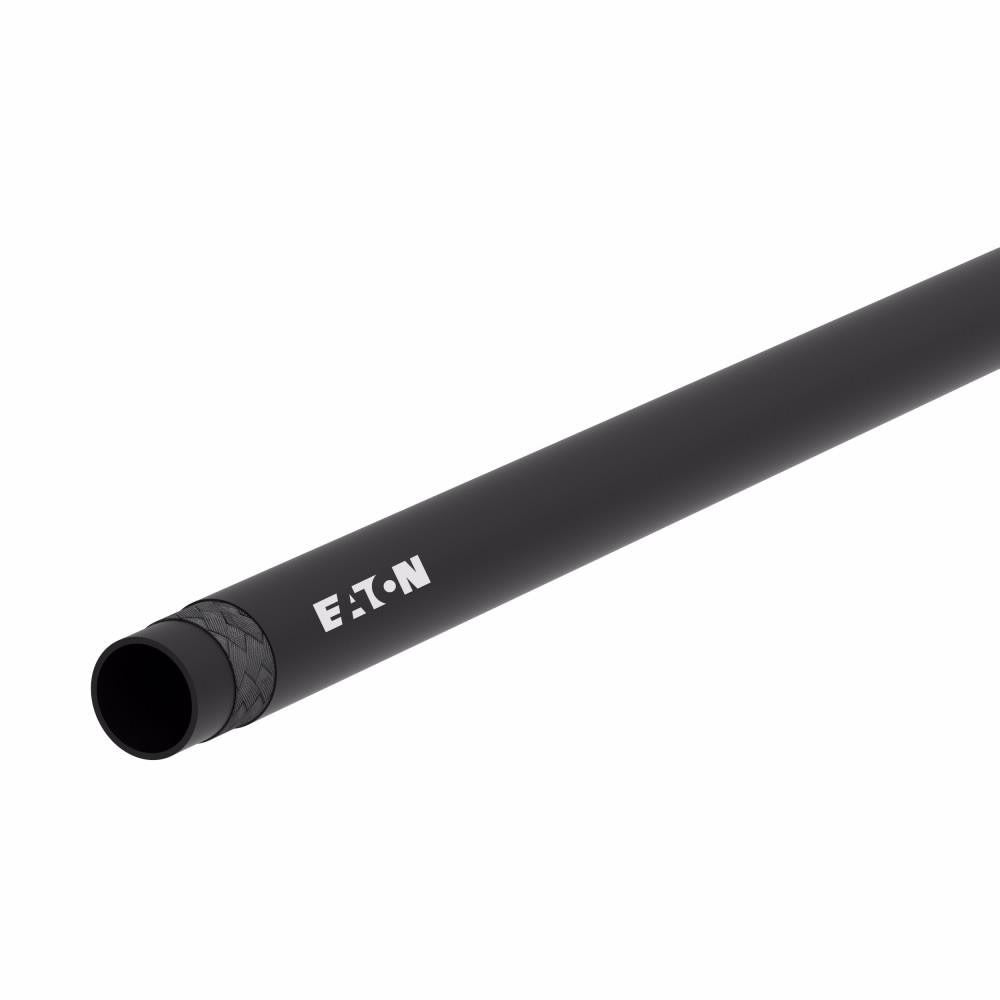

Eaton H20108BK-500R Hydraulic Hose 0.5 in Id 1200 Psi 500 Ft

Product Description

The EATON H20108BK-500R is a black nitrile hydraulic hose rated for 1200 psi maximum working pressure, supplied as a 500-foot coil priced and cut in 1-foot increments with a 25-foot minimum cut length. Built on the EATON H201 series platform, this hose features a 0.5-inch inner diameter and a 0.75-inch outer diameter, making it a compact yet capable solution for medium-pressure hydraulic circuits. The nitrile construction resists petroleum-based hydraulic fluids across a wide service temperature range of -40 degrees F to 212 degrees F. Licensed hydraulic technicians and fluid power specialists install this hose in both mobile and stationary hydraulic systems.

This hose is suited for industrial and mobile equipment hydraulic applications where a flexible, petroleum-fluid-compatible line is required. The 5-inch minimum bend radius allows routing through tight equipment envelopes without kinking. Typical installations include hydraulic power units, lift equipment, construction machinery, and agricultural implements operating within the 1200 psi pressure rating. The coil format is well suited to shops and service fleets that cut to length on demand, reducing waste and stocking overhead.

Key Features

• 1200 psi maximum working pressure for medium-pressure hydraulic circuits
• Nitrile hose material resists petroleum-based hydraulic fluids and oils
• Wide temperature range: -40 degrees F to 212 degrees F
• 5-inch minimum bend radius for routing in tight spaces
• MSHA Approved and meets MSHA IC-46/6 and RMA Class A standards
• 500-foot coil priced per foot with 25-foot minimum cut length for flexible purchasing

Compatibility

Designed as an OEM-style replacement or new-installation hydraulic hose for medium-pressure fluid power systems compatible with petroleum-based hydraulic fluids; verify inner diameter, outer diameter, pressure rating, and end fitting compatibility before installation.

Installation Notes

Installation should be performed by a qualified hydraulic technician or fluid power specialist. Depressurize and lock out the hydraulic system completely before cutting, routing, or connecting this hose. Use proper hydraulic hose cutting tools to achieve a clean, square cut end, and install rated end fittings per the fitting manufacturer's assembly instructions. Do not exceed the 1200 psi maximum working pressure or the 5-inch minimum bend radius during routing.
