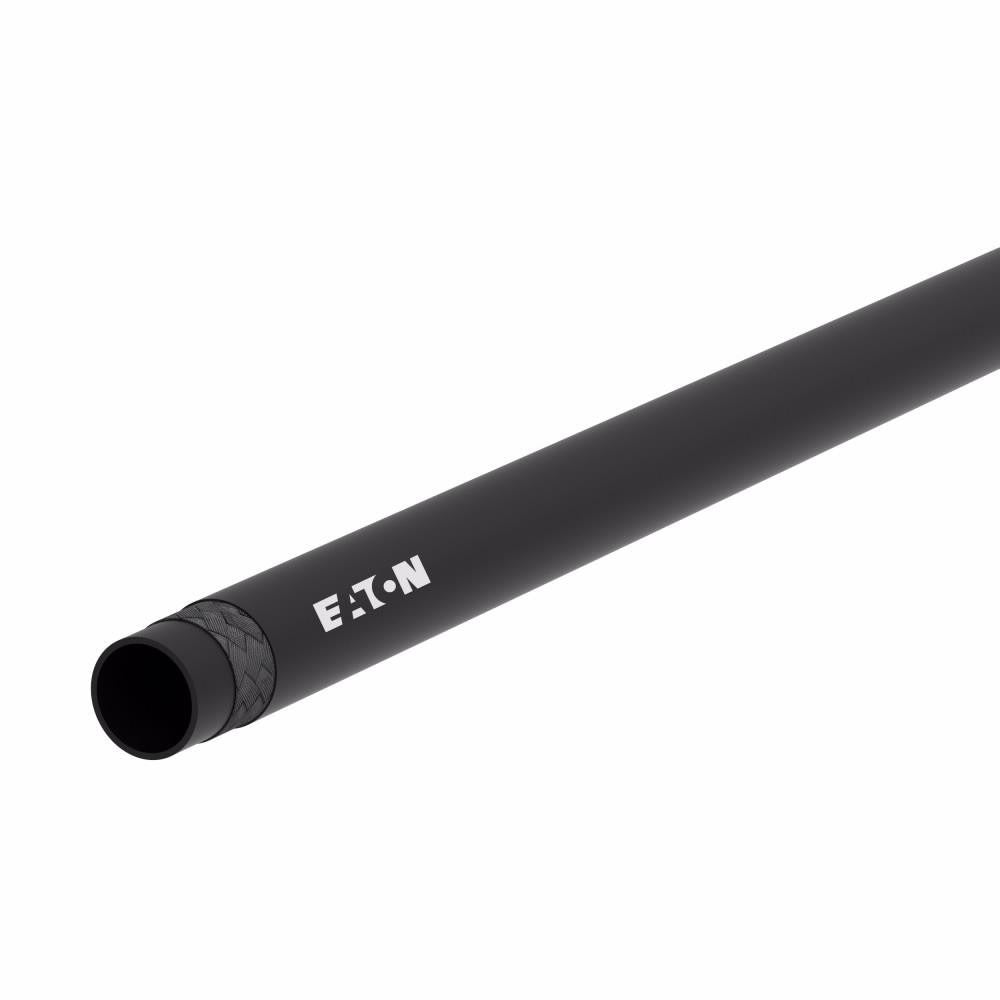

Eaton H20104BK-500R Hydraulic Hose 1200 Psi 500 Ft Nitrile

Product Description

The EATON H20104BK-500R is a bulk-coil hydraulic hose designed for medium-pressure fluid transfer in industrial and mobile hydraulic systems. It features a 0.25 inch inner diameter and a 0.5 inch outer diameter, with a maximum working pressure of 1200 psi. The hose is constructed from nitrile, making it well-suited for petroleum-based hydraulic fluid service. It is rated for temperatures from -40 degrees F to 212 degrees F and is supplied in a 500 ft coil, priced and cut in 1 ft increments with a 25 ft minimum cut length. Installation is handled by hydraulic technicians and maintenance mechanics working on industrial machinery, mobile equipment, and fluid power systems.

This hose is appropriate for use in both industrial plant and mobile equipment hydraulic circuits requiring a compact, flexible line. The 3 inch minimum bend radius allows routing in tight spaces. The black nitrile construction resists petroleum-based fluids and provides flexibility across a wide service temperature range. It is sold from a 500 ft coil, making it practical for shops and distributors that cut hose assemblies to length on demand. Minimum order quantity is 25 ft per cut.

Key Features

• 1200 psi maximum working pressure for medium-pressure hydraulic circuits
• Nitrile hose material with compatibility for petroleum-based hydraulic fluids
• Wide service temperature range: -40 degrees F to 212 degrees F
• 3 inch minimum bend radius for routing in confined spaces
• 500 ft coil with 1 ft increment pricing and 25 ft minimum cut length
• MSHA Approved, MSHA IC-46/6, and RMA Class A rated

Compatibility

Designed as an OEM-style bulk hydraulic hose for medium-pressure fluid power applications in industrial and mobile hydraulic systems using petroleum-based hydraulic fluids.

Installation Notes

Hydraulic hose installation should be performed by a qualified hydraulic technician or fluid power mechanic. Always depressurize and bleed down the hydraulic system fully before cutting, connecting, or replacing hose sections. Use proper ferrule and crimp fittings rated for the system working pressure and ensure fittings are compatible with the hose inner diameter and series. Inspect hose routing to maintain the 3 inch minimum bend radius and avoid contact with sharp edges or heat sources.
