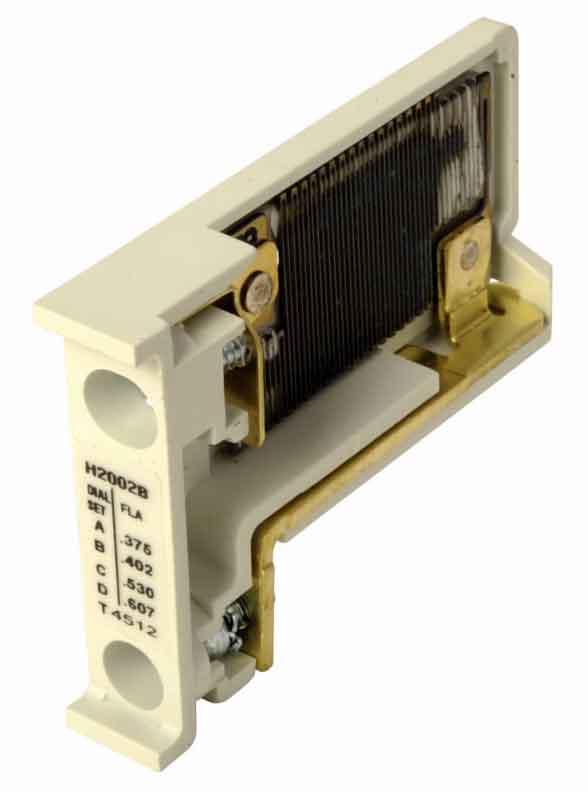

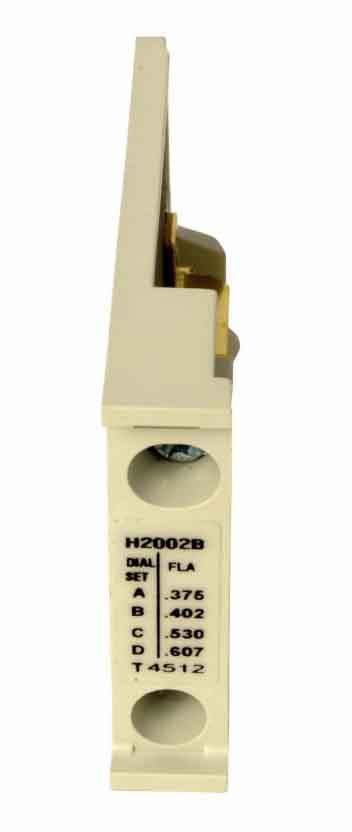

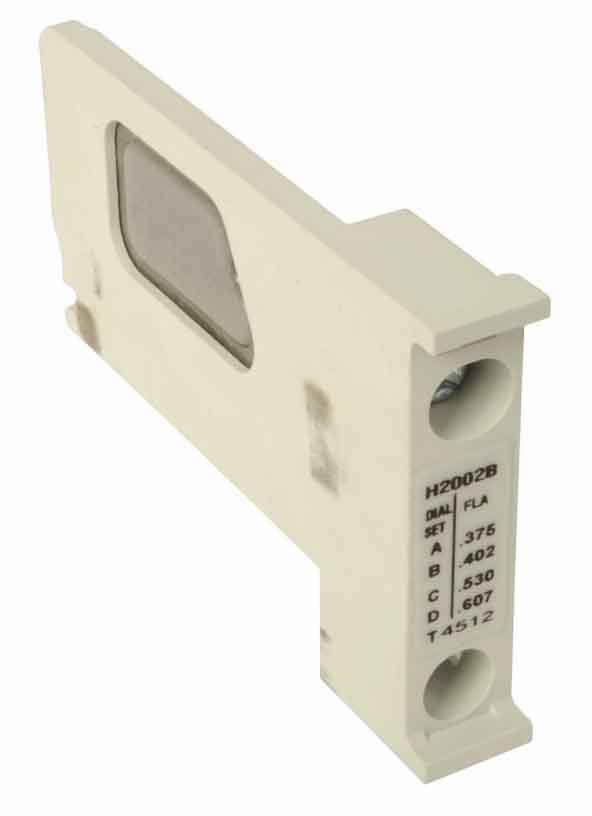

Eaton H2002B-3 Freedom NEMA Heater Coil 0.375-0.607A

Product Description

The Eaton H2002B-3 Freedom NEMA heater coil is a Freedom/Definite Purpose Heater Pack with standard trip, Class 20, NEMA, and IEC design. It features a full load current range of 0.375A to 0.607A with dial positions A, B, C, and D respectively, and an overload relay of 32 or 75A. It is used with starter sizes 00-0 (Series C), Sizes 1-2 (Series B), IEC Sizes A-F (Series C), IEC Sizes G-K (Series B).

• Freedom/Definite Purpose Heater Pack
• Standard Trip, Class 20
• Full load current range: 0.375A 0.452A 0.53A 0.607A

Product Highlights

The Eaton H2002B-3 heater coil is designed for overload protection in motor starters, ensuring reliable operation and preventing damage from overcurrent conditions.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: H2002B-3
• Country of Origin: United States

Technical Specifications

• Product Name: Eaton Freedom NEMA heater coil
• Catalog Number: H2002B-3
• UPC: 782113967486
• Product Length/Depth: 1.8 in
• Product Height: 3.3 in
• Product Width: 1.7 in
• Certifications: CSA Certified UL Listed
• Product Type: Heater coil
• Design: NEMA, IEC
• Full load current range: 0.375A 0.452A 0.53A 0.607A Dial positions A B C D respectively
• Overload relay: 32 or 75A
• Special features: Used with starter sizes 00-0 (Series C), Sizes 1-2 (Series B), IEC Sizes A-F (Series C), IEC Sizes G-K (Series B)
• Trip Type: Standard Trip, Class 20
• Type: Freedom/Definite Purpose Heater Pack
• Used with: Used with starter sizes 00-0 (Series C), Sizes 1-2 (Series B), IEC Sizes A-F (Series C), IEC Sizes G-K (Series B)
• Manufacturer: Eaton Cutler-Hammer
• Family: Freedom Series
• Category: Heater Element
• fullLoadAmpsMin: 0.38
• fullLoadAmpsMax: 0.61
• Dimensions (HxWxD): 3.3" x 1.7" x 1.8"
• Brand: Eaton
• Product Brand: EATON
• Product Condition: NEW
• Model: H2002B-3
• MPN: H2002B-3
• Reference SKU: 1692637
• Model Number: H2002B-3
• Country of Origin: United States
