Product Description

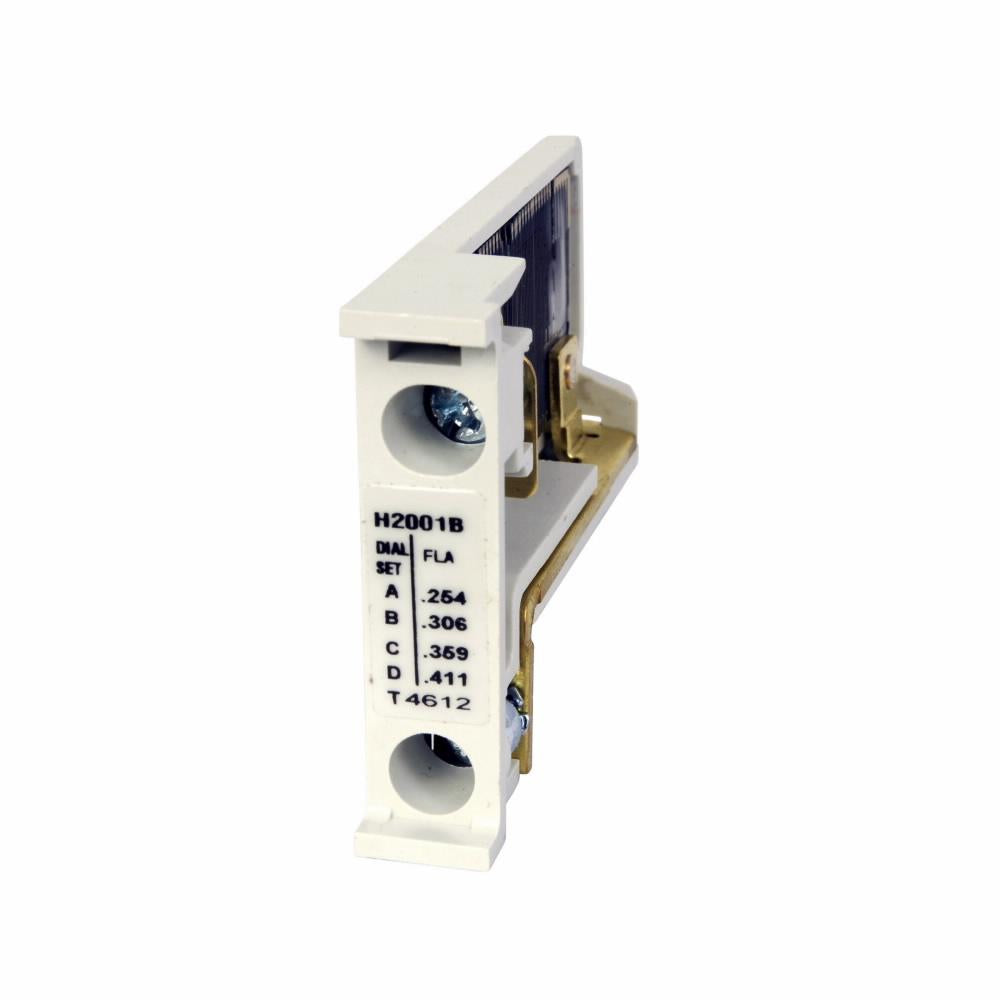

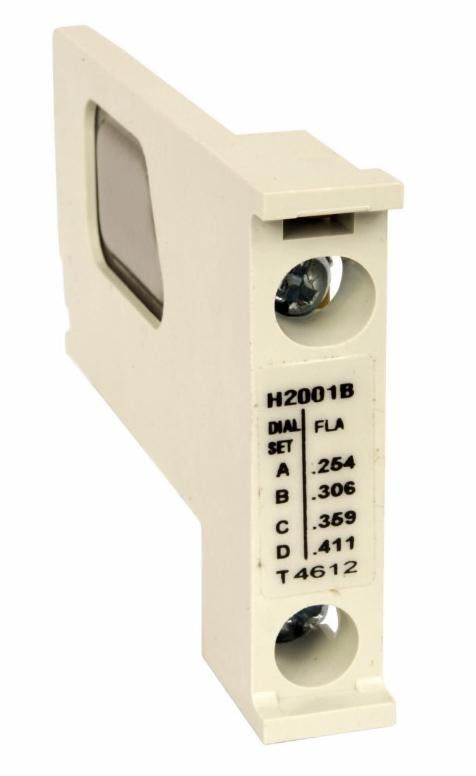

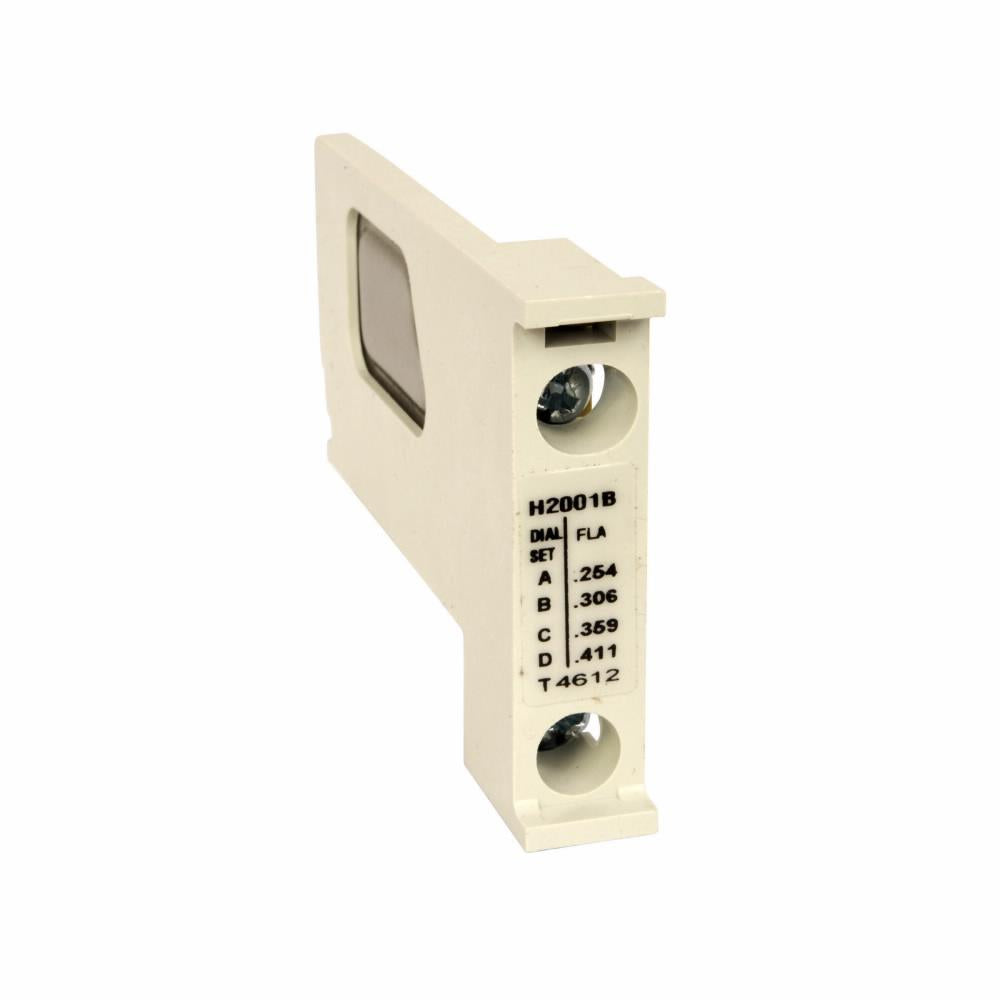

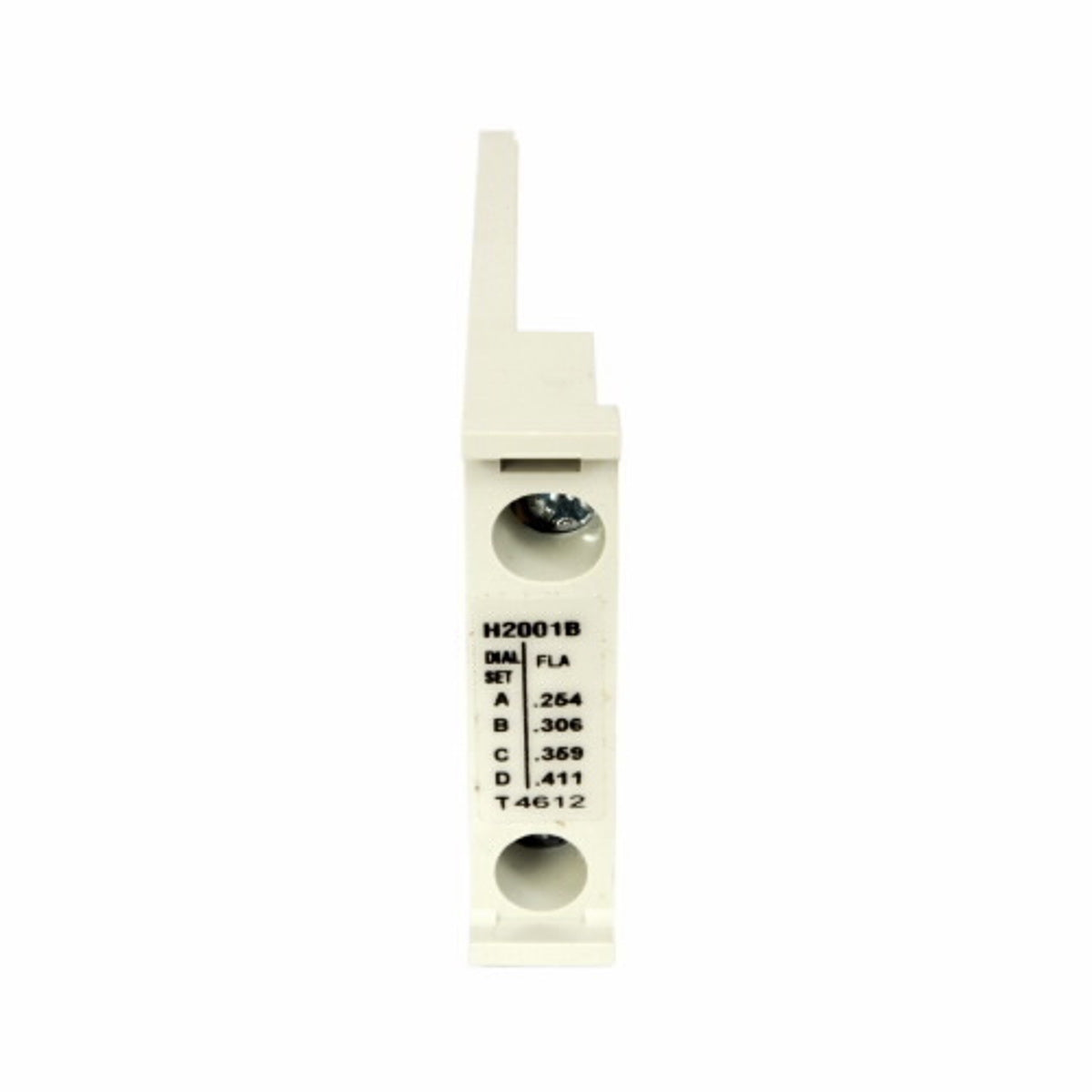

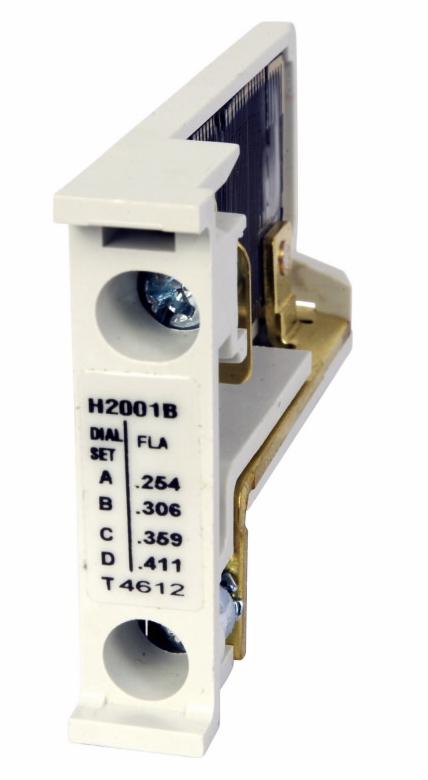

The EATON H2001B-3 is a Freedom NEMA heater coil, also known as a Freedom/Definite Purpose Heater Pack, designed with a Standard Trip and Class 20. It is compatible with NEMA and IEC standards, with a full load range of 0.254A to 0.411A at dial positions A, B, C, and D respectively, and an overload relay of 32 or 75A.
- Full load current: 0.254 A at dial positions A, 0.306 A at dial positions B, 0.359 A at dial positions C, 0.411 A at dial positions D
- Suitable for use with thermal overload relays, magnetic motor starters and motor controls
- Used with starter sizes 00-0 (Series C), Sizes 1-2 (Series B), IEC Sizes A-F (Series C), IEC Sizes G-K (Series B)
Product Highlights
This heater coil is designed for overload protection up to 144 A and is suitable for industrial facilities and factories.
Product Information
Standard Information
-
Brand: EATON
-
Manufacturer Part Number: H2001B-3
-
Country of Origin: Dominican Republic
Technical Specifications
-
Catalog Number: H2001B-3
-
Manufacturer: Eaton
-
Brand: Eaton
-
Country of Origin: Dominican Republic
-
Made in USA: No
-
Application: Ind Facilities & Factories - Facility - Other
-
Special Features: Used with starter sizes 00-0 (Series C), Sizes 1-2 (Series B), IEC Sizes A-F (Series C), IEC Sizes G-K (Series B)
-
Standard: CSA Certified,UL Listed
-
UPC: 782113967479
-
GTIN: 00782113967479
-
Item Type: Heater coil
-
Trip Type: Standard Trip, Class 20
-
Enclosure Type: NEMA 00/0/1/2
-
Full Load Current: 0.254 to 0.411 A
-
Series: Freedom
-
Full Load Range: 0.254A 0.306A 0.359A 0.411A
-
Class: Class 20
-
Type: Standard Trip
-
Amperage: 0.25-0.41
-
Approval: UL, CSA, IEC
-
Protection: Thermal
-
For Use With: Starter Sizes 00-0 (Series C), Sizes 1-2 (Series B), IEC Sizes A-F (Series C), IEC Sizes G-K (Series B), Thermal Overload Relays, Magnetic Motor Starters and Motor Controls
-
Standards: NEMA
