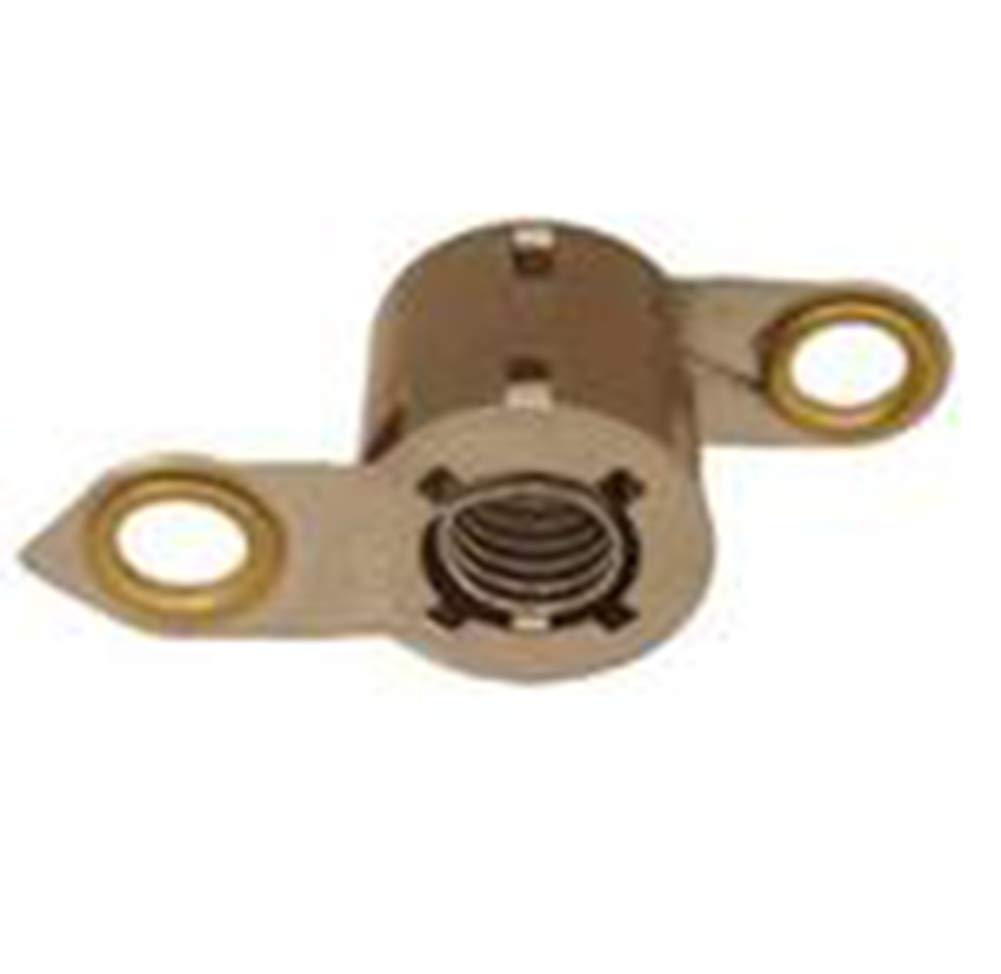

Eaton H1026 Overload Relay Heater Citation

Product Description

The Eaton H1026 is a starter overload relay heater designed for citation series. It is a replacement overload relay heater element for ST Series. The heater coil is used with Citation Controls and suitable for motors with a 1.15 service factor.

• Replacement Overload Relay Heater Element for ST Series
• Used with Citation Controls
• For motors with 1.15 service factor

Product Highlights

The Eaton H1026 heater coil is designed for use with citation controls and as a replacement for ST series overload relays.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: H1026

Technical Specifications

• Family / Style: Citation
• Type: Heater Coil
• Product Name: Eaton Freedom NEMA heater coil
• Catalog Number: H1026
• UPC: 782113212609
• Product Length/Depth: 2 in
• Product Height: 0.8 in
• Product Width: 1.3 in
• Special features: Used with Citation Controls
• Brand: Eaton - Cutler Hammer
• Manufacturer Part Number: H1026
• Catalog ID: C-HH1026
• Enclosure Type: NEMA 00/0/1/1.5/5/6/7/8
• Full Load Current Rating: 2.86 to 369 A
• Trip Type: Standard
