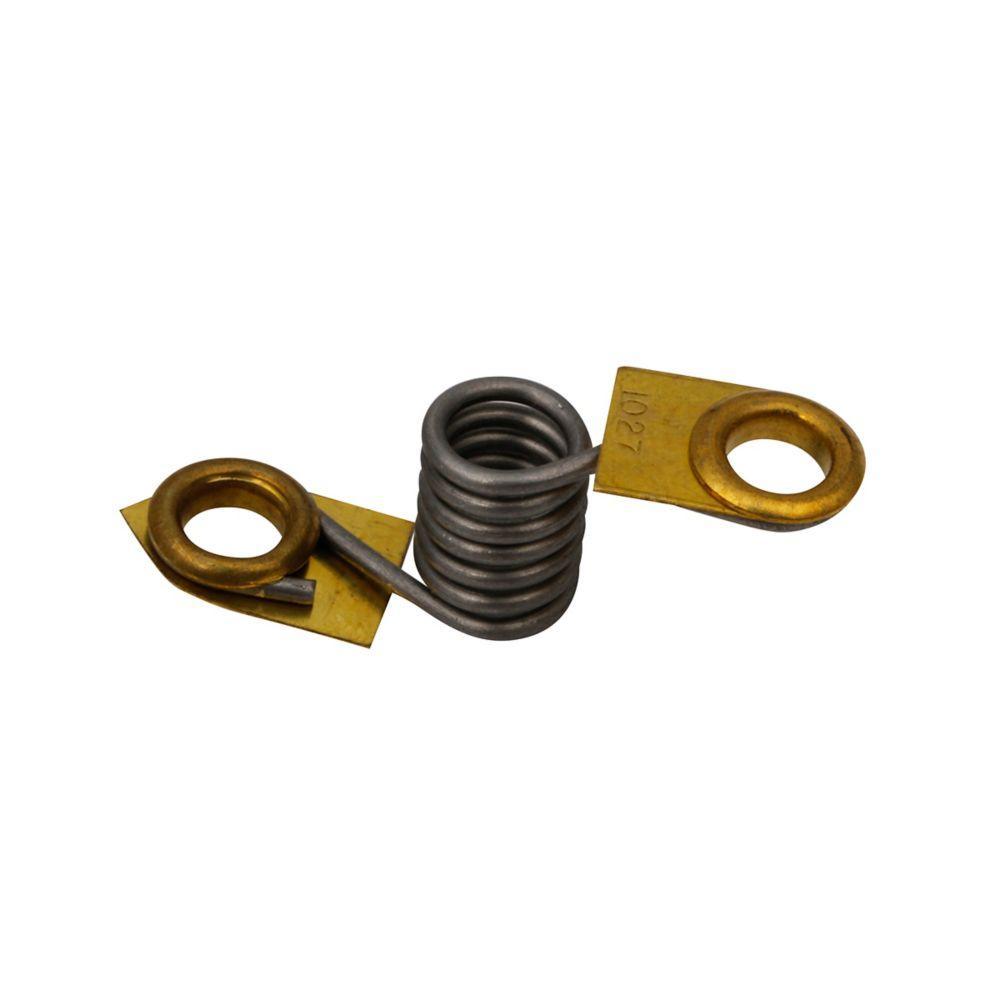

Eaton H1023 Freedom NEMA heater coil

Product Description

The Eaton H1023 Freedom NEMA heater coil is designed for use with Citation Controls. This heater coil is compatible with NEMA sizes 00, 0, 1, 1-1/2, 5, 6, 7, and 8. It features a standard trip type and is suitable for replacement in existing applications.

• Used with Citation Controls
• Standard Trip Type
• For replacement in existing applications only

Product Highlights

The Eaton H1023 heater coil is a reliable component for overload relays in motor starters.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: H1023
• Country of Origin: United States

Technical Specifications

• Product Name: Eaton Freedom NEMA heater coil
• Catalog Number: H1023
• UPC: 782113212579
• Product Length/Depth: 2.1 in
• Product Height: 0.8 in
• Product Width: 1.3 in
• Product Type: Heater coil
• Special features: Used with Citation Controls
• Type: Heater Coil Element
• MPN: H1023
• Country of Origin: United States
• Trip Type: Standard
• Enclosure Type: NEMA 00/0/1/1.5/5/6/7/8
• Manufacture: EATON
• Mfr Catalog Number: H1023
• Product Group: AD20A
• EAN / GTIN: 782113212579
• UNSPSC: 39122330
• Product Category: Overload Heater
• Commodity Code: 4216
