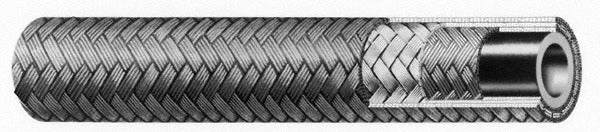

Eaton H06908-250R Hydraulic Hose 2000 Psi 13/32 in Id

Product Description

The EATON H06908-250R is a bulk hydraulic hose designed for high-pressure fluid conveyance in industrial and mobile hydraulic systems. It features a 13/32 inch inner diameter and a 49/64 inch outer diameter, with a maximum working pressure of 2,000 psi and a rated burst-test working pressure of 8,000 psi. The hose is constructed with a nitrile tube, making it compatible with petroleum-based hydraulic fluids. It operates across a temperature range of -40 degrees F to 212 degrees F, and its black outer cover resists abrasion and environmental exposure. This product ships and is priced in 1-foot increments from a 250-foot coil, with a 10-foot minimum cut length per order.

This hose is suited for mobile equipment, industrial machinery, and stationary hydraulic power units where a medium-bore, high-pressure line is required. The nitrile construction makes it appropriate for petroleum-based hydraulic oil circuits. Typical installation scenarios include connecting hydraulic pumps, cylinders, motors, and valves in both residential and commercial equipment service applications. Licensed fluid power technicians and industrial maintenance mechanics are the primary installers of this type of hose assembly.

Key Features

• 13/32 inch ID and 49/64 inch OD for precise fitting and coupling selection
• 2,000 psi maximum working pressure with 8,000 psi rated burst pressure
• Nitrile tube and cover construction compatible with petroleum-based hydraulic fluids
• Operating temperature range of -40 degrees F to 212 degrees F
• Minimum bend radius of 4-5/8 inches to maintain flow and prevent kinking
• Available in bulk 250-foot coils, cut to length in 1-foot increments with a 10-foot minimum

Compatibility

Designed as a replacement or new-install hydraulic hose for industrial and mobile hydraulic systems requiring a 13/32 inch ID medium-pressure hose rated to 2,000 psi working pressure with standard hydraulic hose end fittings.

Installation Notes

Hydraulic hose assembly and replacement should be performed by a qualified fluid power technician or licensed mechanic. Always depressurize and de-energize the hydraulic system completely before cutting or swaging hose ends. Use proper swaging or crimping equipment rated for this hose OD and the fittings selected — field fabrication with incorrect tooling is a primary cause of fitting blowout. Verify that hose routing respects the 4-5/8 inch minimum bend radius to prevent internal layer damage and premature failure.
