Eaton H010512RD-600R Multipurpose Air Hose 3/4 in 150 Psi

Product Description

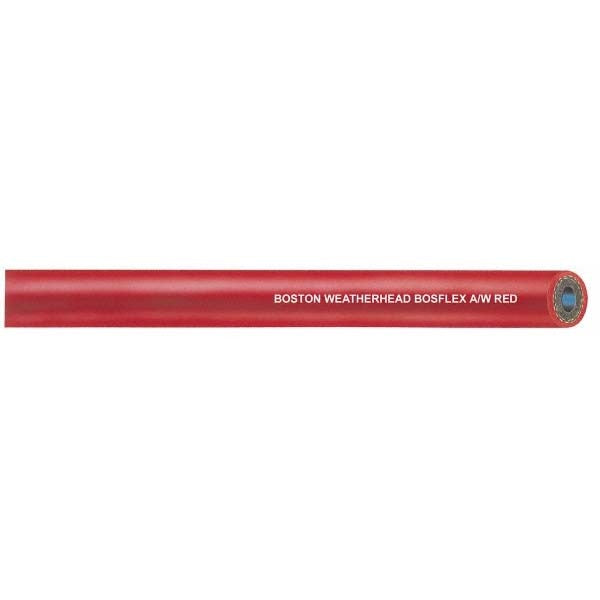

The EATON H010512RD-600R is a multipurpose air hose designed for pneumatic tool supply, compressed air distribution, and general industrial applications. Built from Ethylene Propylene Diene Monomer (EPDM) rubber, it handles a working pressure of 150 psi and operates across a wide temperature range of -40 to 160 degrees F. The hose measures 3/4 inch inside diameter and 1-3/16 inch outside diameter, making it well suited for high-flow air delivery in demanding shop and field environments. It is sold in cut-to-length increments with a 25-foot minimum cut requirement. Licensed contractors, industrial maintenance technicians, and shop mechanics are the primary installers.

This hose is appropriate for both light commercial and industrial pneumatic systems where a durable, flexible air supply line is needed. Its EPDM construction resists ozone, weathering, and temperature extremes, making it a reliable choice for indoor and outdoor installations alike. The red color aids in hose identification in multi-line setups. With no pre-attached end connections, installers can fit the hose with compatible fittings appropriate to their specific application and tool requirements.

Key Features

• 150 psi working pressure suitable for standard pneumatic tool and air supply applications
• EPDM construction provides resistance to ozone, weathering, and wide temperature swings
• Temperature rated from -40 to 160 degrees F for year-round indoor and outdoor use
• 3/4 inch inside diameter supports high-volume airflow to pneumatic equipment
• No pre-installed end connections allow installer to select fittings for each specific use
• Sold in cut-to-length increments with a 25-foot minimum cut from a 600-foot coil

Compatibility

Designed as a cut-to-length multipurpose air hose suitable for pneumatic tool supply lines, compressor drop lines, and general compressed air distribution where a 3/4 inch inside diameter EPDM hose with a 150 psi working pressure rating is required.

Installation Notes

Installation should be performed by a qualified mechanic or pneumatic systems technician following all applicable workplace safety and compressed air system guidelines. Depressurize and lock out the air supply before cutting, fitting, or connecting the hose. Use compatible barb or crimp fittings rated at or above 150 psi for all connections. Avoid routing the hose across sharp edges or through areas with temperatures outside the rated -40 to 160 degrees F operating range.
