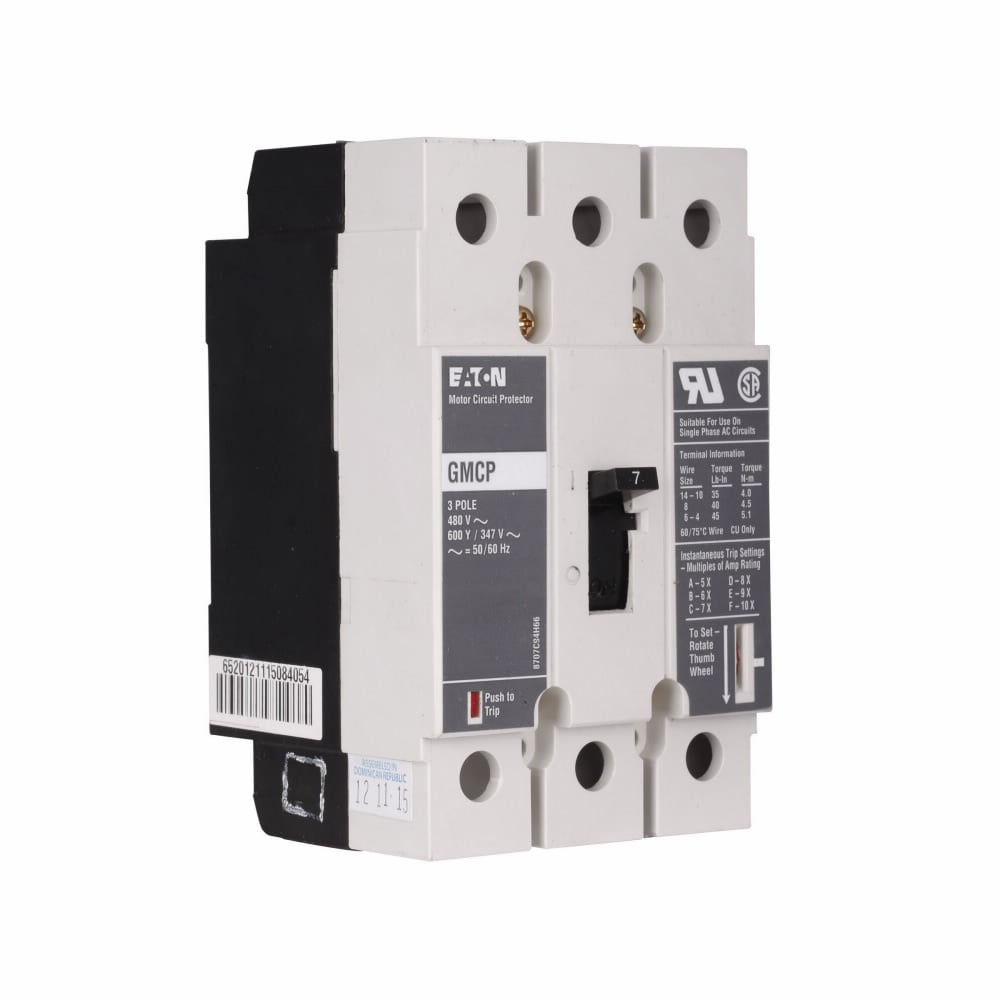

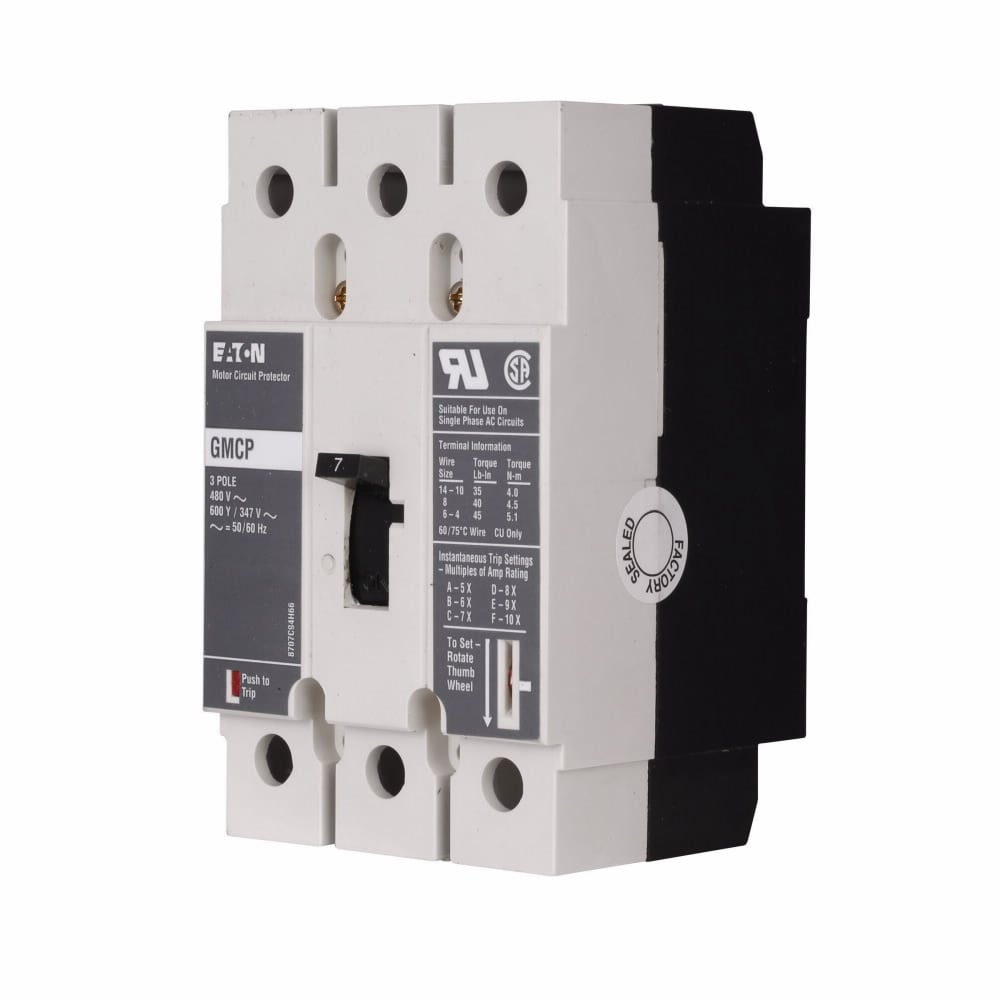

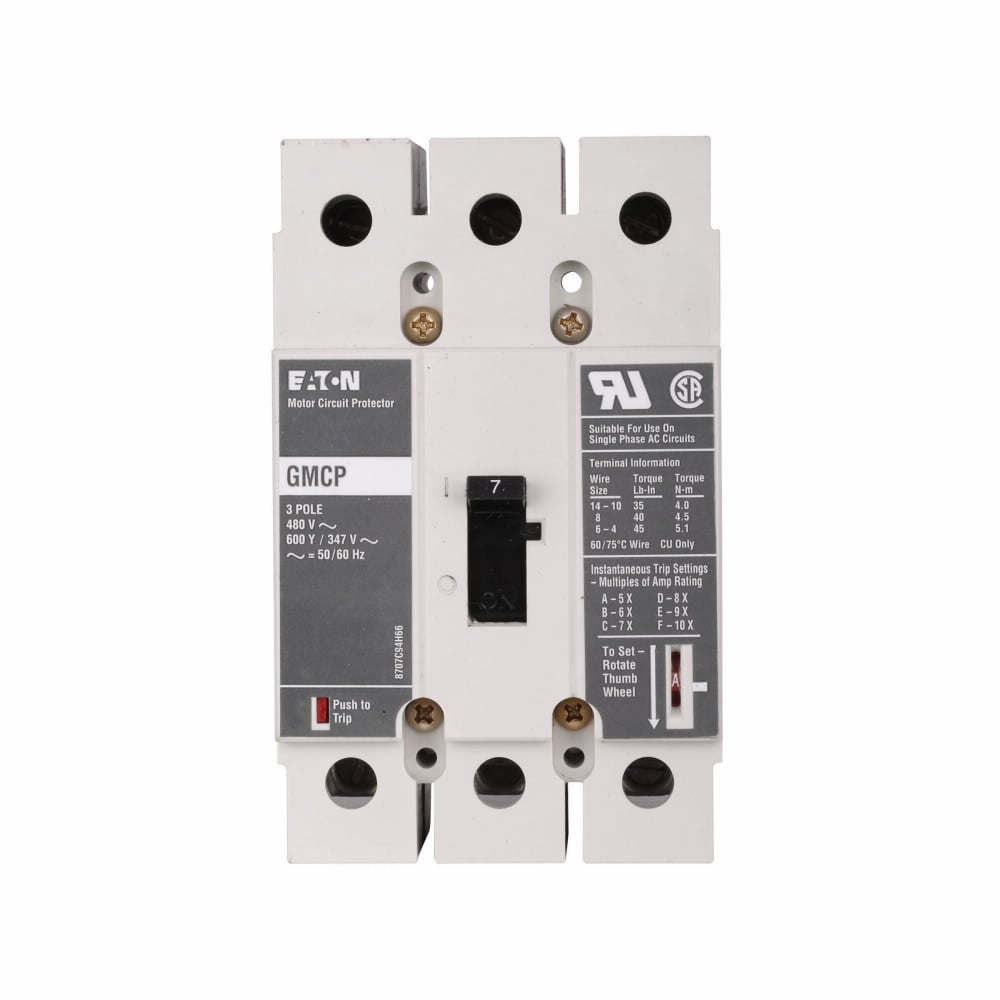

Eaton GMCP015E0C Eaton Series C Motor Circuit Protector G-frame Magnetic Only Trip Type 75-150A Trip Rating Three-pole 15A 480 Vac 35 kAIC at 480 Vac

Product Description

The Eaton Series C Motor Circuit Protector, MPN GMCP015E0C, is designed for use in various electrical assemblies, panel boards, and motor control centers. This three-pole protector has a trip rating of 15A at 480VAC, providing reliable performance for motor protection needs.

• Trip unit options available include magnetic only.
• Suitable for applications in systems rated up to 600VAC or 250VDC.
• Rated for 35 kAIC at 480VAC, ensuring adequate interruption capabilities.

Product Highlights

This circuit protector is a crucial element for safeguarding electrical circuits and motors against overload and short circuits.

Product Information

Standard Information

• Brand: Eaton
• MPN: GMCP015E0C

Technical Specifications

• Catalog Number: GMCP015E0C
• Voltage Rating: 480 Vac
• Current Rating: 15 A
• Interrupt Rating: 35 kAIC at 480 Vac
• Number of Poles: 3
• Frame: G
• Application: Electrical Assemblies, Panels & EOEM
• Special Features: NEMA size 0 starter
