Eaton GMA-800-R BUS GMA 800mA R (5)

Product Description

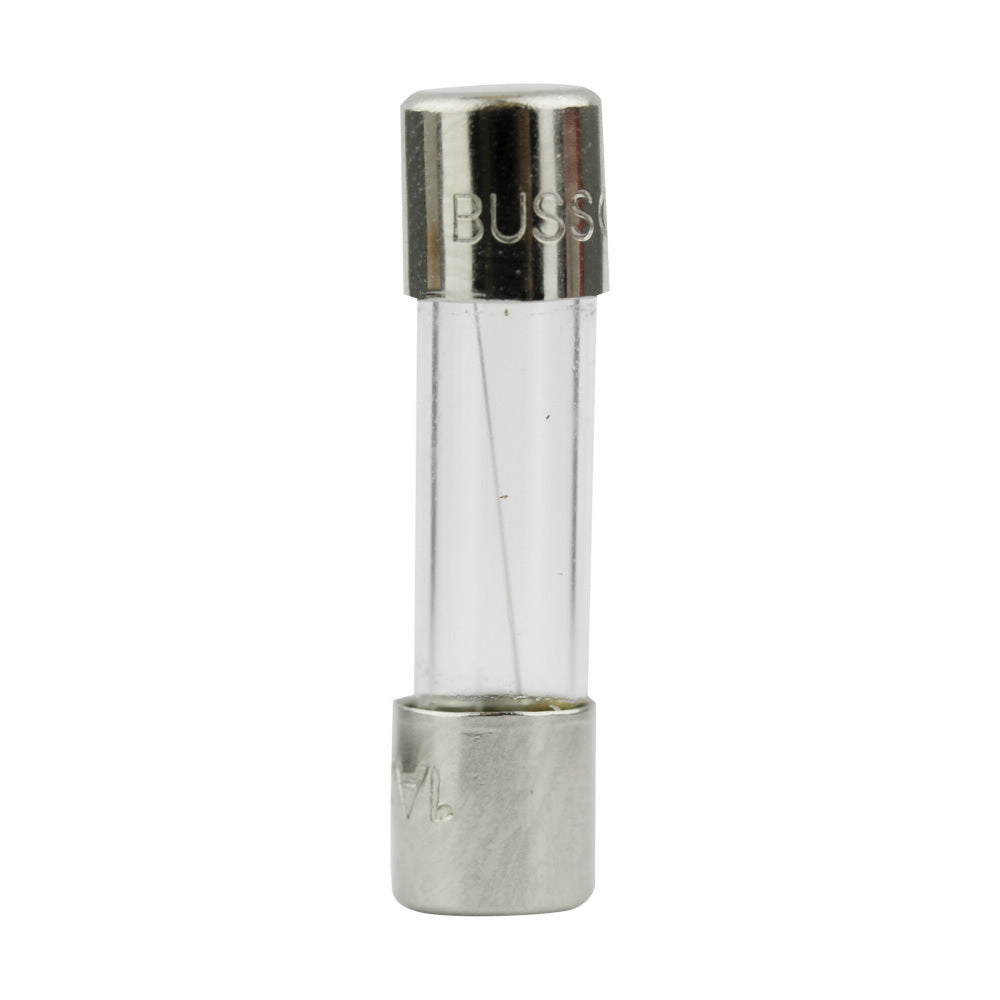

The Eaton GMA-800-R is a Bussmann fast acting fuse designed for electronic circuits. It features a low breaking capacity and small dimensions. This fuse operates at 800 mA and can handle up to 250 VAC. It is ideal for applications requiring reliable circuit protection.

• Amperage Rating: 800 mA
• Voltage Rating: 250 VAC
• Construction: Glass cylindrical body

Product Highlights

The fast acting feature ensures maximum protection of components, making it suitable for various electrical applications.

Product Information

Standard Information

• Manufacturer: Eaton
• MPN: GMA-800-R

Technical Specifications

• Application: Electronic Circuits
• Body Size: 5.2 mm Dia x 20 mm L
• Body Type: Cylindrical
• Element: Single
• Indicating: Non-Indicating
• Material: Glass
• Mounting Type: Holder
• Response Time: 60 min, 2 min
• Series: GMA
• Standards/Approvals: RoHS Compliant | UL Listed | UL 248-14, Guide JDYX | UL File No. E19180 | CSA Certified | CSA Class 1422-01, File 53787 | PSE Approval
• Terminal Type: Ferrule
• Type: Low Breaking Small Dimension
• Voltage Rating: 250 VAC
