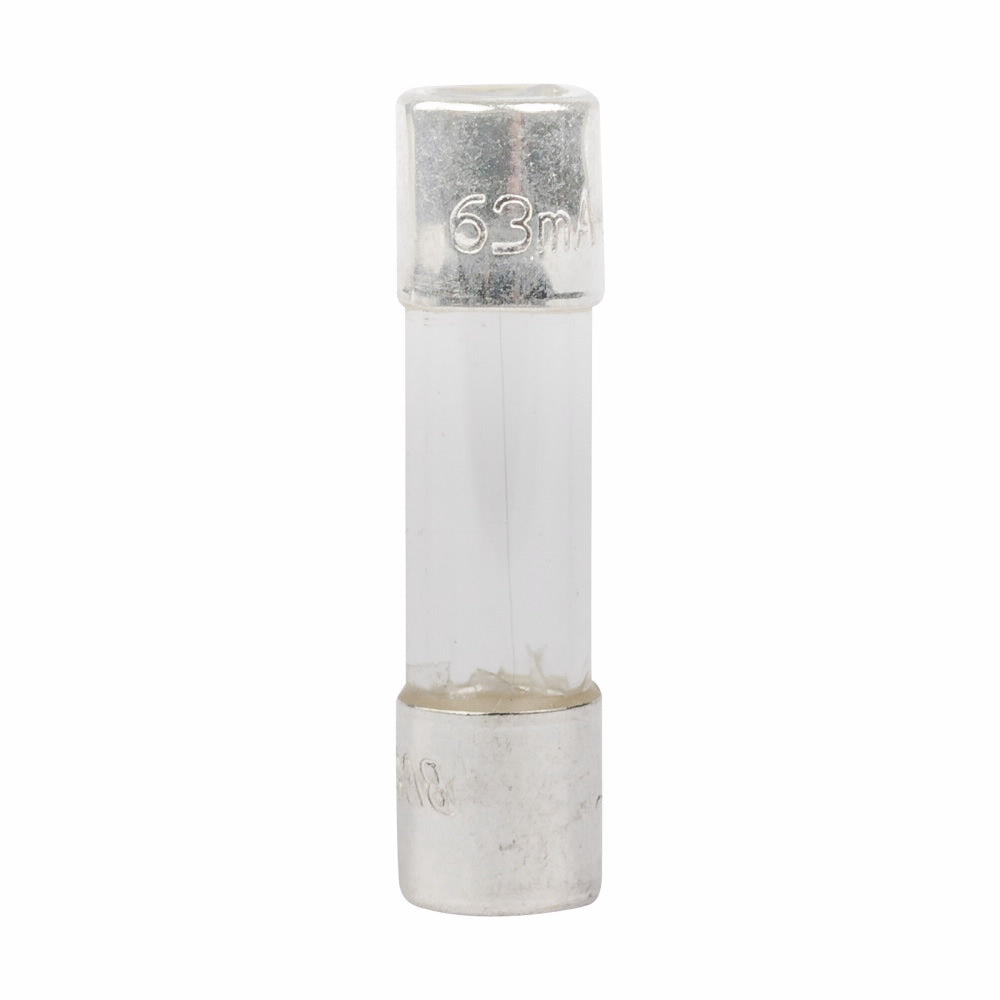

Eaton GMA-63-R BUS SMALL DIMENSION FUSE

Product Description

The Eaton GMA-63-R is a Bussmann low breaking small dimension fuse with a rating of sixty-three mA. This fuse is designed for use in electronic circuits with a voltage rating of two hundred fifty VAC and an interrupt rating of thirty-five A at one hundred twenty-five VAC.

• Fast acting for maximum protection
• Ten kA interrupt rating
• Utilizes a cylindrical glass body

Product Highlights

This fuse features a ferrule terminal and is suitable for holder mounting. Its response time is sixty minutes at one hundred thirty-five percent and two minutes at two hundred percent. The GMA series is known for non-indicating and non-rejection applications.

Product Information

Standard Information

• Manufacturer: Eaton
• UPN: 05171264803

Technical Specifications

• Amperage Rating: 63 mA
• Application: Electronic Circuits
• Body Size: 5.2 mm Dia x 20 mm L
• Body Type: Cylindrical
• Element: Single
• Indicating: Non-Indicating
• Manufacturer Part Number: GMA-63-R
• Material: Glass
• Mounting Type: Holder
• Response Time: 60 min, 2 min
• Voltage Rating: 250 VAC
• Standards/Approvals: RoHS Compliant|UL Listed|UL 248-14, Guide JDYX|UL File No. E19180|CSA Certified|CSA Class 1422-01, File 53787|PSE Approval
