Eaton GMA-4-R GMA Fast-Acting Electronic Fuse 4 A (5 mm x 20 mm)

Product Description

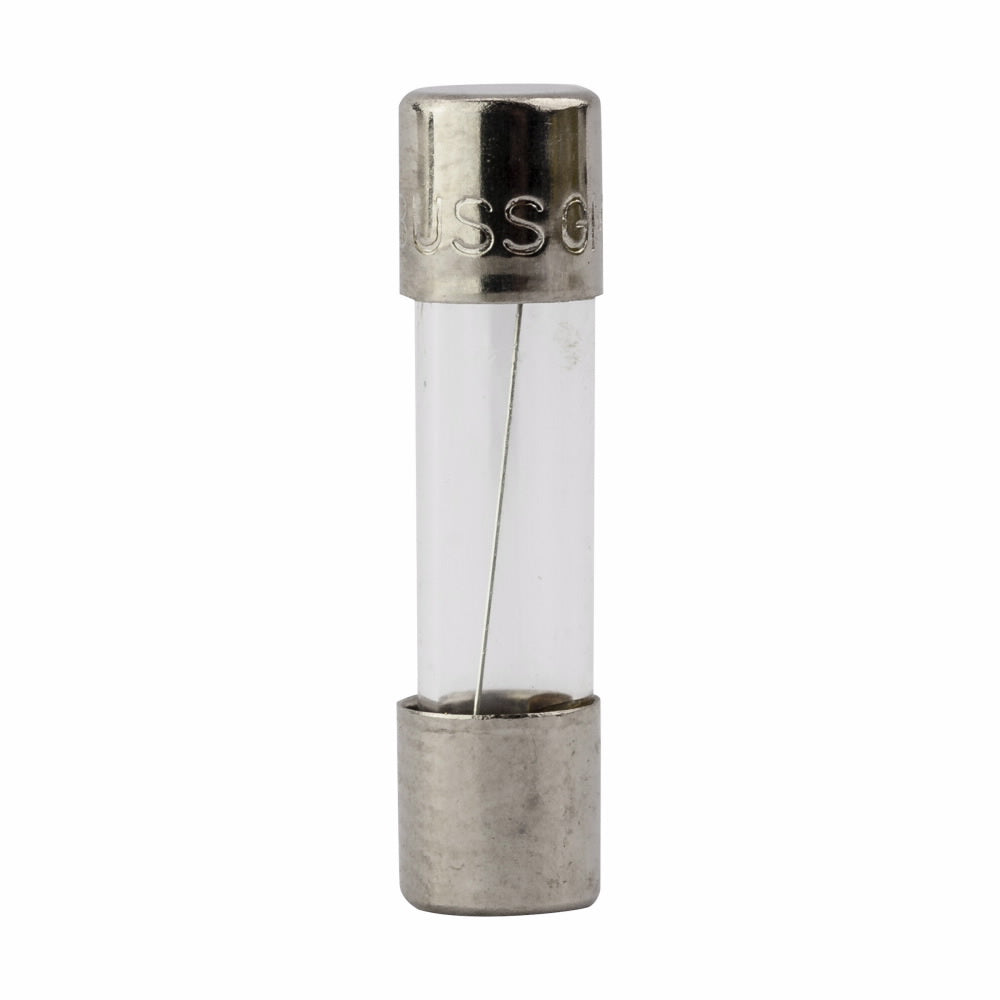

Eaton GMA-4-R is a fast-acting electronic glass tube fuse rated 4 A at 125 Vac with a 10 kA interrupting rating. The single-element, non-indicating 5 x 20 mm fuse features a glass tube body with nickel-plated brass end caps and ferrule terminals for holder mounting. Response characteristics are 60 minutes at 135% and 2 minutes at 200% of rated current, suitable for electronic circuit protection.

• Rated current: 4 A; voltage: 125 Vac (also specified 32 Vdc in some references); interrupting rating: 10 kA (10,000 A) at 125 Vac
• Physical: 5 mm diameter x 20 mm length glass tube; nickel-plated brass end caps; ferrule terminal; single-element cylindrical construction
• Response time: 60 min max at 135% of rated current and 2 min max at 200%; approvals include UL 248-14, CSA, CE, PSE, RoHS

Product Highlights

5 x 20 mm fast-acting electronic glass fuse, 4 A, 125 Vac, 10 kA interrupting rating, ferrule terminals, non-indicating

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: GMA-4-R
• Country of Origin: China

Technical Specifications

• Manufacturer: Eaton (Bussmann)
• MPN: GMA-4-R
• Series: GMA
• Product Type: Fast-acting glass tube fuse
• Current Rating: 4 A
• Voltage Rating: 125 Vac, 32 Vdc
• Interrupting Rating: 10 kA (10,000 A) at 125 Vac
• Body Size: 5 mm diameter x 20 mm length (5 x 20 mm)
• Body Material: Glass tube
• Body Type: Cylindrical / Glass tube
• End Cap Material: Nickel-plated brass
• Terminal Type: Ferrule
• Element: Single
• Fuse Indicator: Non-indicating
• Mounting Type: Holder (ferrule terminal for holder mounting)
• Response Time: 60 min maximum at 135% of rated current; 2 min maximum at 200% of rated current
• Application: Electronic circuits; power conversion; telecommunications; automotive (electronic circuit protection)
• Approvals / Certifications: UL 248-14; UL Listed; CSA; CE; PSE; RoHS Compliant; IEC approvals referenced
• Product Weight: 0.7 g
• Product Length: 20 mm
• Product Diameter: 5 mm
• End-to-End Connection: Ferrule end to ferrule end
• Country of Origin: China
• Package Quantity: 5
