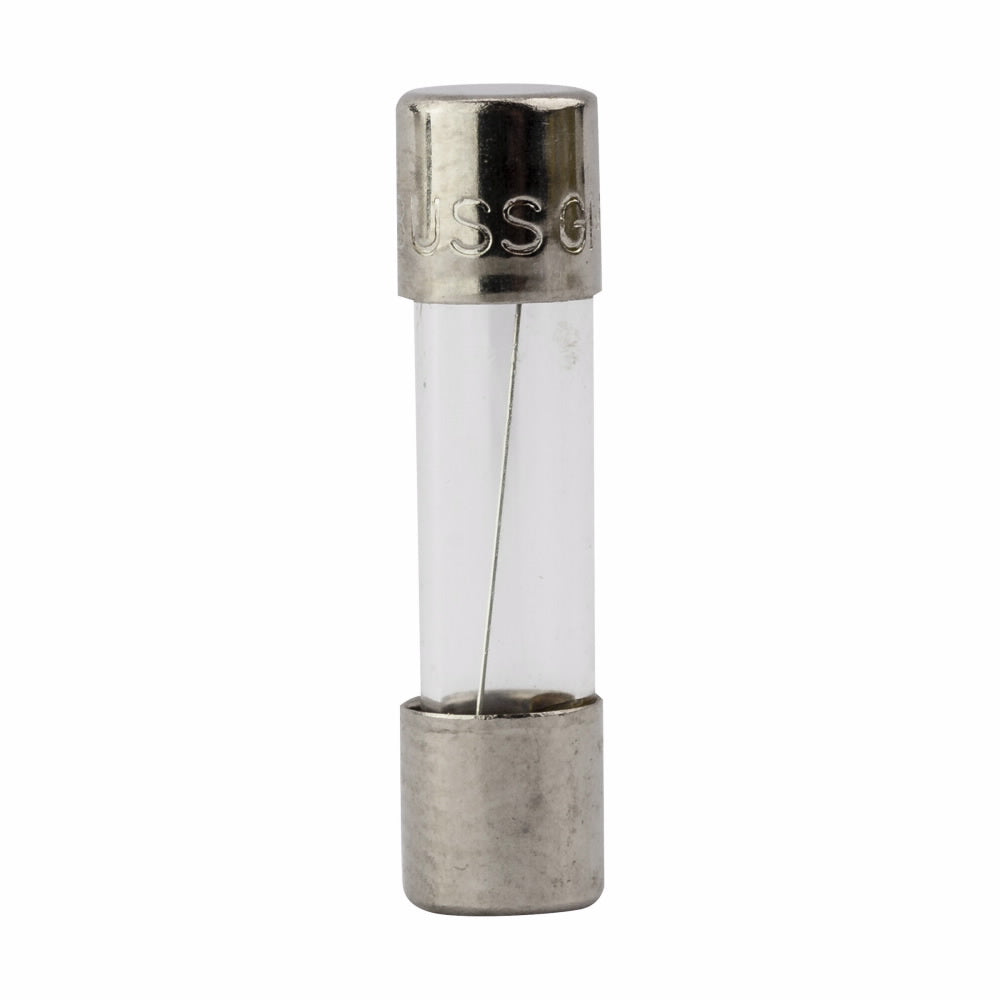

Eaton GMA-3.15-R BUS SMALL DIMENSION FUSE (5)

Product Description

The Eaton GMA-3.15-R is a fast-acting fuse designed for electronic circuit protection. This fast acting fuse has a rating of three point fifteen amperes and operates at a voltage of one hundred twenty-five V AC. It features a ten kA interrupt rating, ensuring reliable protection for electrical components.

• Fast acting for maximum component protection
• Ten kA at one hundred twenty-five V AC interrupt rating
• Sixty min maximum at one hundred thirty-five percent, two min maximum at two hundred percent response time

Product Highlights

The GMA series fuses provide reliable and efficient protection in various electronic applications.

Product Information

Standard Information

• Manufacturer: Eaton
• Manufacturer Part Number: GMA-3.15-R

Technical Specifications

• Amperage Rating: 3.15 A
• Application: Electronic Circuits
• Body Size: 5.2 mm Dia x 20 mm L
• Body Type: Cylindrical
• Element: Single
• Indicating: Non-Indicating
• Material: Glass
• Mounting Type: Holder
• Response Time: 60 min, 2 min
• Series: GMA
• Standards/Approvals: RoHS Compliant, UL Listed, UL 248-14, Guide JDYX, UL File No. E19180, CSA Certified, CSA Class 1422-01, File 53787, PSE Approval
• Terminal Type: Ferrule
• Type: Low Breaking Small Dimension
• Voltage Rating: 125 VAC
