Eaton GMA-200-R BUS FUSE GMA 200MA

Product Description

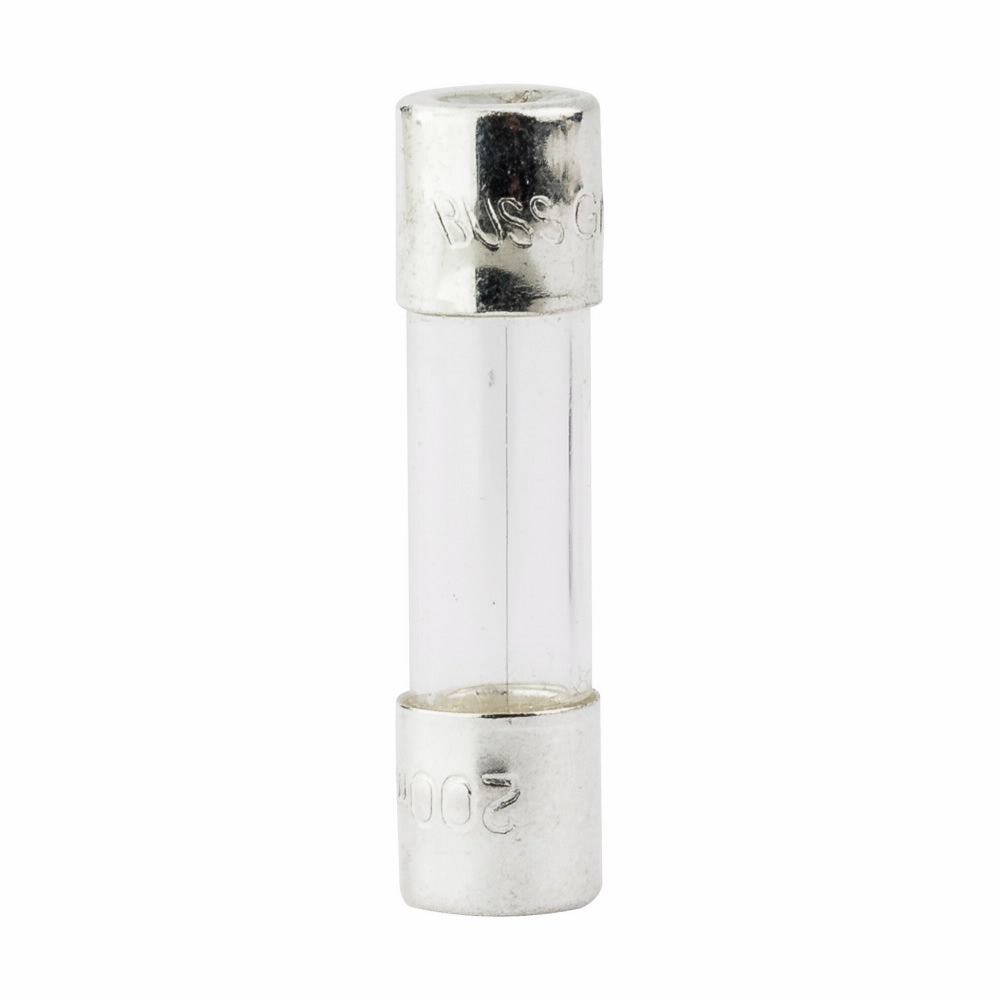

The Eaton GMA-200-R is a fast acting bus fuse designed for protecting electronic circuits. This fuse features a cylindrical body and is made from glass. It has a low breaking capacity and operates at an amperage rating of two hundred milliamps. The fuse interrupts at a voltage rating of two hundred fifty VAC with a maximum interrupt rating of thirty-five amperes. It is suitable for various applications in electrical systems.

• Fast acting for enhanced component protection
• Interrupt rating of 35 A at 250 VAC
• Optimal response times of 60 minutes and 2 minutes

Product Highlights

This fuse is manufactured by Eaton and is compliant with several standards including RoHS and UL certifications, ensuring safety and reliability in performance.

Product Information

Standard Information

• UPC: 05171264790
• Manufacturer: Eaton

Technical Specifications

• Amperage Rating: 200 mA
• Application: Electronic Circuits
• Body Size: 5.2 mm Dia x 20 mm L
• Body Type: Cylindrical
• Element: Single
• Indicating: Non-Indicating
• Manufacturer Part Number: GMA-200-R
• Material: Glass
• Mounting Type: Holder
• Rejection: Non-Rejection
• Response Time: 60 min, 2 min
• Series: GMA
• Standards/Approvals: RoHS Compliant, UL Listed, UL 248-14, Guide JDYX, UL File No. E19180, CSA Certified, CSA Class 1422-01, File 53787, PSE Approval
• Terminal Type: Ferrule
• Type: Low Breaking Small Dimension
• Voltage Rating: 250 VAC
