Eaton GLR-5 Bussmann Series Small Dimension Fast Acting Fuse 5 A 300 V (0.72 in x 2.25 in)

Product Description

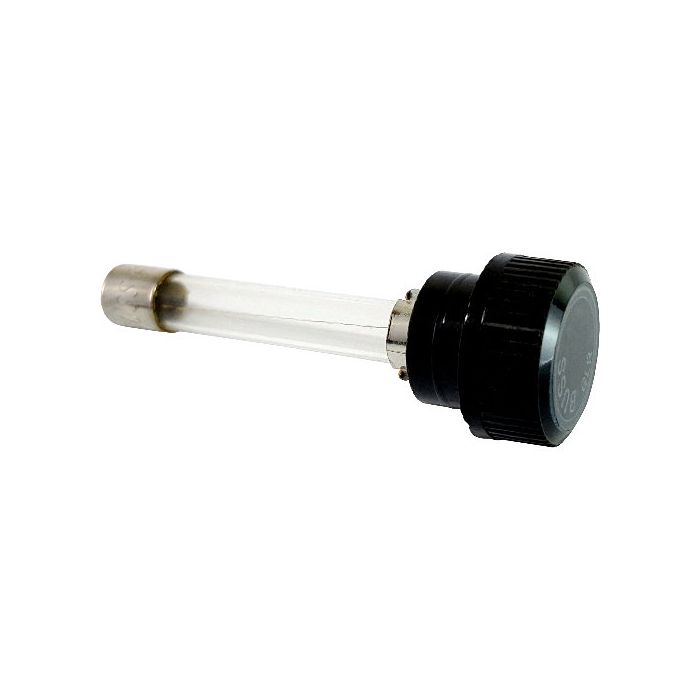

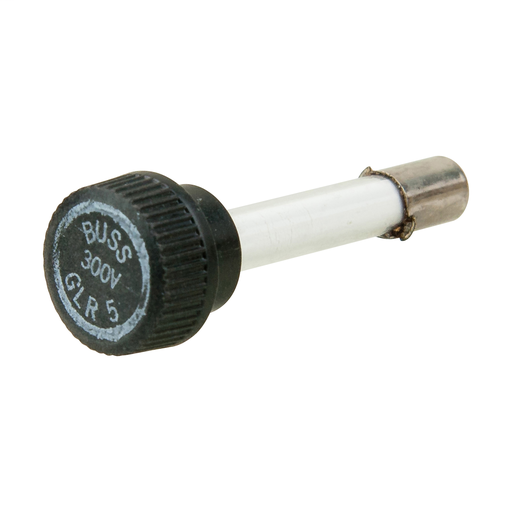

Eaton GLR-5 is a Bussmann small-dimension, fast-acting fuse rated 5 A at 300 V AC for supplemental in-line circuit protection. It is designed for lighting ballast protection and panel or holder mounting, with a compact glass body approximately 0.72 inch diameter and 2.25 inch length. The non-rejecting single-element fuse provides a 10 kA interrupting rating and carries UL and CSA agency listings.

• Electrical ratings: 5 A current, 300 V AC voltage, 10 kA interrupting rating
• Construction: cylindrical glass body, single-element fast-acting fuse, non-rejecting design
• Mounting and application: panel/holder or HLR fuse holder mounting for in-line lighting ballast protection

Product Highlights

Fast-acting 5 A, 300 V AC Bussmann GLR series fuse; compact 0.72 in x 2.25 in glass body; 10 kA interrupting rating; UL and CSA approvals.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: GLR-5
• Country of Origin: Mexico

Technical Specifications

• Manufacturer: Eaton (Bussmann)
• Manufacturer Part Number: GLR-5
• Series: GLR
• Fuse Type: Fast-acting, non-rejecting, single-element
• Current Rating: 5 A
• Voltage Rating: 300 V AC
• Interrupting Rating: 10 kA
• Application: In-line lighting ballast protection
• Body Type: Cylindrical glass
• Dimensions: 0.72 in diameter x 2.25 in length
• Mounting Type: Panel / holder (HLR fuse holder compatible)
• Class: Supplemental
• Agency Approvals: UL Listed (Std. 248-14, Guide JDYX, File E19180); CSA C22.2 No. 248.14 (Class 1422-01, File 53787); CE
• RoHS Compliant: No
• Weight (manufacturer spec): 0.011 lb
• UPC: 05171271628
