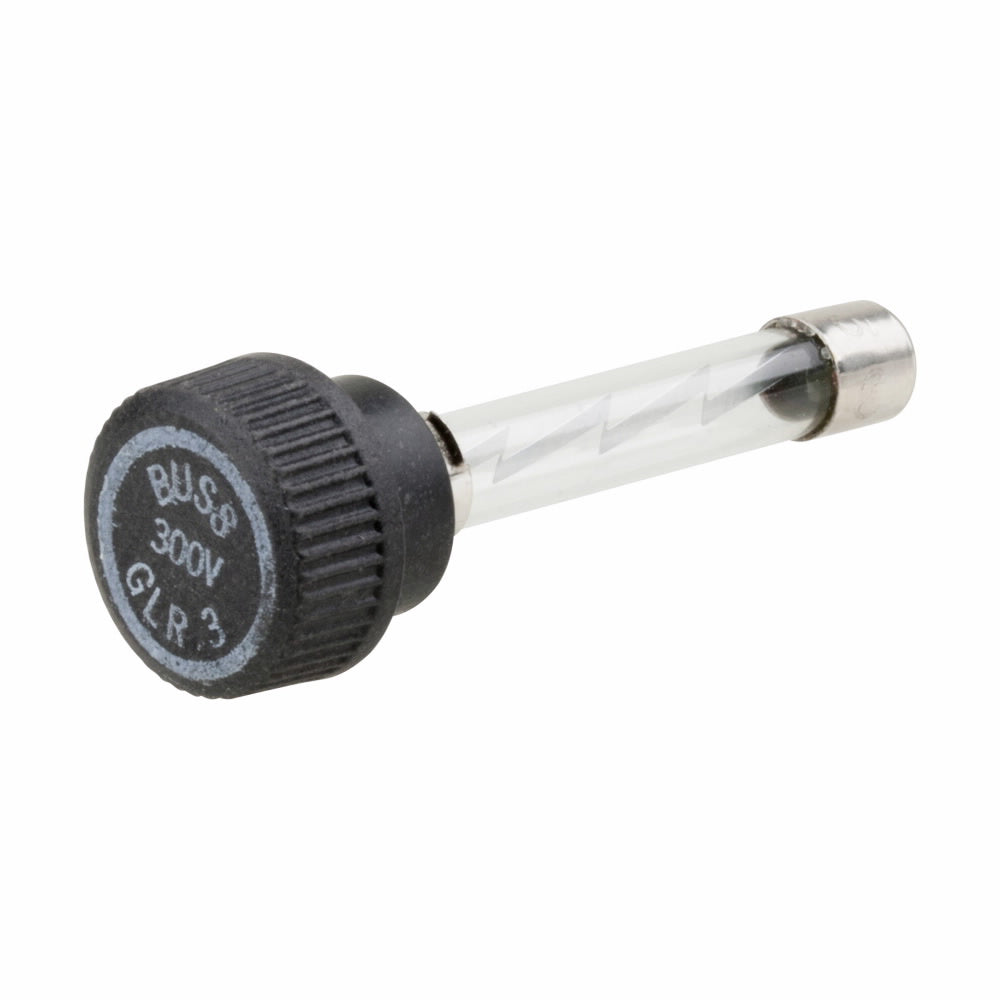

Eaton GLR-3 Fast Acting Specialty Fuse 3 A (Cylindrical Body)

Product Description

Eaton GLR-3 is a fast-acting specialty cylindrical fuse rated 3 A at 300 VAC with a 10 kA interrupting rating and classified as a Class Supplemental fuse. It uses a single-element glass tubular construction in a compact body (0.72 in diameter x 2.25 in length) and is designed for supplemental overcurrent protection in electronic and electrical equipment, commonly applied to in-line lighting ballast protection and panel/holder mounting.

• 3 A current rating, 300 VAC voltage rating, 10 kA interrupting capacity (AC/DC).
• Fast-acting single-element glass cylindrical construction; body dimensions approx. 0.72 in diameter x 2.25 in length.
• Class Supplemental, non-indicating and non-rejection style; panel/holder mounting for in-line lighting ballast protection; UL and CSA approvals.

Product Highlights

Fast-acting 3 A, 300 VAC glass cylindrical supplemental fuse with 10 kA interrupting rating for in-line lighting ballast and supplemental overcurrent protection.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: GLR-3
• Country of Origin: Mexico

Technical Specifications

• Brand: Eaton (Bussmann)
• Manufacturer Part Number: GLR-3
• Product Type: Fast acting specialty fuse
• Current Rating: 3 A
• Voltage Rating: 300 VAC
• Interrupting Rating: 10 kA (AC/DC)
• Fuse Class: Class Supplemental
• Body Style: Cylindrical
• Body Material: Glass
• Body Dimensions: 0.72 in diameter x 2.25 in length
• Element: Single
• Indicating: Non-indicating
• Rejection: Non-rejection
• Mounting Type: Panel/Holder
• Series: GLR
• Application: In-line lighting ballast protection; supplemental overcurrent protection in electronic and electrical equipment
• Fuse Holder Type: HLR
• Standards/Approvals: UL 248-14 (Guide JDYX, File E19180); CSA C22.2 No. 248.14 (CSA Class 1422-01, File 53787); CE Certified
• UPC: 051712716260
