Eaton GLR-10 Bussmann Series Small-Dimension Fast-Acting Fuse 10A 300V (0.72 in x 2.25 in)

Product Description

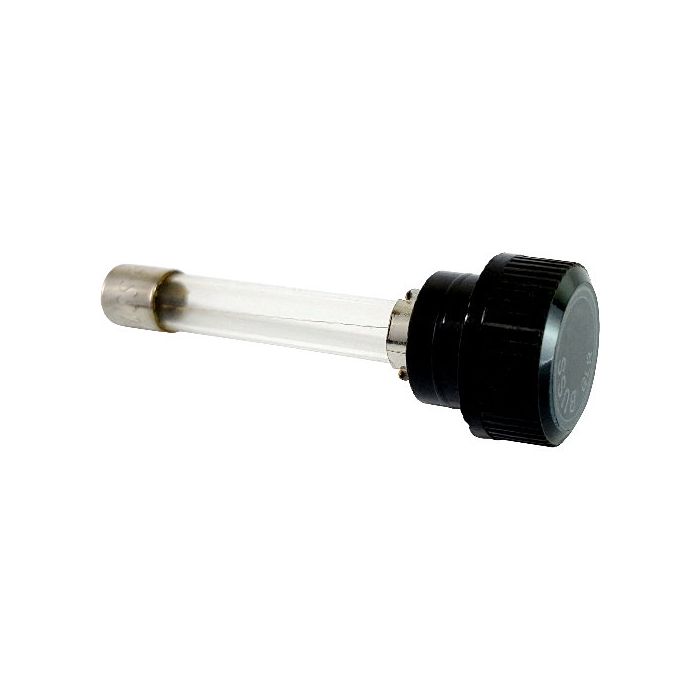

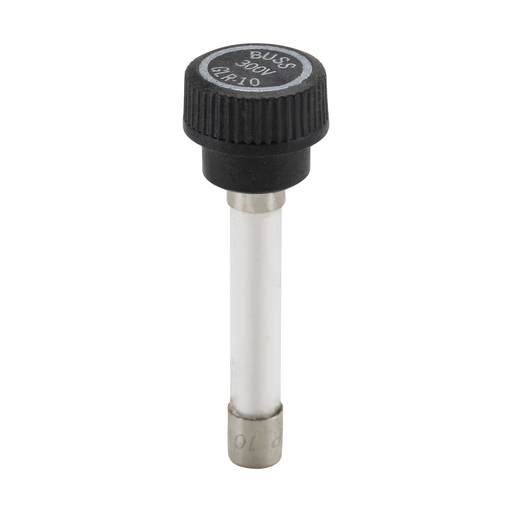

The Eaton GLR-10 is a Bussmann series small-dimension, fast-acting in-line fuse rated 10 A at 300 V AC. It features a glass cylindrical body, non-rejecting one-piece construction with integral knob, and a 10 kA interrupting rating for supplementary circuit protection. Typical use is in-line lighting ballast protection and other low-voltage supplemental circuits; mounting is panel/holder compatible with HLR-style holders.

• Rating: 10 A, 300 V AC with 10 kA interrupting rating; fast-acting, non-rejecting design
• Construction: glass cylindrical body (0.72 in diameter x 2.25 in length), single element, wire terminal
• Certifications and mounting: UL 248-14, CSA C22.2 No. 248.14, CE; panel/holder (HLR) mounting for lighting ballast protection

Product Highlights

Fast-acting 10 A, 300 V AC Bussmann GLR series in-line fuse with glass body, 10 kA interrupting rating, panel/holder mounting for lighting ballast protection.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: GLR-10
• Country of Origin: Mexico

Technical Specifications

• Brand: Eaton (Bussmann)
• Manufacturer: Eaton (Bussmann)
• Manufacturer Part Number: GLR-10
• Series: GLR
• Fuse Type: Fast acting, non-rejecting, in-line supplementary fuse
• Current Rating: 10 A
• Voltage Rating: 300 V AC
• Interrupting Rating: 10 kA
• Body Material: Glass
• Body Type: Cylindrical
• Dimensions: 0.72 in diameter x 2.25 in length
• Diameter: 0.72 in
• Length: 2.25 in
• Element: Single
• Terminal Type: Wire
• Mounting Type: Panel / Holder (HLR compatible)
• Application: In-line lighting ballast protection; low-voltage supplementary circuit protection
• Class: Supplemental
• Indicating: Non-indicating
• Rejection: Non-rejection
• Standards/Approvals: UL 248-14 (Guide JDYX, File E19180); CSA C22.2 No. 248.14 (Class 1422-01, File 53787); CE Certified
• Includes: Fuse (one-piece with integral knob); carrier/holder compatibility noted
• Country of Origin: Mexico
