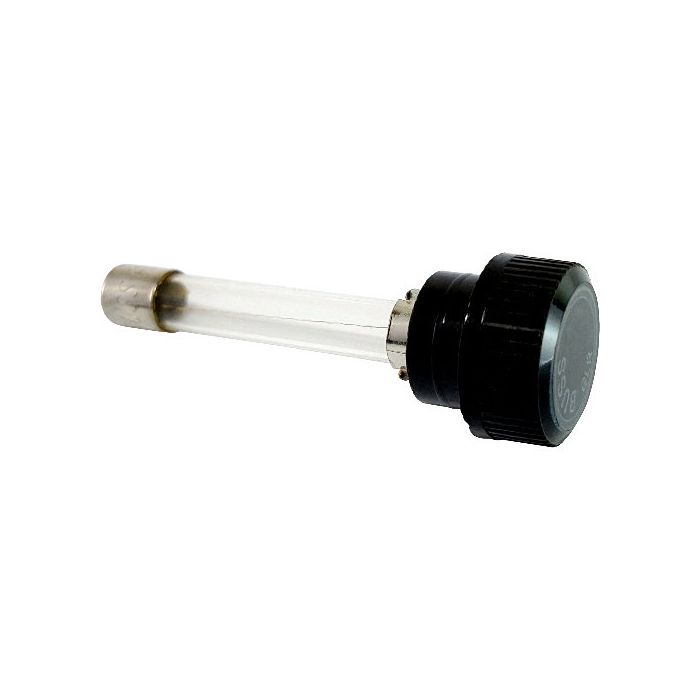

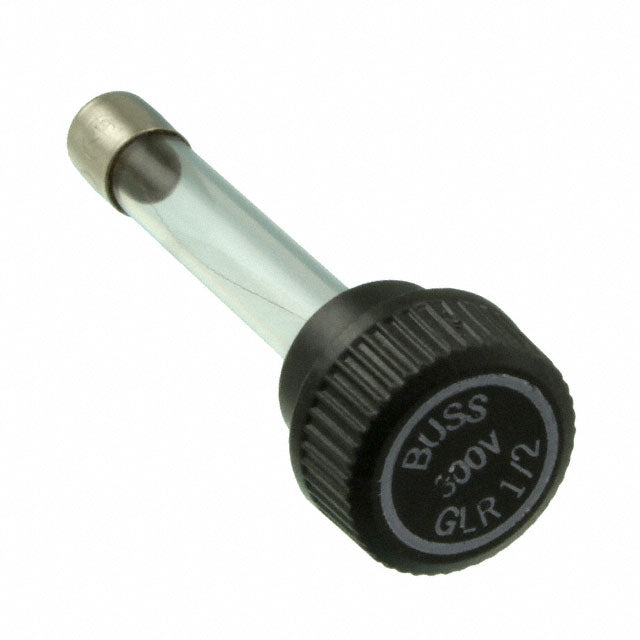

Eaton GLR-1/2 Glass Cartridge Fuse 1/2 A (2.25 in)

Product Description

Eaton GLR-1/2 is a glass-body cartridge fuse rated 1/2 A (0.5 A) and 300 VAC for in-line lighting ballast protection and general supplemental circuit protection. The fast-acting single-element fuse measures 2.25 inches long, mounts in a panel or holder, and provides a 10 kA interrupting rating. It is non-rejecting and carries UL and CSA approvals.

• Rated current: 1/2 A (0.5 A); voltage: 300 VAC; fast-acting single element
• Interrupting rating: 10 kA; approvals include UL 248-14 and CSA C22.2
• Glass cylindrical body, 0.72 in diameter x 2.25 in length; panel/holder mounting

Product Highlights

Glass cartridge fuse, 1/2 A 300 VAC, fast acting, 10 kA interrupting

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: GLR-1/2
• Country of Origin: Mexico

Technical Specifications

• Brand: Eaton
• Manufacturer Part Number: GLR-1/2
• Product Type: Glass cartridge fuse (cartridge fuse)
• Current Rating: 1/2 A (0.5 A)
• Voltage Rating: 300 VAC
• Interrupting Rating (AIC): 10 kA (10,000 AIC)
• Response Time: Fast acting
• Body Material: Glass
• Dimensions: 0.72 in diameter x 2.25 in length (18.29 mm x 57.15 mm)
• Element: Single
• Mounting Type: Panel/Holder
• Class: Supplemental
• Fuse Holder Type: HLR
• Approvals: UL 248-14 (Guide JDYX, File E19180); CSA C22.2 No. 248.14 (Class 1422-01, File 53787); CE
• Application: In-line lighting ballast protection
• Package Quantity: 1
