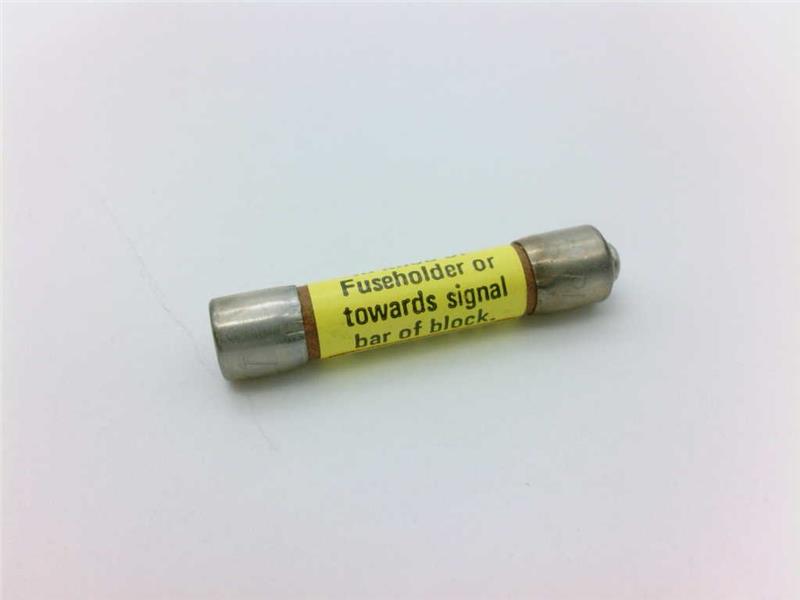

Eaton GLD-5 low voltage non-time delay pin indicating fast acting fuse 5 A 125 VAC 1/4 in dia x 1-1/4 in L

Product Description

The EATON GLD-5 is a low voltage non-time delay pin indicating fast acting fuse designed for electronic and control circuit applications. This supplemental class fuse features a 5 A amperage rating and a 125 VAC voltage rating, with a 10 kA interrupt rating. Its cylindrical fiberglass body measures 1/4 inch in diameter by 1-1/4 inches in length, utilizing a ferrule terminal and holder mounting. The fuse is indicating, with a plated pin to signal opened circuits, reducing downtime.

• Type GLD has a plated pin to activate transmitting an electrical signal to indicate the location of opened circuits, resulting in reduced downtime
• Opening of fuse results in the ejection of end pin
• 10 kA at 125 VAC interrupt rating

Product Highlights

Fast-acting fuse with pin indication for quick fault identification and reduced downtime in electronic and control circuits.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: GLD-5

Technical Specifications

• Amperage Rating: 5 A
• Application: Electronic and Control Circuit Applications
• Body Size: 1/4 in Dia x 1-1/4 in L
• Body Type: Cylindrical
• Class: Supplemental
• Indicating Type: Indicating
• Material: Fiberglass
• Mounting Type: Holder
• Series: GLD
• Certifications: CE Certified|CSA Class 1422-01|CSA File No. 53787 Certified UL 248-14 Guide No. JDYX|UL File No. E19180
• Terminal Type: Ferrule
• Fuse Type: Low Voltage Non-Time Delay Pin Indicating
• Voltage Rating: 125 VAC
• Interrupt Rating: 10 kA
