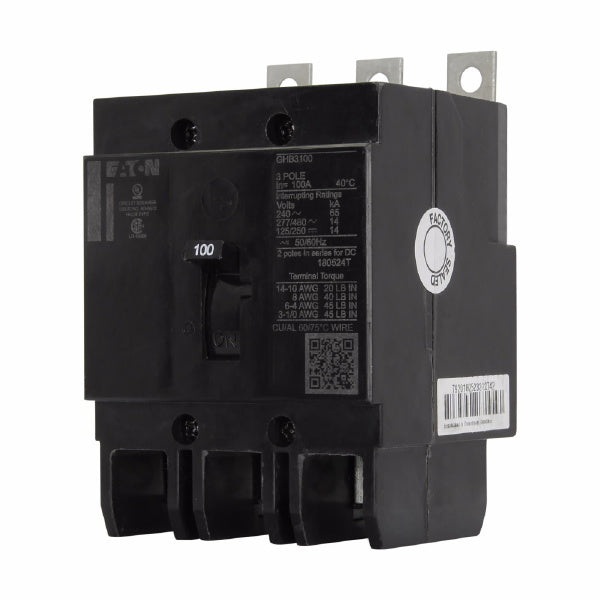

EATON GHB3100 Molded Case Circuit Breaker 100A 3 Poles

Product Description

The EATON GHB3100 is a reliable molded case circuit breaker rated at one hundred amps. This product is designed to operate at 277/480Y VAC and 125/250 VDC. With a 14 kAIC interrupt rating at 480Y/277 VAC and 65 kAIC at 240 VAC, it ensures maximum safety and efficiency.

• Three-pole design for versatile applications.
• Fixed thermal and fixed magnetic trip type.
• Suitable for overhead and underground electrical installations.

Product Highlights

This circuit breaker is ideal for panelboards, switchboards, and motor control centers. It has been in use for over twenty years, meeting North American standards for safety and reliability.

Product Information

Standard Information

• Manufacturer: EATON
• Model Number: GHB3100

Technical Specifications

• Amperage Rating: 100 A
• Voltage Rating: 277/480Y VAC / 125/250 VDC
• Number of Poles: 3
• Interrupt Rating: 14 kAIC at 480Y/277 VAC / 65 kAIC at 240 VAC
• Frequency Rating: 50/60 Hz
• Dimensions: 2.63 x 3 x 4 inches
• Temperature Rating: 40 degrees Celsius
