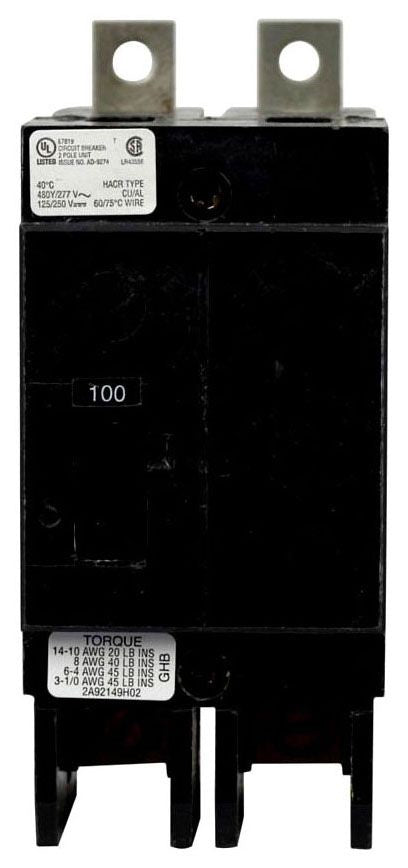

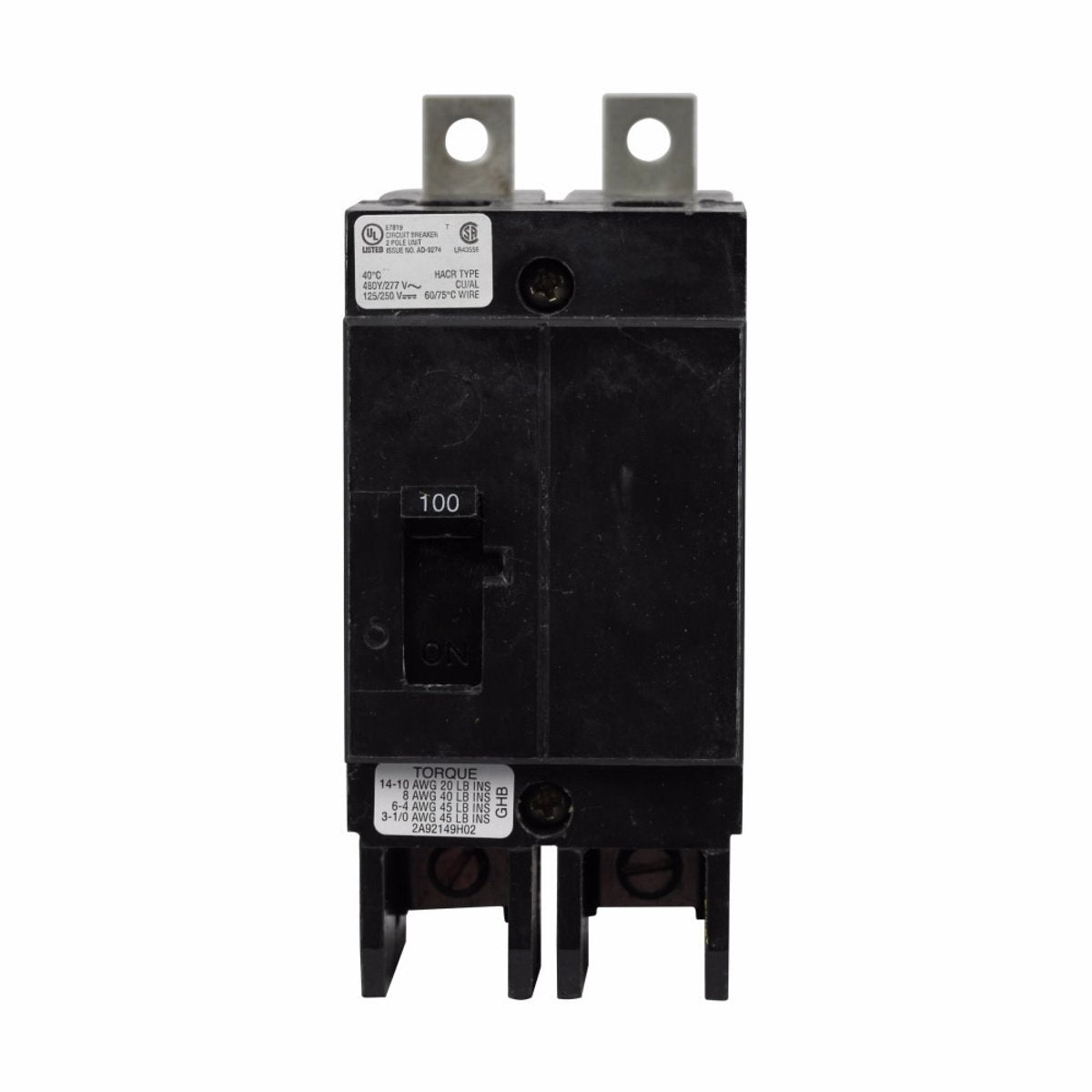

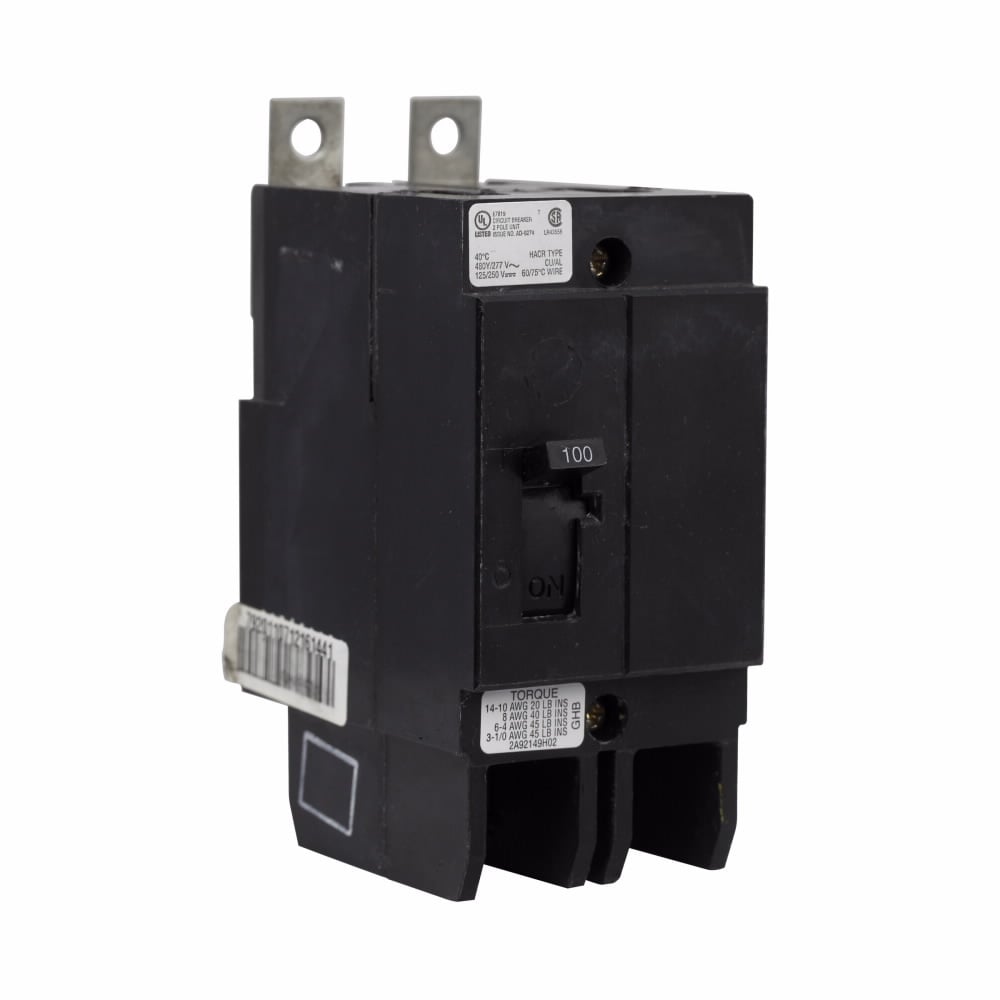

Eaton GHB2100 Breaker Ckt Case Mld 100A 65/14KA 2 G

Product Description

Eaton GHB2100 is a molded case circuit breaker rated for 100 Amps. It features a voltage rating of 480Y/277 VAC and 125/250 VDC. This circuit breaker is designed for use in panelboards and motor control centers, providing reliable protection for electrical circuits.

• Current Rating: 100 A
• Interrupt Rating: 65 kAIC at 240 VAC and 14 kAIC at 480Y/277 VAC
• Trip Type: Fixed Thermal and Fixed Magnetic

Product Highlights

This breaker is part of the C Series and is suitable for applications in electrical assemblies, panels, and OEM setups. It meets North American standards and has a NEMA 4 enclosure.

Product Information

Standard Information

• Manufacturer: Eaton
• Catalog Number: GHB2100

Technical Specifications

• Voltage Rating: 480Y/277 VAC / 125/250 VDC
• Amperage Rating: 100 A
• Dimensions: 6.1 in L x 3.7 in W x 2.9 in H
• Frame Type: G
• Number of Poles: 2
• Frequency Rating: 50/60 Hz
• Temperature Rating: 40 deg C
• Enclosure Type: NEMA 4
