Product Description

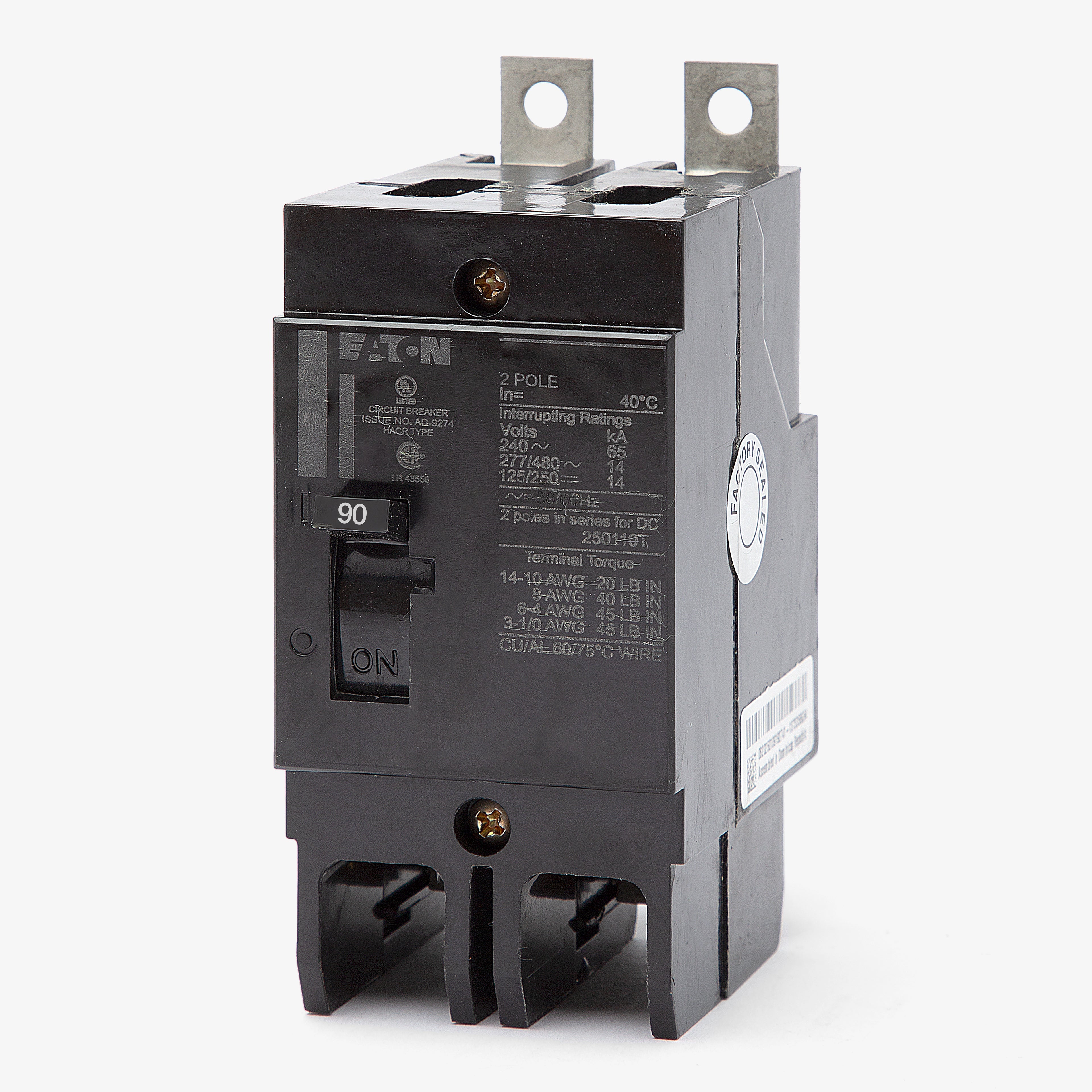

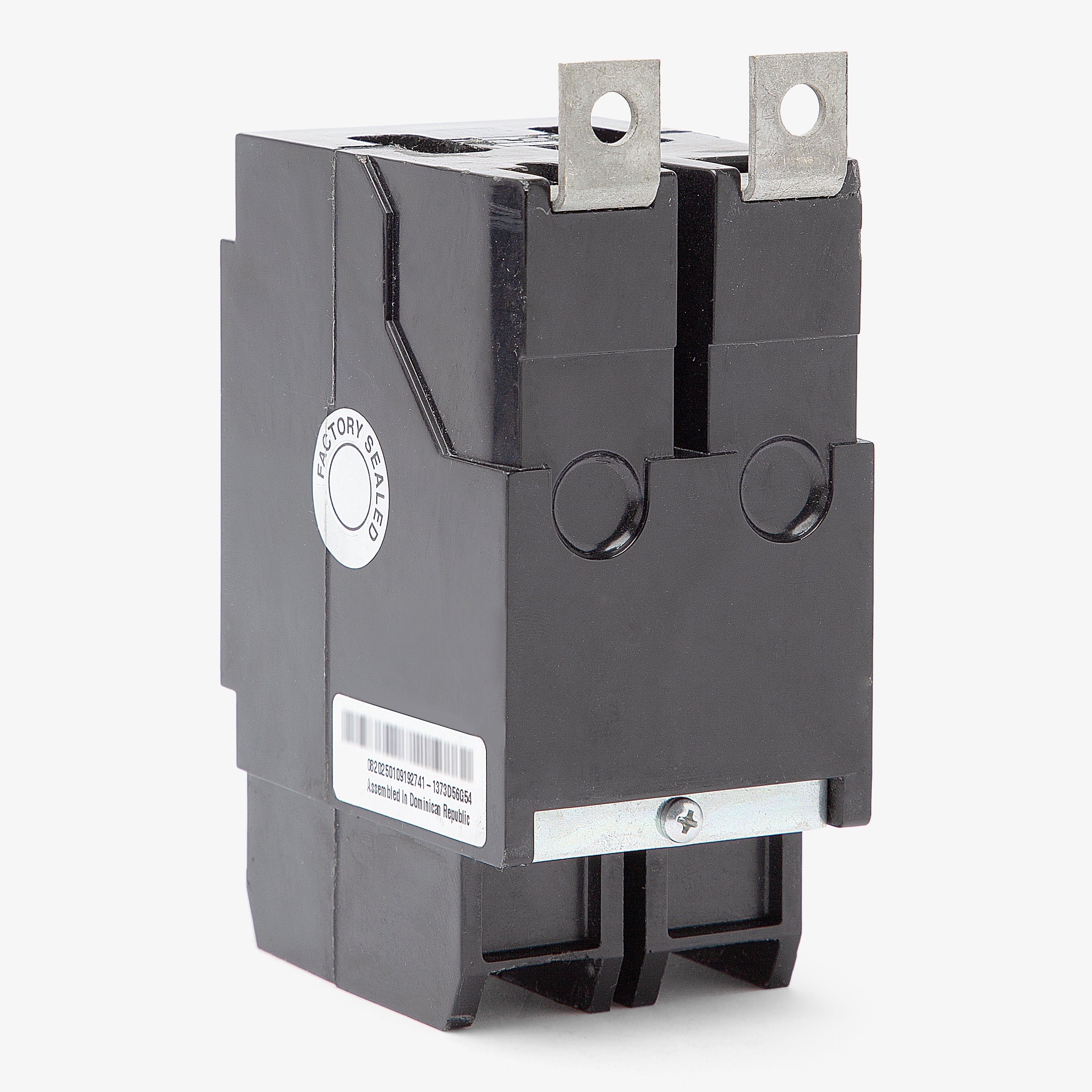

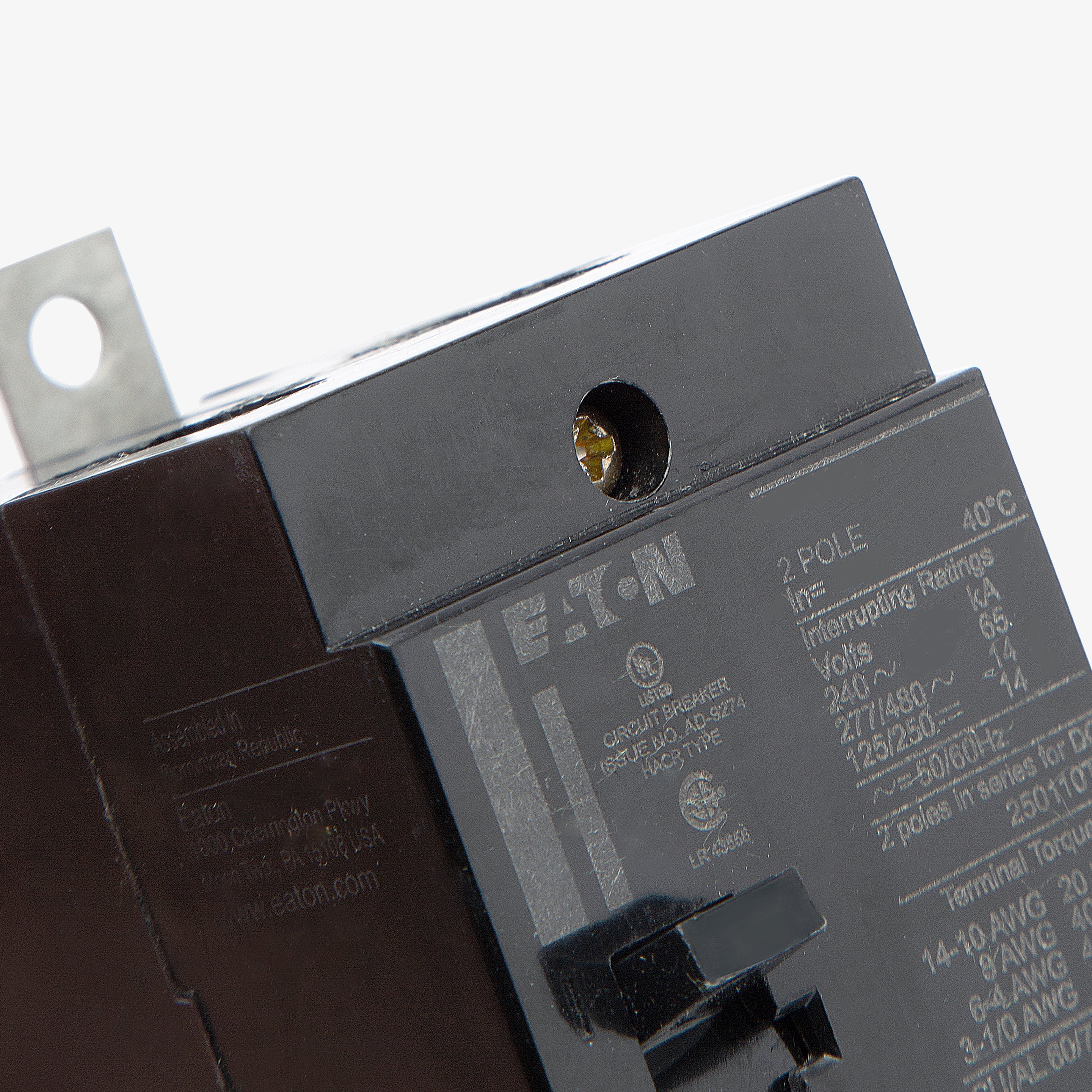

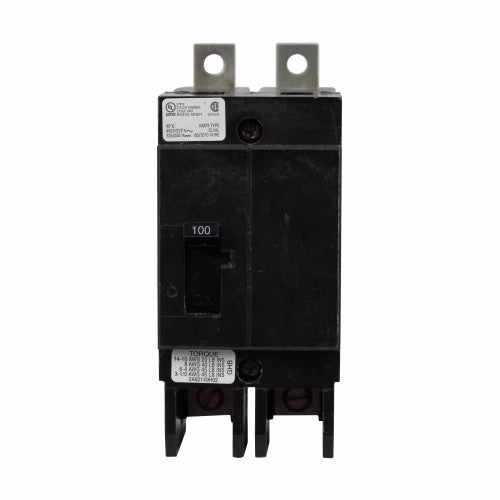

The Eaton GHB2090 is a Series C G-frame molded case circuit breaker designed for reliable electrical protection. This complete breaker features a fixed thermal and fixed magnetic trip type, operating as a two-pole unit. It is rated for 90 A, suitable for 480Y/277 Vac and 125/250 Vdc systems at 50/60 Hz. This GHB type circuit breaker provides essential overcurrent protection in various electrical assemblies and panel applications.
- Fixed thermal and fixed magnetic trip type for consistent overcurrent protection.
- Two-pole configuration with a 90 A current rating for diverse applications.
- Suitable for 480Y/277 Vac and 125/250 Vdc electrical systems operating at 50/60 Hz.
Product Highlights
The Eaton GHB2090 is a G-frame molded case circuit breaker offering reliable fixed thermal and magnetic overcurrent protection for two-pole applications.
Product Information
Standard Information
-
Brand: EATON
-
Manufacturer Part Number: GHB2090
-
Country of Origin: Dominican Republic
Technical Specifications
-
Breaker Type: Molded Case Circuit Breaker
-
Brand: Eaton / Cutler-Hammer
-
Frame: G-frame
-
Current Rating: 90 A
-
Voltage Rating: 240VAC, 480Y/277VAC, 125/250VDC
-
Frequency: 50/60 Hz
-
Trip Type: Fixed Thermal, Fixed Magnetic
-
Application: Used in panelboard, switchboard, motor control center and busway applications for dependable branch circuit protection, for reverse feed applications, electrical assemblies and OEMs applications
-
Number of Poles: Two-pole
-
Interrupt Rating: 65 kAIC at 240VAC, 14 kAIC at 480Y/277VAC, 14 kAIC at 125/250VDC
-
Model: GHB
-
Catalog Number: GHB2090
-
Manufacturer: Eaton
-
Standards: CSA C22.2 No. 5, Federal Specification WC-375B, HACR Rated, IEC 60947-2, IEEE 1584-2002, UL 489
-
Material: Glass Polyester
-
Phase: 1
-
Series: C
-
Operating Temperature: 40 deg C
-
Model Type: Type GHB Complete
-
Breaker Frame Type: Complete breaker
-
Line Side Terminal Method: Screw Terminal
-
Load Side Terminal Method: Lugs
-

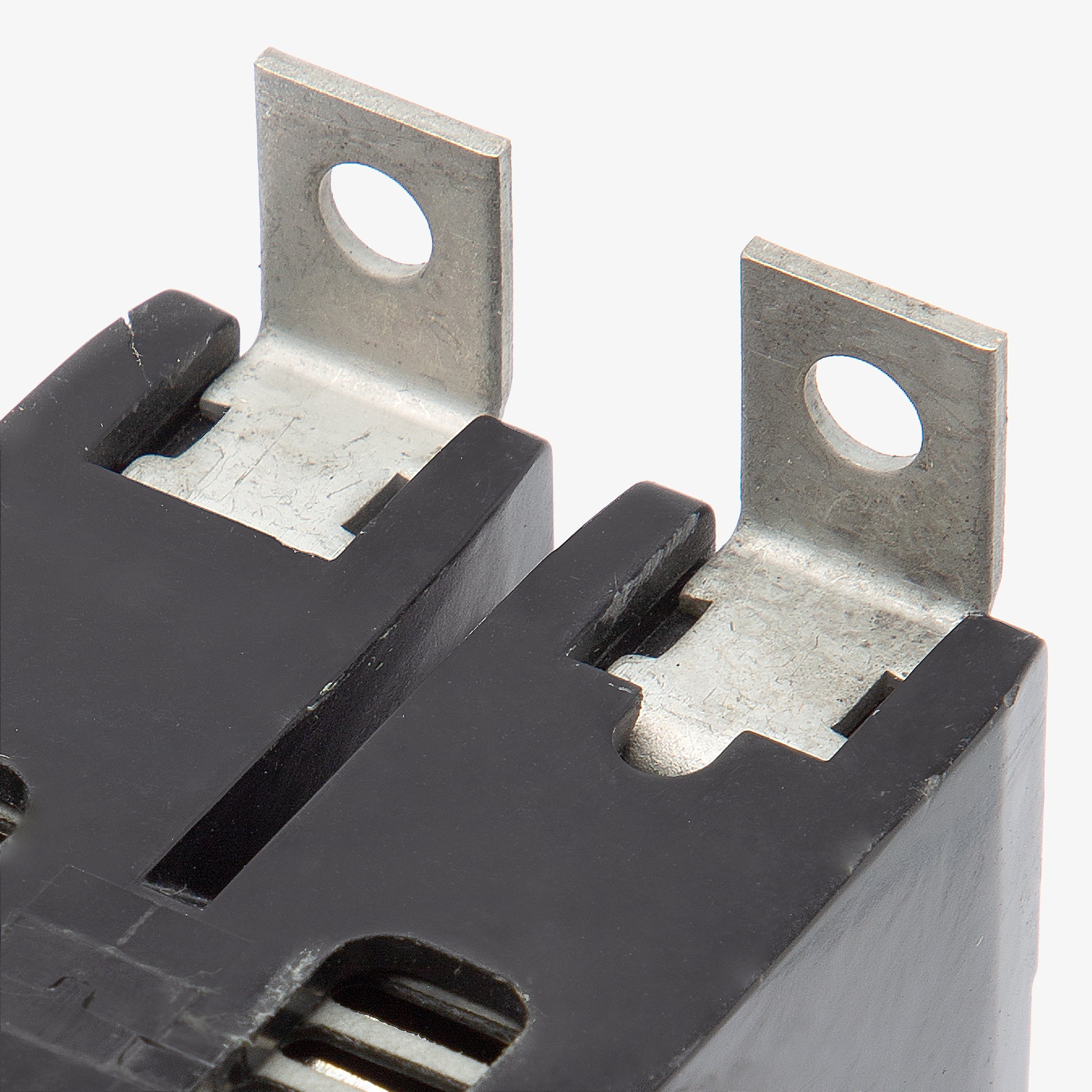

Mounting Style: Bolt-On
-
Compatible Panelboards: Eaton Pow-R-Line C Panelboards, Series C Panelboards, Westinghouse PRL2 Panelboards
-
Trip Function Code: LI
-
Trip Function: Long-Time, Instantaneous
-
Wire Gauge: 10-1/0 AWG (Cu/Al)
-
Available Options: Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment
-
Accessories: Load Side Lugs Included
-
Approvals: CSA, UL
-
Construction Features: HACR Rated, Reverse Feed
-
IP Rating: IP00
