Product Description

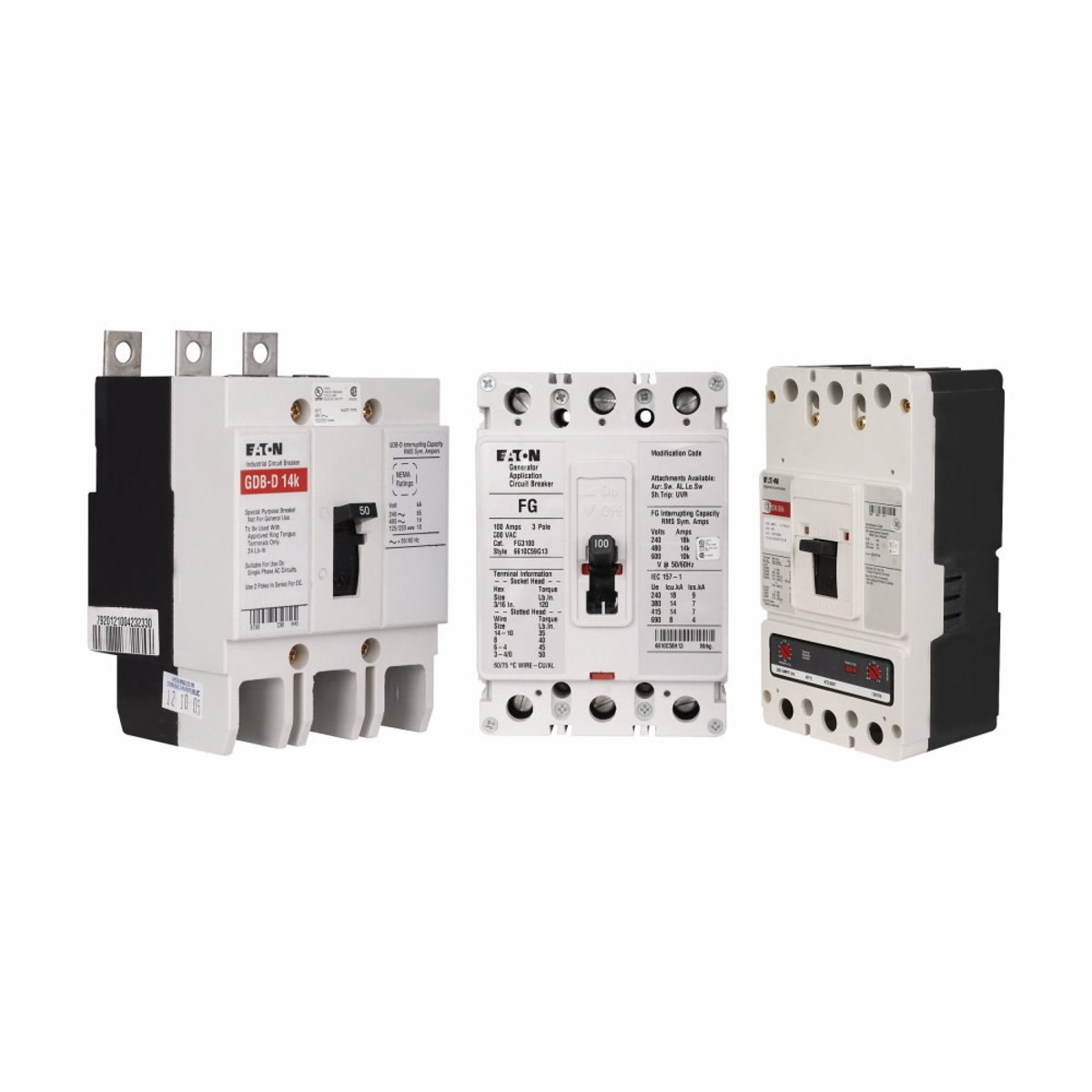

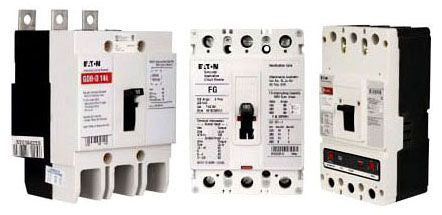

The Eaton GHB2070 is a molded case circuit breaker with a current rating of seventy amperes and a voltage rating of two hundred seventy-seven to four hundred eighty volts alternating current and one hundred twenty-five to two hundred fifty volts direct current. This unit is part of Eaton's C Series and features fixed thermal and fixed magnetic trip types. It is designed for panelboards, switchboards, motor control centers, and busway applications.
- Two-pole design for effective circuit protection
- Interrupt ratings of fourteen kA at four hundred eighty volts and sixty-five kA at two hundred forty volts
- Compatible with wire sizes ranging from ten to one AWG
Product Highlights
This circuit breaker is suitable for applications requiring reliable protection in electrical assemblies, panels, and OEM systems. It meets North American standards for safety and efficiency.
Product Information
Standard Information
-
Brand: Eaton
-
MPN: GHB2070
Technical Specifications
-
Current Rating: 70 A
-
Voltage Rating: 277/480Y VAC / 125/250 VDC
-
Frequency Rating: 50/60 Hz
-
Number of Poles: 2
-
Trip Type: Fixed Thermal/Fixed Magnetic/Non-Interchangeable
-
Dimensions: 2.63 in L x 2 in W x 4 in H
-
Interrupt Rating: 14 kA at 480Y/277 VAC, 65 kA at 240 VAC
