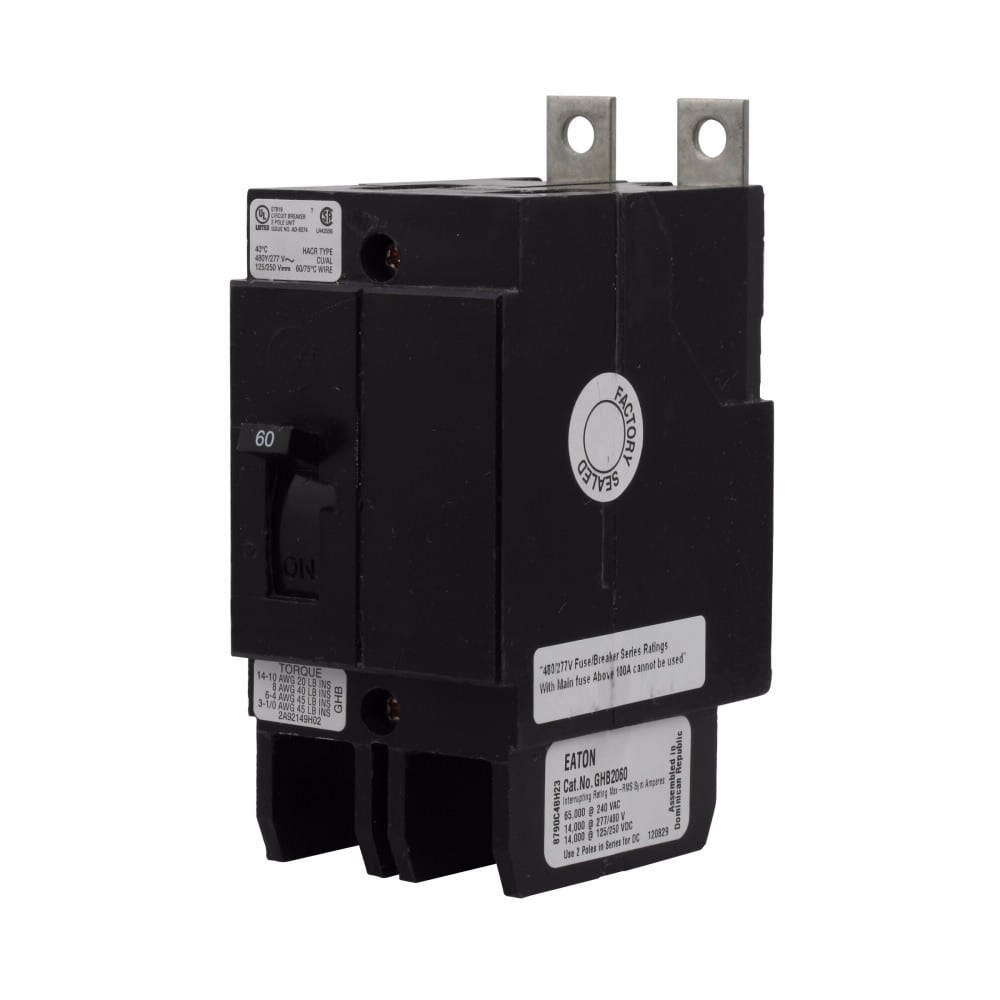

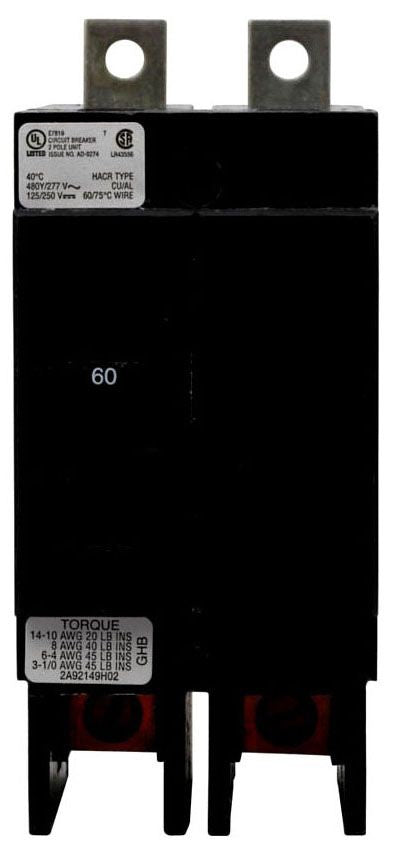

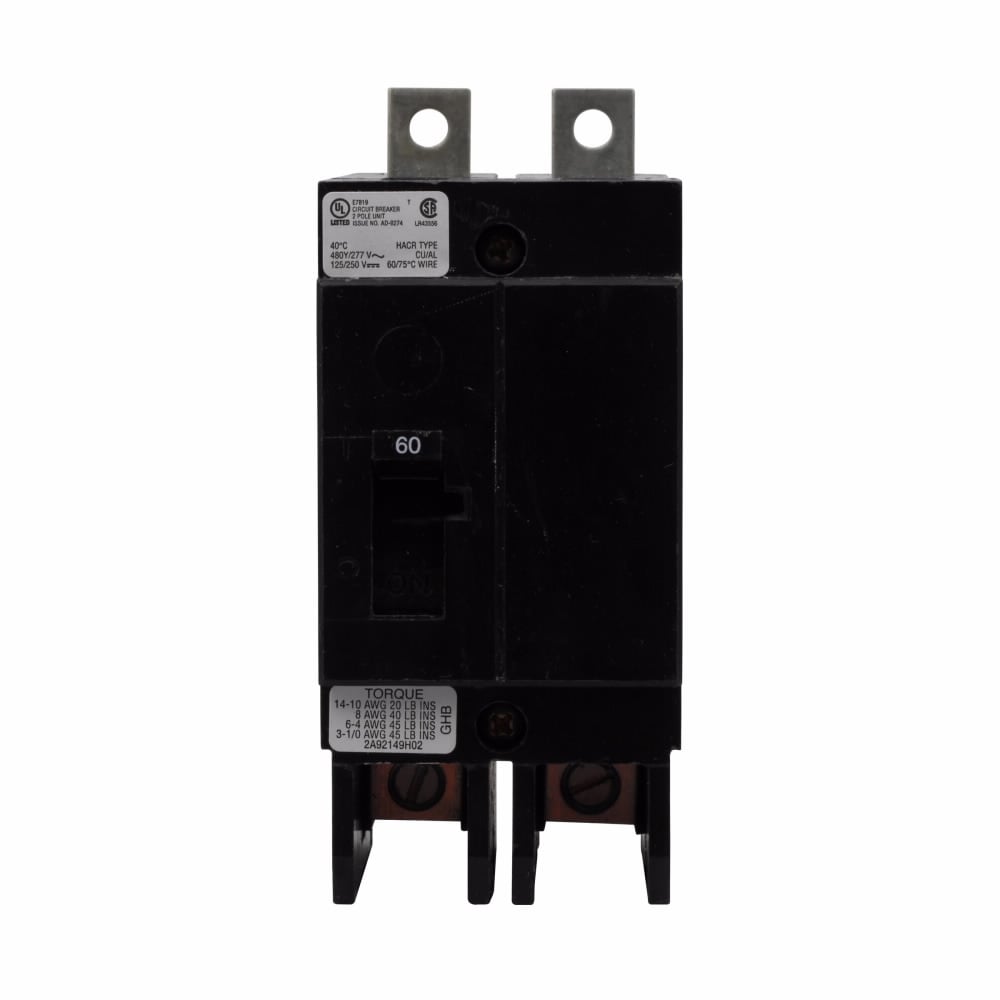

Eaton GHB2060 Circuit Breaker CKT Case MLD 60A 65/14kA 2 G

Product Description

The Eaton GHB2060 is a molded case circuit breaker with a current rating of sixty amperes and a voltage rating of four hundred eighty Y/two hundred seventy-seven volts AC and one hundred twenty-five/two hundred fifty volts DC. This two-pole breaker features a fixed thermal and fixed magnetic trip design, allowing for reliable performance in demanding applications.

• Current rating: sixty amperes
• Voltage rating: four hundred eighty Y/277 VAC and one hundred twenty-five/two hundred fifty VDC
• Interrupt rating: sixty-five kA (four hundred eighty Y/277 VAC) and fourteen kA (two hundred forty VAC)

Product Highlights

The Eaton GHB2060 is suitable for panelboard and switchboard installations, making it ideal for branch circuit protection. It is UL listed and meets or exceeds North American standards.

Product Information

Standard Information

• Brand: Eaton
• Manufacturer Part Number: GHB2060

Technical Specifications

• Type: GHB
• Frame: G
• Phase: 3
• Series: C Series
• Trip Type: Fixed Thermal/Fixed Magnetic/Non-Interchangeable
• Wire Size: 10 to 1/0 AWG
• Dimensions: 3.7 in L x 2.9 in W x 6.2 in H
