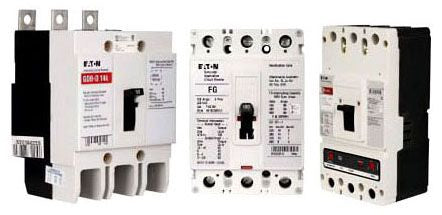

Eaton GHB2050 C Series Type GHB Molded Case Circuit Breaker 50A 65/14KA 2 Poles

Product Description

The Eaton GHB2050 is a molded case circuit breaker designed for reliable protection in electrical systems. This 50 amp breaker operates at a voltage rating of 480Y/277 VAC and 125/250 VDC. It features a fixed thermal and fixed magnetic trip type and is suitable for a range of applications including panelboards and motor control centers.

• Two poles for dependable operation
• Interrupt rating of 65/14 kA for robust circuit protection
• Compatible with wire sizes from ten to one aught AWG

Product Highlights

The Eaton GHB2050 provides essential overcurrent protection and meets North American standards for reliability.

Product Information

Standard Information

• Brand: Eaton
• Manufacturer: Eaton

Technical Specifications

• Catalog Number: GHB2050
• Voltage Rating: 480Y/277 VAC, 125/250 VDC
• Amperage Rating: 50 A
• Number of Poles: 2
• Frequency Rating: 50/60 Hz
• Trip Type: Fixed Thermal/Fixed Magnetic
• Dimensions: 3.9 in L x 2.3 in W x 4.8 in H
• Weight: 1.05 lb
