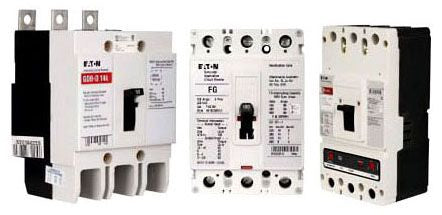

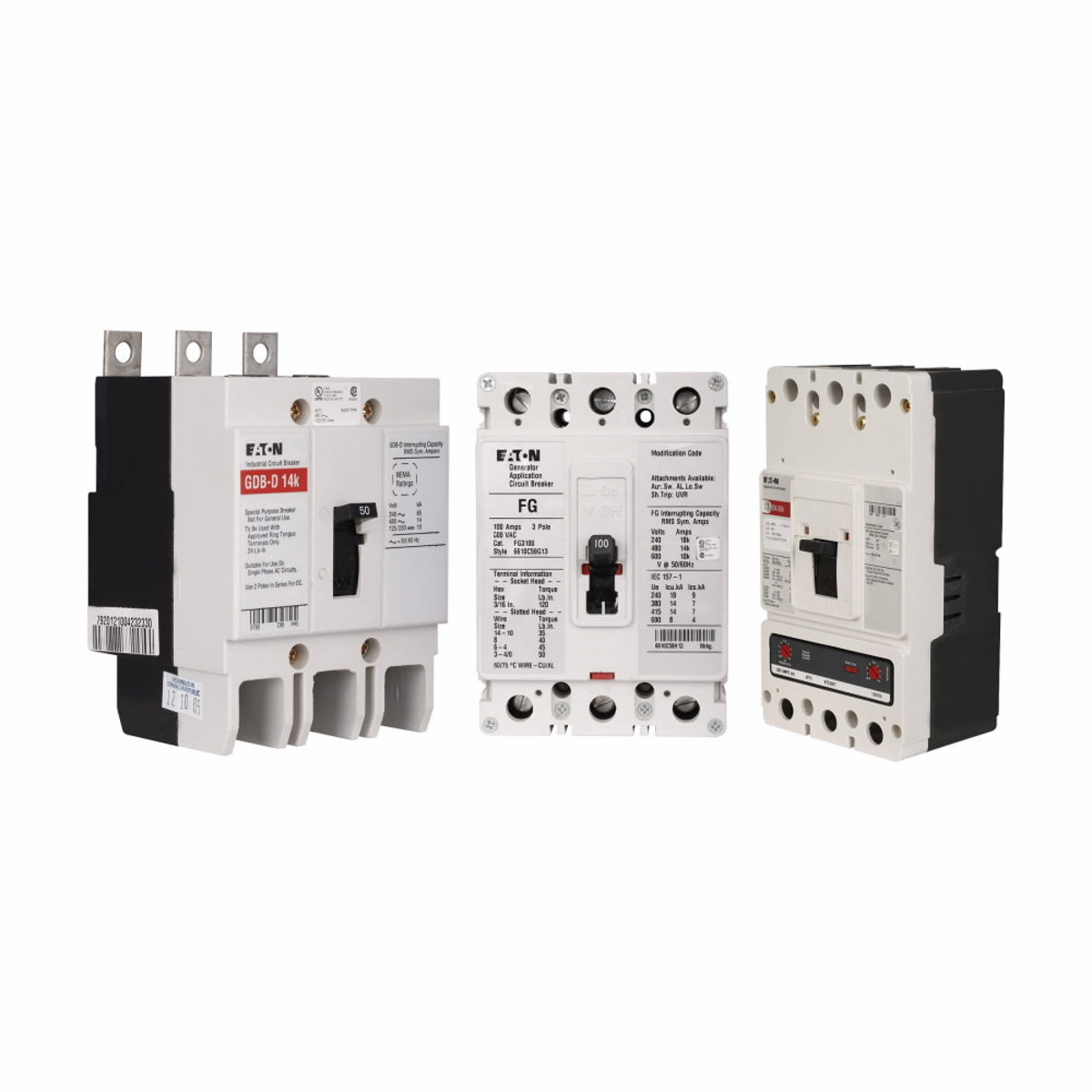

Eaton GHB2040 breaker ckt case mld 40A 65/14kA 2G

Product Description

Eaton GHB2040 is a molded case circuit breaker designed for electrical distribution systems. It operates at a voltage rating of 480Y/277 VAC and 125/250 VDC, with a current rating of 40 amperes. The circuit breaker is built to manage 65/14 kA interrupt rating, providing reliable protection in various applications.

• Type GHB, Series C
• Two-pole design for dual line connections
• NEMA 4 enclosure for enhanced durability

Product Highlights

This circuit breaker is suitable for panelboards, switchboards, motor control centers, and busway applications, ensuring reliable branch circuit protection.

Product Information

Standard Information

• Manufacturer: Eaton
• Country of Origin: Dominican Republic

Technical Specifications

• Model: GHB2040
• Frame: G
• Phase: 3
• Frequency Rating: 50/60 Hz
• Trip Type: Fixed Thermal/Fixed Magnetic/Non-Interchangeable
• Dimensions: 6.2 inches L x 3.8 inches W x 2.9 inches H
• Voltage Rating: 480Y/277 VAC/125/250 VDC
