Eaton GHB2035 Molded Case Circuit Breaker 35 Amp

Product Description

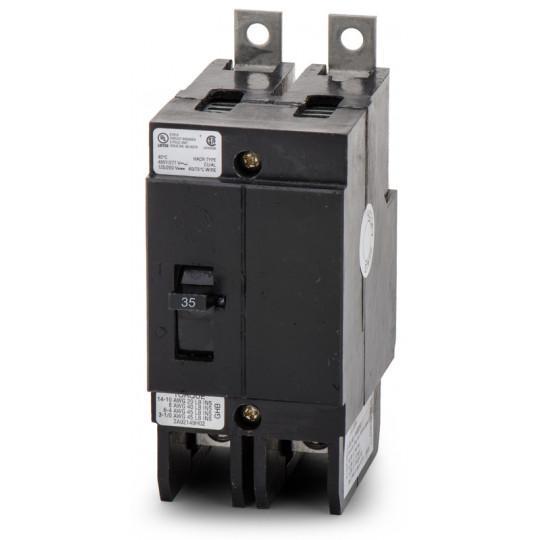

The EATON GHB2035 is a Cutler-Hammer molded case circuit breaker, designed for bolt-on installation. Rated at 35 Amp, this two-pole breaker is suitable for systems up to 600 Volt. It adheres to Federal Specifications Classification W-C375B and is UL Listed.

• Authentic Eaton/Cutler-Hammer Product
• Bolt-On
• 35 Amp

Product Highlights

Eaton GHB2035 circuit breakers provide reliable circuit protection in a compact design. Ideal for various applications requiring a 35 Amp breaker.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: GHB2035

Technical Specifications

• Product Name: Eaton Series C complete molded case circuit breaker
• Product Length: 2.63 IN
• Product Height: 4 IN
• Product Width: 2 IN
• Compliances: Federal Specifications Classification W-C375B
• Certifications: UL Listed
• Frame Size: G-frame
• Interrupt Rating: 65 kAIC at 240 Vac, 14 kAIC at 600Y/277 Vac
• Series: Series C
• Type: Molded case circuit breaker
• Frame: G-frame
• Circuit Breaker Type: GBH
• Frequency Rating: 50/60 Hz
• Circuit Breaker Frame Type: Complete breaker
• Voltage Rating: 600Y/277 Vac, 125/250 Vdc
• Amperage Rating: 35A
• Trip Type: Fixed thermal, fixed magnetic
• Number Of Poles: Two-pole
• Dimensions (H x W x L): 4" x 2" x 2.63"
