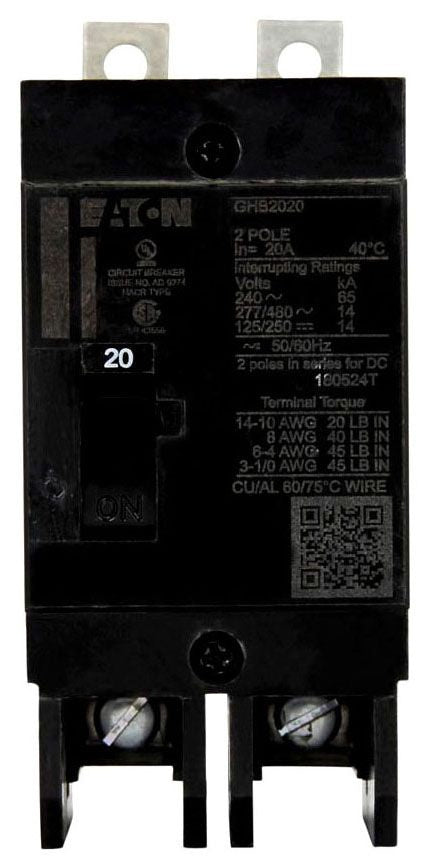

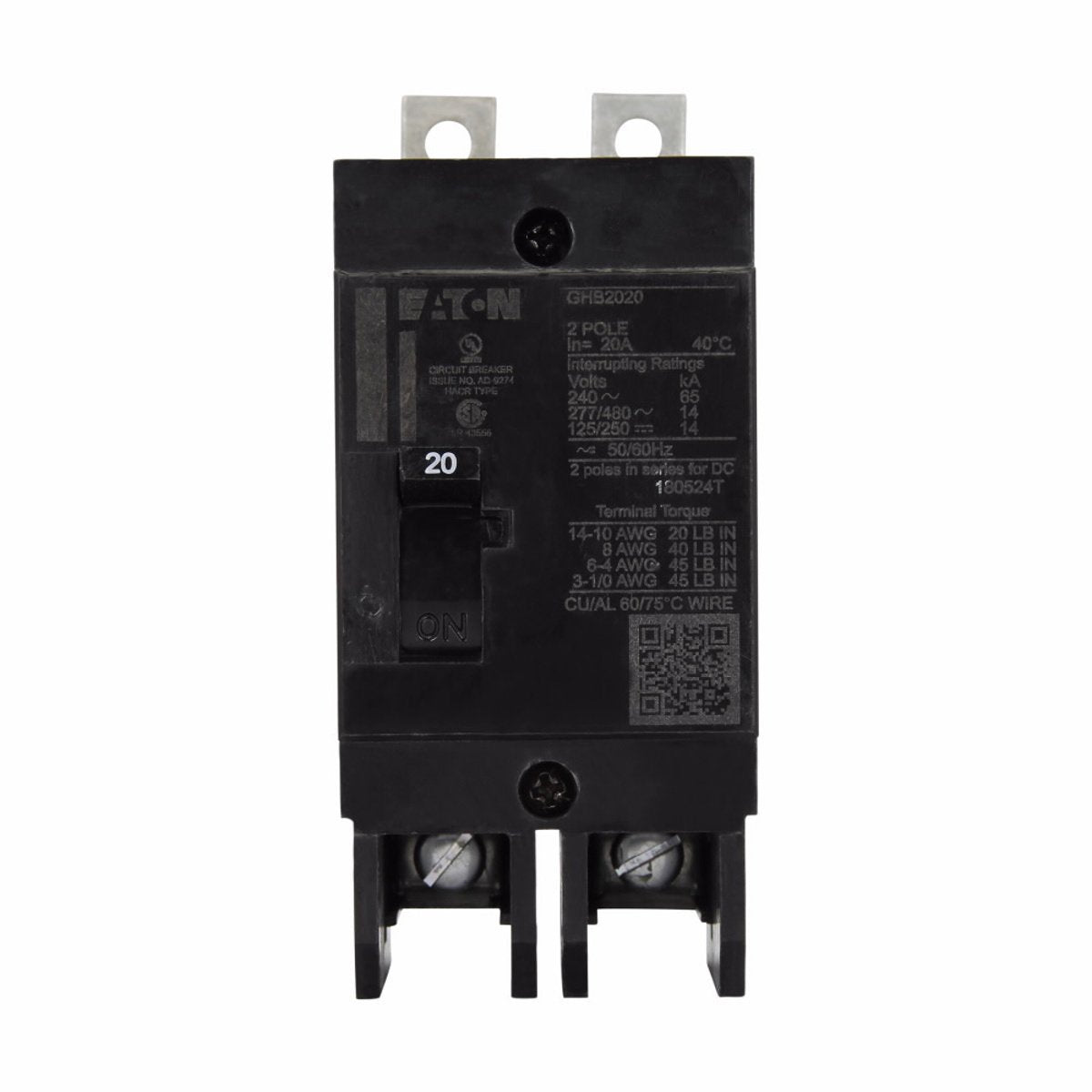

Eaton GHB2020 Circuit Breaker 20A 2P Replacement MPN GHB2020

Product Description

The Eaton GHB2020 is a molded case circuit breaker, designed for reliable circuit protection in various applications. The GHB2020 features a current rating of twenty amps and supports voltage ratings of four hundred eighty Y/ two hundred seventy-seven volts AC and one hundred twenty-five/two hundred fifty volts DC. This two-pole breaker utilizes a fixed thermal and fixed magnetic trip mechanism, effectively interrupting high fault currents.

• Rated at 20 amps with a 65/14 kA interrupt rating.
• Compatible with systems up to 600 VAC and 250 VDC.
• Designed for use in panelboards, switchboards, and motor control centers.

Product Highlights

Eaton's GHB2020 circuit breaker is essential for protecting electrical assemblies and EOEMs. Its robust design ensures longevity and dependable performance in demanding environments.

Product Information

Standard Information

• Brand: Eaton
• Manufacturer Part No: GHB2020

Technical Specifications

• Frame Type: G
• Amperage Rating: 20 A
• Voltage Rating: 480Y/277 VAC, 125/250 VDC
• Interrupt Rating: 65 kA at 240 VAC, 14 kA at 480Y/277 VAC
• Number of Poles: 2
• Frequency Rating: 50/60 Hz
• Trip Type: Fixed Thermal/Fixed Magnetic/Non-Interchangeable
• Enclosure Type: NEMA 4
• Dimensions: 4.7 in L x 2.1 in W x 2.8 in H
