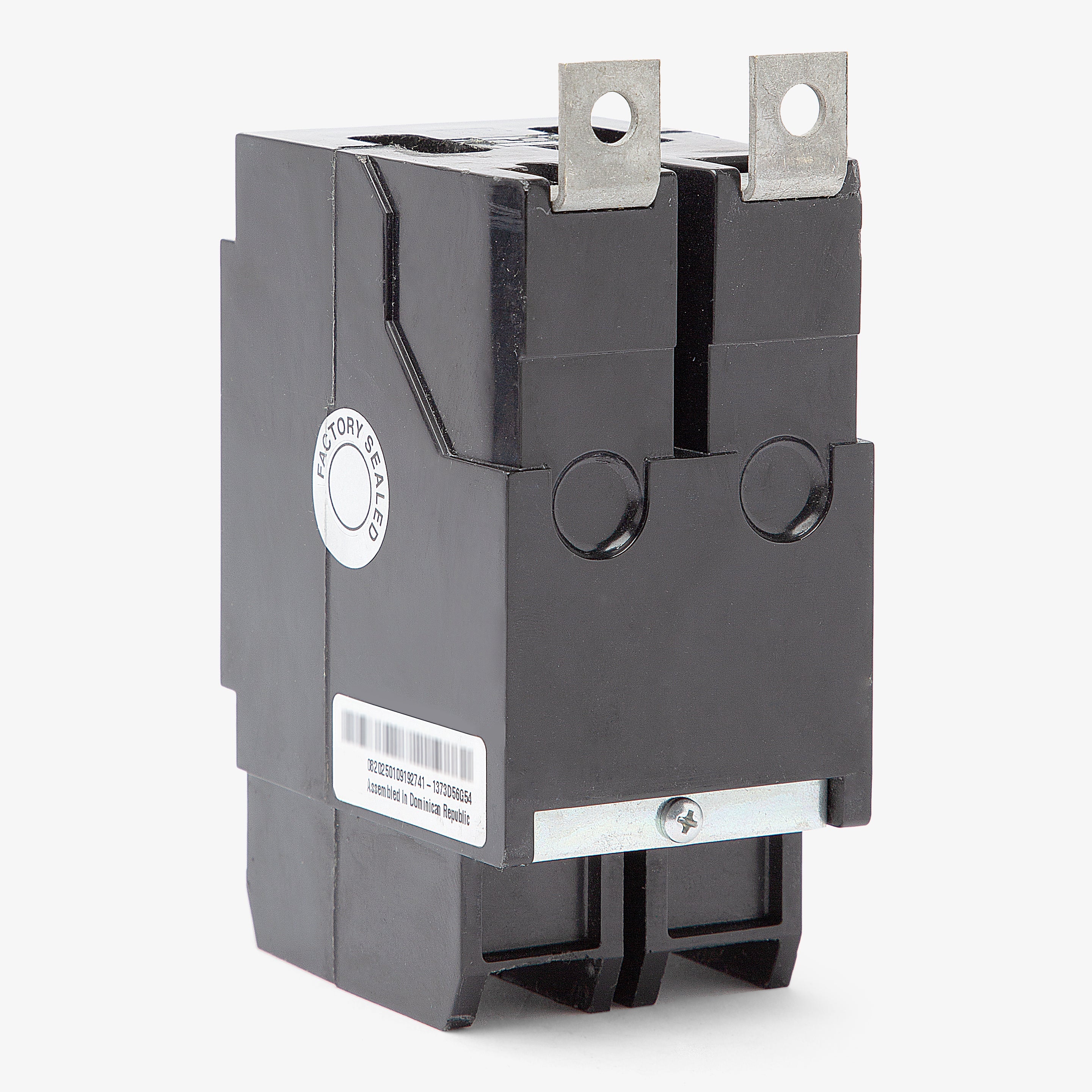

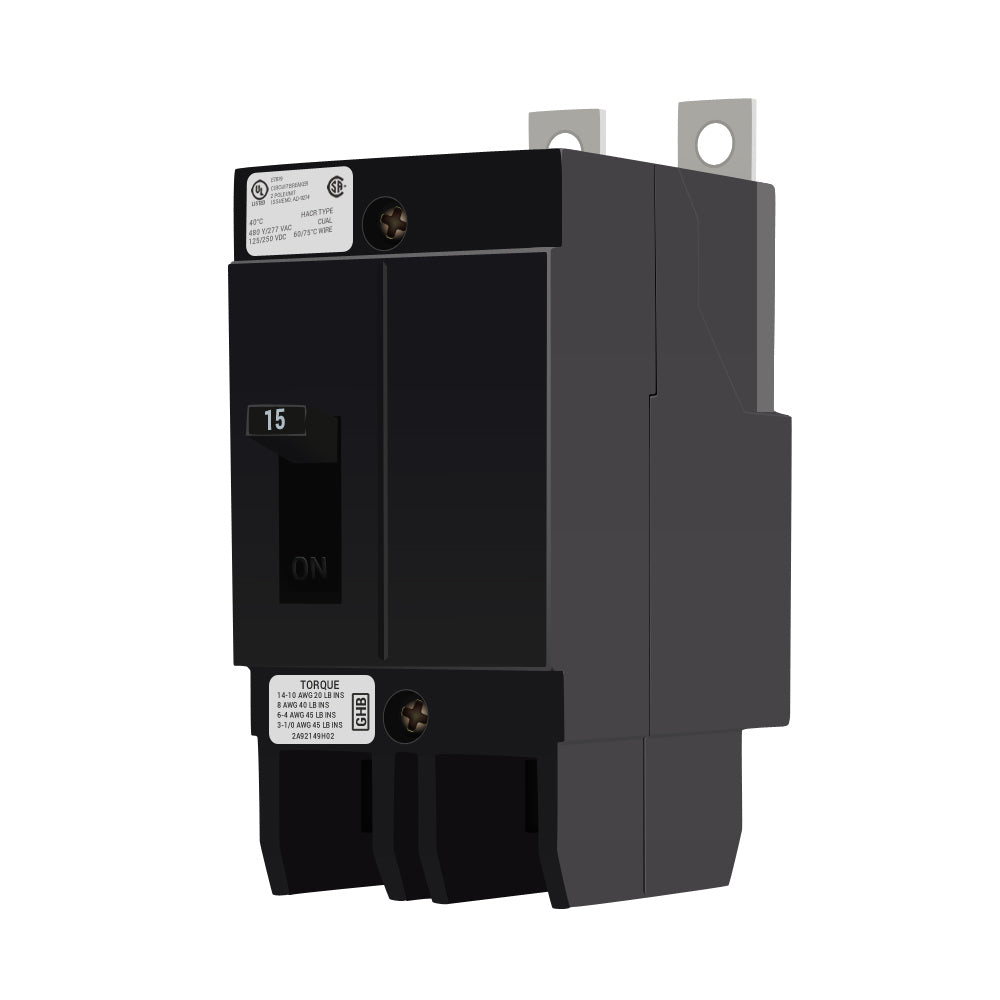

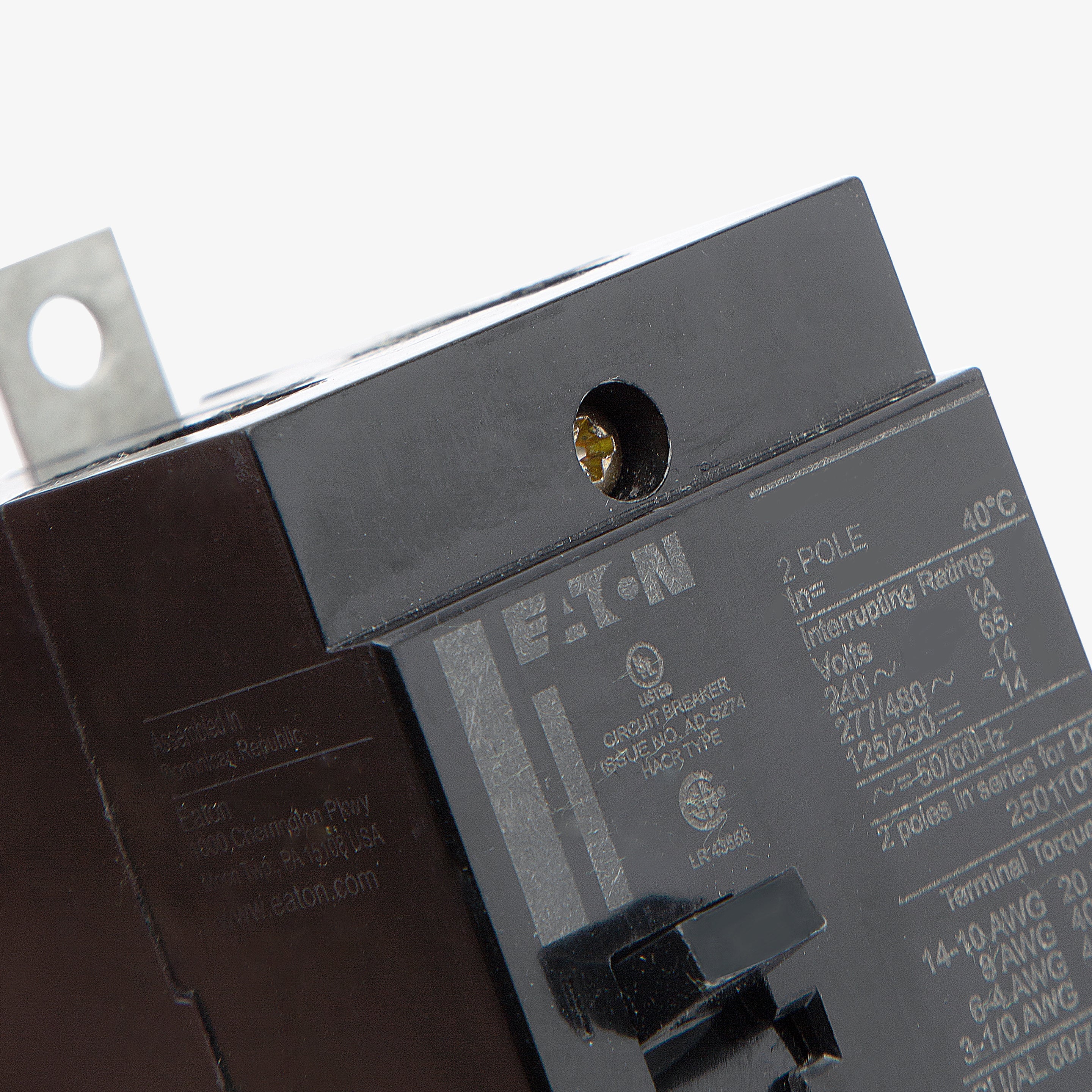

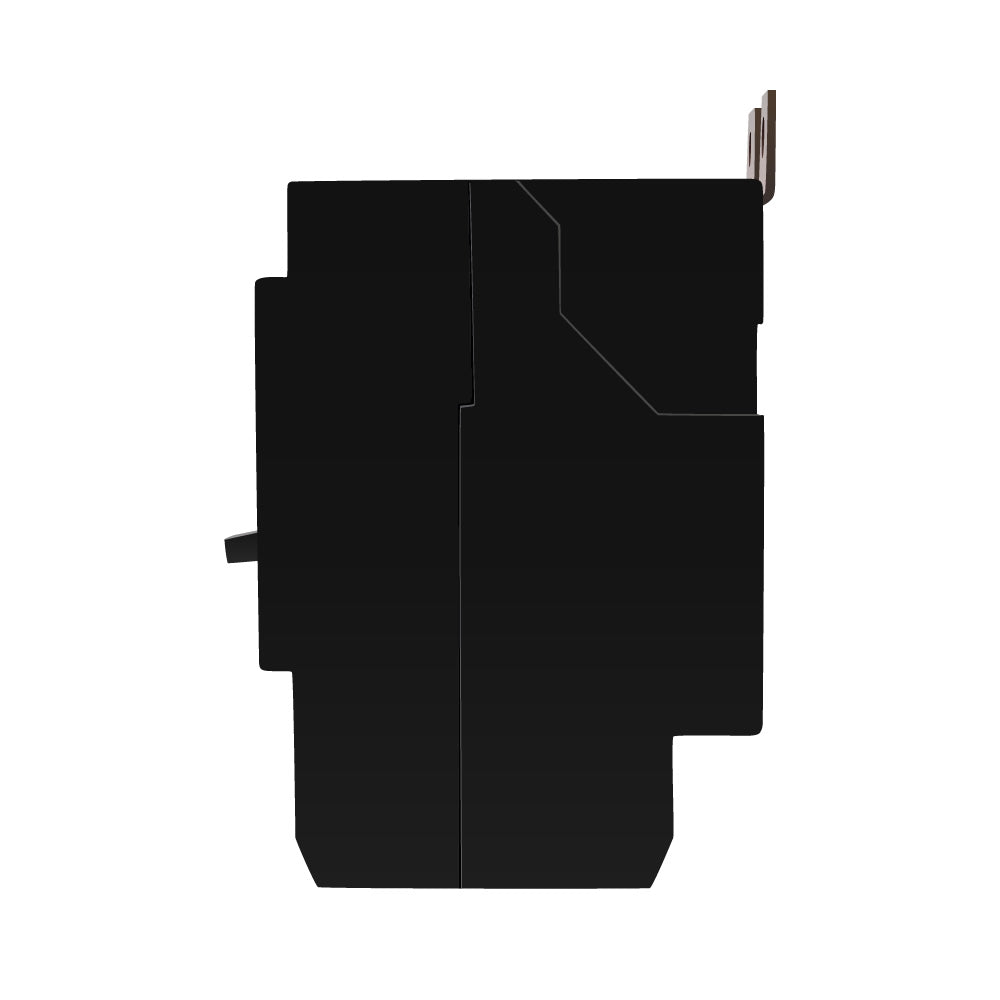

Product Description
The EATON GHB2015 series C molded case circuit breakers are used for dependable branch circuit protection in panelboard, switchboard, motor control center, and busway applications. They are suitable for systems up to 600 VAC/250 VDC. The molded case circuit breaker has had proven user acceptance for over 20 years.
- Patented contact design features high speed blow open action
- Significantly outperforms the calculations listed in IEEE standard 1584-2002
- Line/Load connection
Product Highlights
The EATON GHB2015 circuit breaker provides reliable circuit protection and meets North American standards.
Product Information
Standard Information
-
Brand: EATON
-
Manufacturer Part Number: GHB2015
Technical Specifications
-

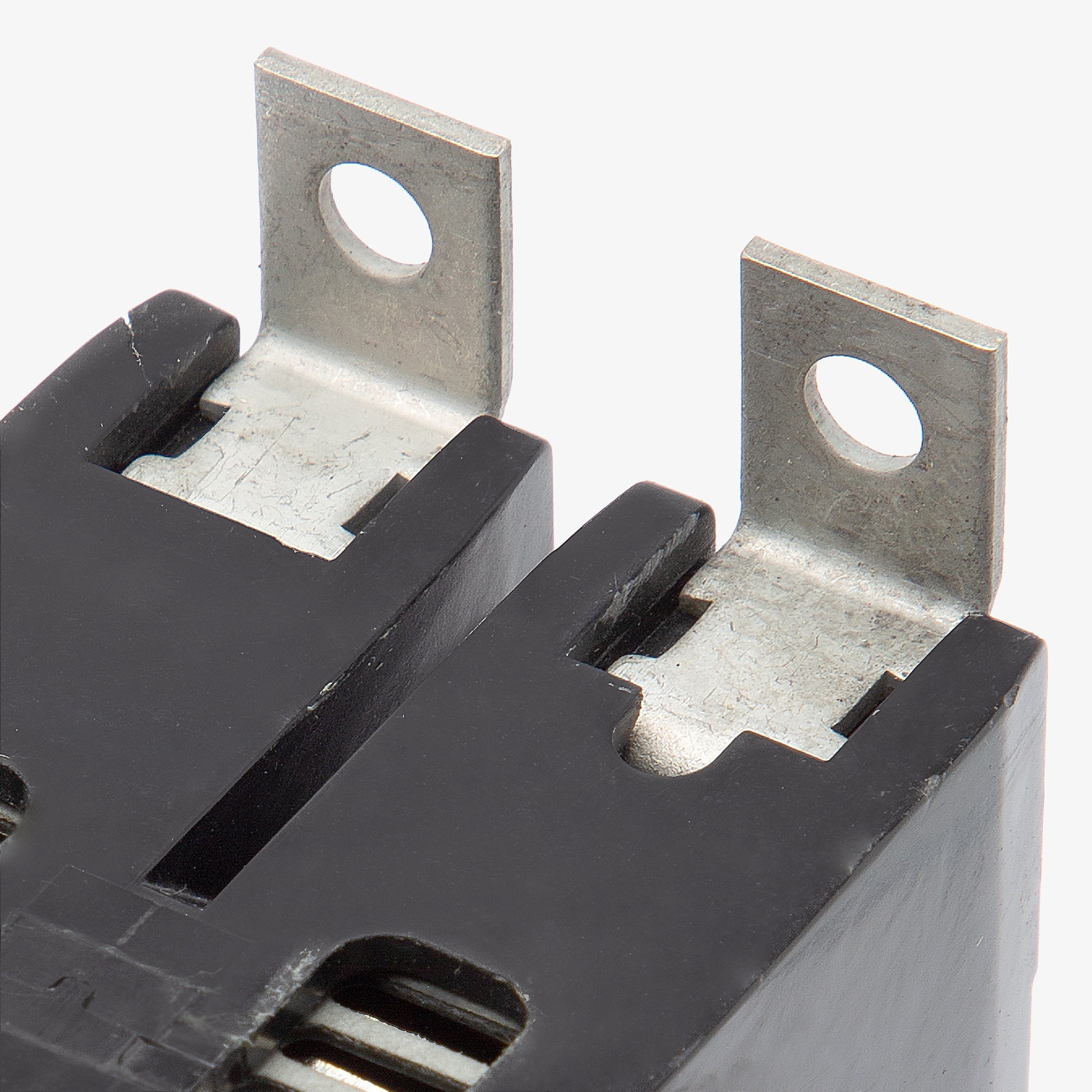

Connection Type: Line/Load
-
Frame: G
-
Frequency Rating: 50/60 Hz
-
Mounting Type: Bolted-On
-
Phase: 3
-
Series: C Series
-
Temperature Rating: 40 deg C
-
Type: Type GHB
-
Wire Size: 14 to 10 AWG
-
Voltage Rating: 480Y/277 VAC/125/250 VDC
-
Amperage Rating: 15 A
-
Interrupt Rating: 65/14 kA
-
Number of Poles: 2
-
Trip Type: Fixed Thermal/Fixed Magnetic/Non-Interchangeable
-
Application: Circuit Protection Applications
-
Product Length/Depth: 2.63 in
-
Product Height: 4 in
-
Product Width: 2 in
-
Product Type: Molded case circuit breaker
-
Circuit breaker type: GHB
-
Circuit breaker frame type: Complete breaker
-
AIC Ratings: 14kA@480V
-
Functions: LI - Long-Time and Instantaneous
-
Protection: Thermal Magnetic
-
Mounting Style: Bolt-On
-
Current Type: AC/DC
-
Model: GHB2015
-
Item Height: 4 in
-
Item Width: 2 in
-
Frame Type: G Frame
-
AIC Rating: 65kA @ 240VAC, 14kA @ 480Y/277VAC, 14kA @ 125/250VDC
-
Terminal Type: Lugs
-
For Use With: Eaton Pow-R-Line C Panelboards, Switchboards, Motor Control Centers
-
Trip Technology: Thermal Magnetic
-
Trip Function Code: LI
-
Trip Function: Long-Time, Instantaneous
-
Trip Adjustability: Fixed Thermal, Fixed Magnetic
-
Wire Gauge: 14-10 AWG (Cu/Al)
-
Max Wire: 10 AWG
-
Min Wire: 14 AWG
-
Available Options: Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch
-
Accessories: Load Side Lugs Included
-
Standards: CSA C22.2 No. 5, Federal Specification W-C-375B, NEMA AB 1, UL 489
-
Approval: CSA, UL
-
Temp Rating: 40C
-
Construction Features: HACR Rated, Reverse Feed, Non-Interchangeable Trip
