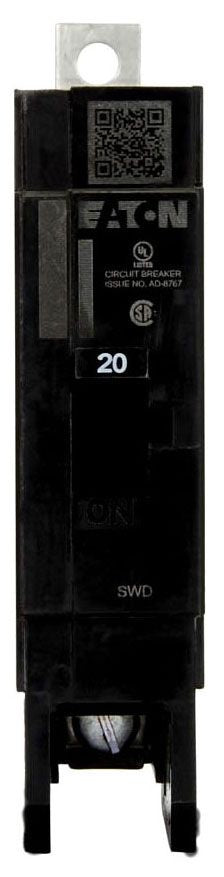

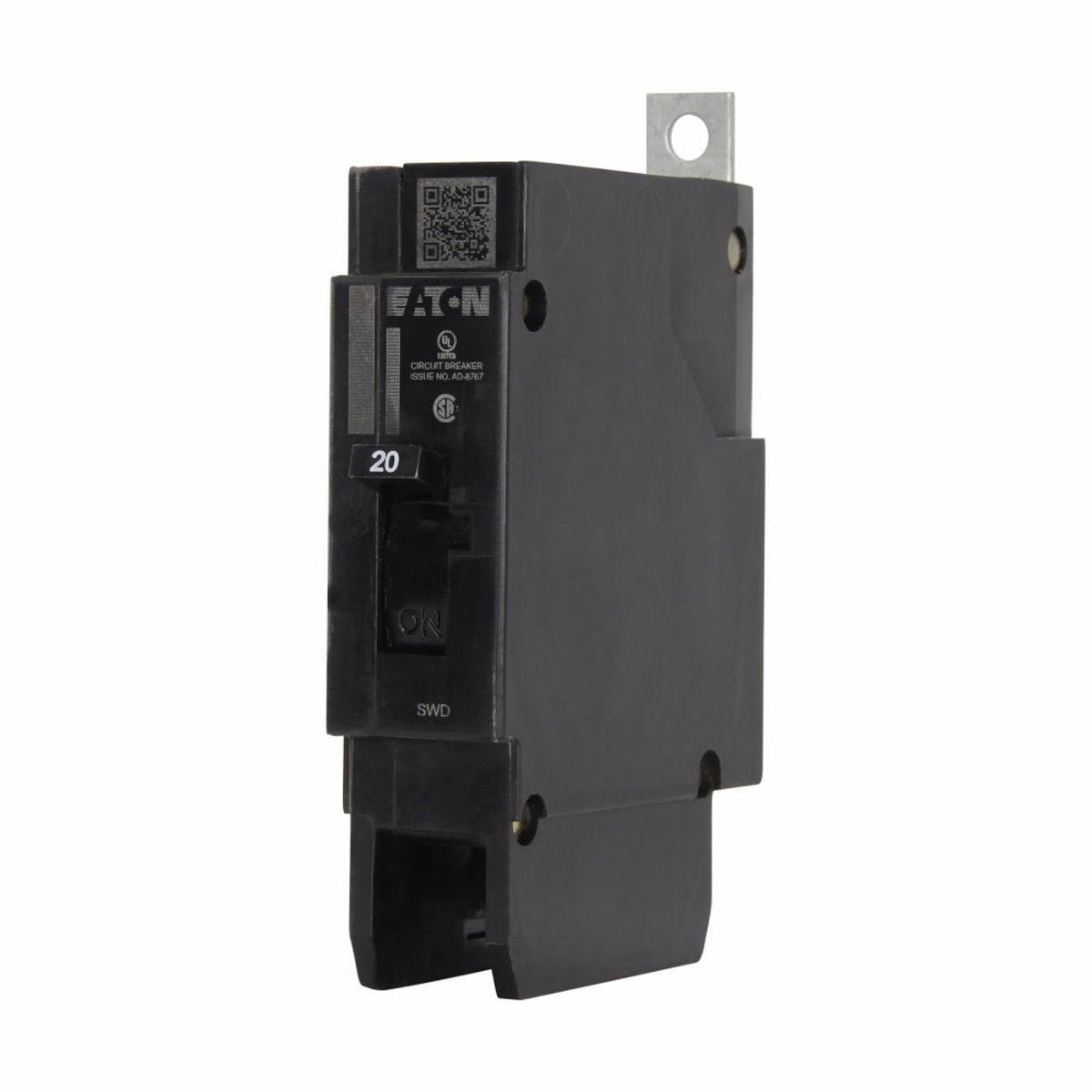

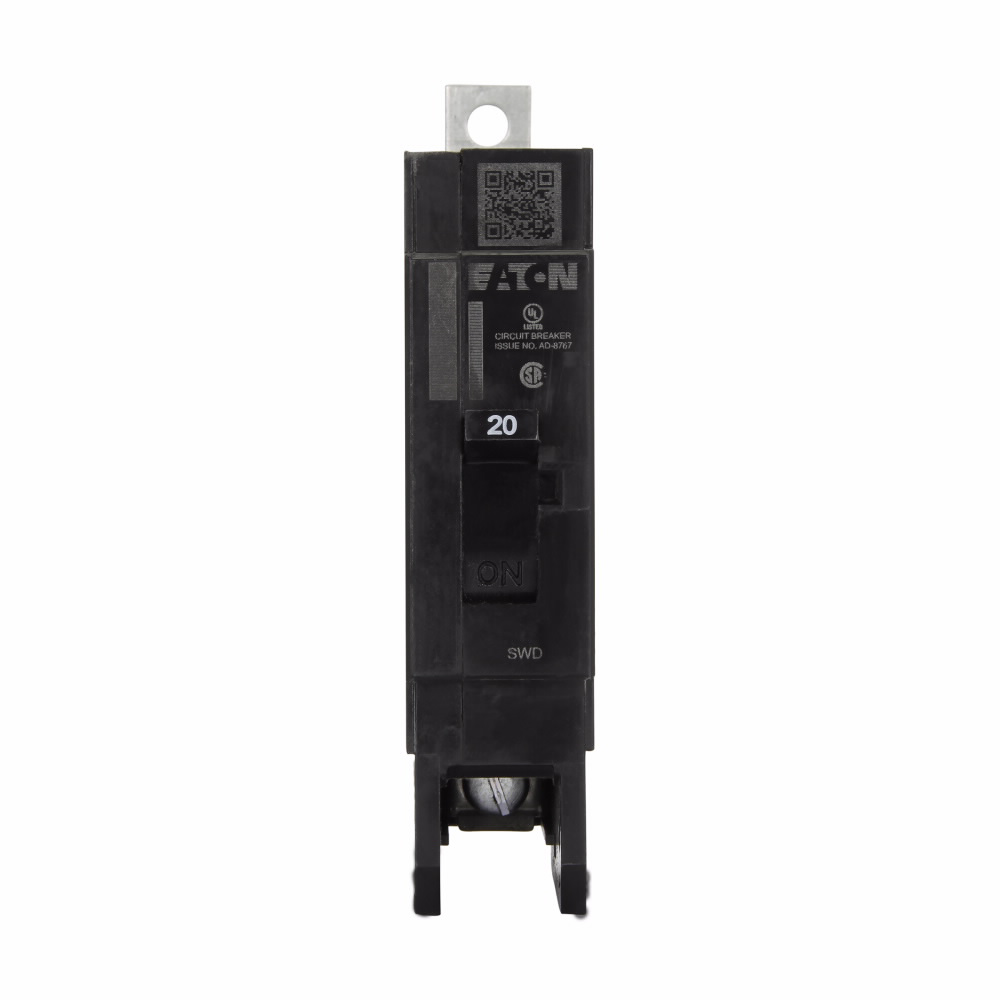

Eaton GHB1020 Series C G Frame Bolt-On Molded Case Circuit Breaker 20 Amp 277 Vac 125 Vdc 14 kAIC

Product Description

Eaton GHB1020 is a Series C molded case circuit breaker. It is a G-frame, bolt-on type designed for various applications including panelboards and motor control centers. This circuit breaker operates at 20 Amps with a voltage rating of 277 Vac and 125 Vdc. It features fixed thermal and magnetic trip types. The interruption rating is fourteen kAIC at 277 Vac. This means it can handle fault currents effectively, providing reliable protection in electrical systems.

• 20 Amp current rating for reliable performance
• Fixed thermal and fixed magnetic trip types
• Compatible with 277 Vac and 125 Vdc systems

Product Highlights

Eaton GHB1020 is suitable for ensuring safety and reliability in electrical installations. It effectively protects against overloads and short circuits.

Product Information

Standard Information

• Brand: Eaton
• Type: Molded Case Circuit Breaker

Technical Specifications

• Current Rating: 20 Amp
• Voltage Rating: 277 Vac, 125 Vdc
• Interrupt Rating: 14 kAIC at 277 Vac
• Number of Poles: 1 Pole
• Frame: G
• Frequency Rating: 50/60 Hz
• Mounting Type: Bolt-on
• Temperature Rating: 40 deg C
