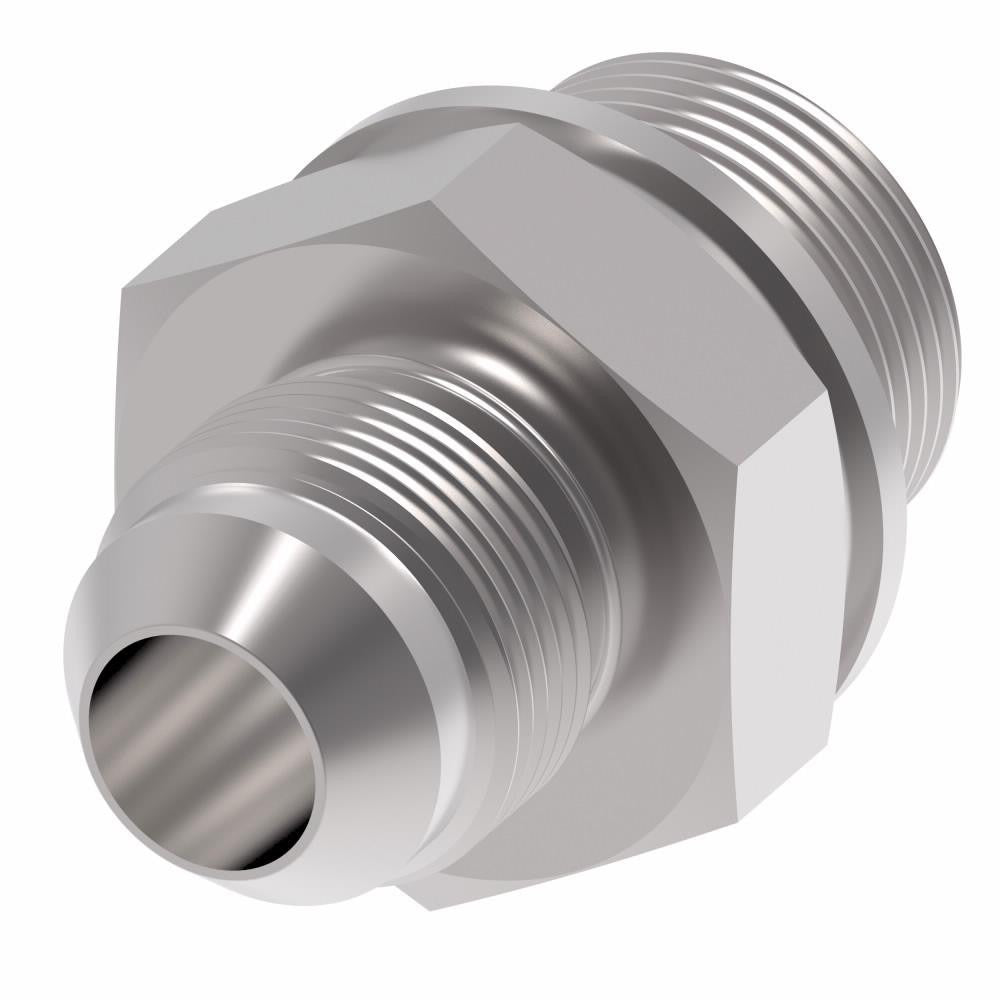

Eaton GG108-NP08-22 Steel Flared Tube Adapter 1/2 in M22

Product Description

The EATON GG108-NP08-22 is a steel flared tube adapter designed to connect hydraulic or fluid lines with a 1/2-inch tube outside diameter to a Male ISO 9974 M22 threaded port using a 37-degree flare end connection. At 1.58 inches in overall length and weighing under a pound, this compact fitting delivers a reliable seal across a wide operating temperature range of -40 degrees F to 250 degrees F. It is installed by hydraulic system technicians, industrial maintenance mechanics, and fluid power specialists working on mobile equipment, industrial machinery, or related plumbing circuits.

This adapter is suited for hydraulic and fluid power applications where a 37-degree flare tube end must transition to an ISO 9974 male metric thread. Typical install scenarios include mobile hydraulic systems, industrial fluid circuits, and equipment requiring metric port connections paired with standard JIC-style flare tubing. The fitting is sold individually per package, with a minimum order quantity of 2 units.

Key Features

• 37-degree flare end connection compatible with standard JIC-style flared tube assemblies
• Male ISO 9974 thread standard for metric port applications
• 1/2-inch tube outside diameter accommodates common hydraulic line sizing
• Steel construction provides durability in high-cycle hydraulic environments
• Operating temperature range of -40 degrees F to 250 degrees F suits a broad range of fluid systems
• Compact 1.58-inch overall length minimizes space requirements in tight plumbing layouts

Compatibility

Designed as an OEM-style replacement or new-installation fitting for hydraulic and fluid power systems requiring a 1/2-inch OD 37-degree flare tube connection to a Male ISO 9974 M22 threaded port, conforming to ISO 9974 standards.

Installation Notes

Installation should be performed by a qualified hydraulic technician or fluid power specialist familiar with ISO 9974 metric fitting standards. Depressurize and drain the hydraulic circuit fully before removing or installing any fittings. Inspect flare seats and threads for damage before assembly, and ensure the 37-degree flare cone is properly formed and seated to achieve a leak-free connection. Follow equipment manufacturer torque guidelines and applicable industry standards for hydraulic tube fitting assembly.
