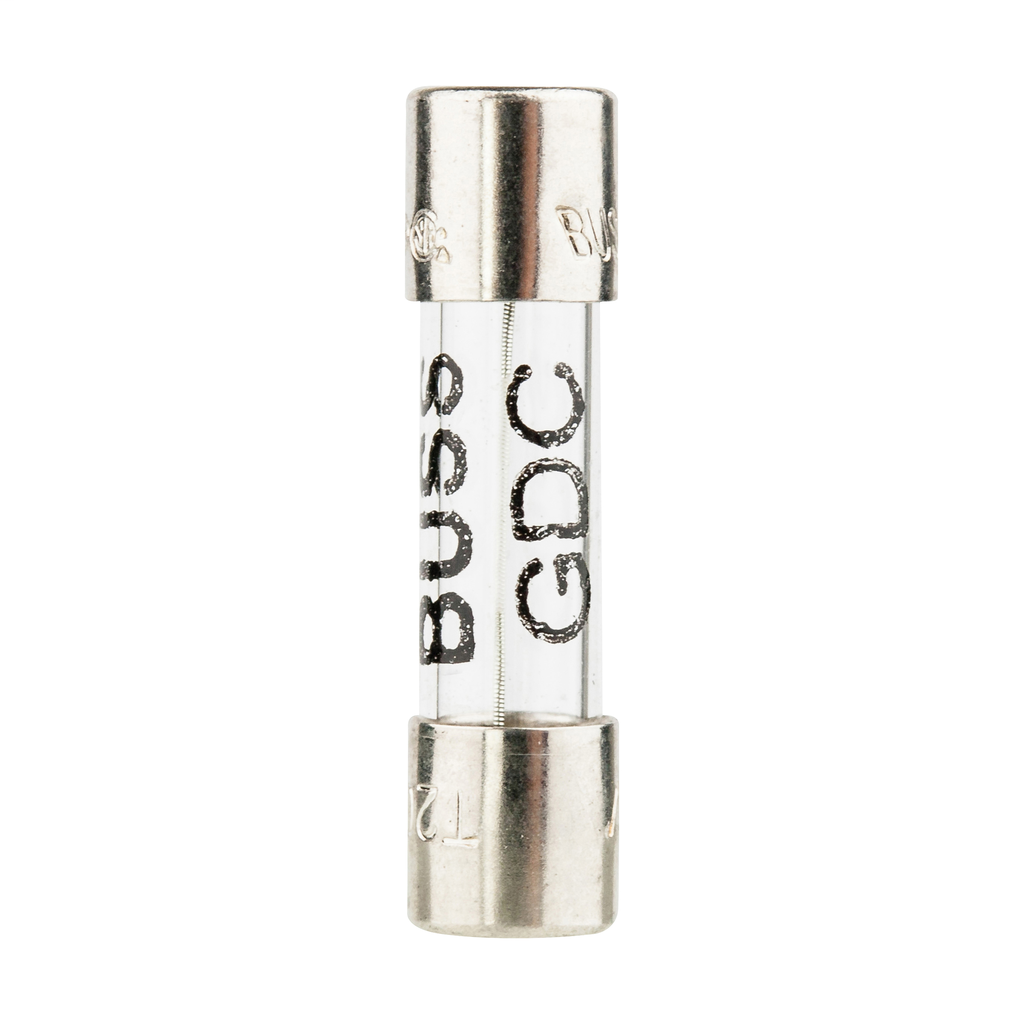

Eaton GDC-50MA Bussmann Series GDC-50MA 50 mA Small Dimension Fuse

Product Description

The Eaton GDC-50MA is a small dimension fuse designed for electronic circuits. This Bussmann Series fuse offers a time delay feature suitable for applications where intermittent surges may occur. Its compact size makes it ideal for limited space installations.

• 50 mA amperage rating
• Voltage rating of 250 VAC/32 VDC
• Interrupt rating of 35 A

Product Highlights

This fuse is part of the GDC series and features a cylindrical glass body with nickel plated brass end caps. It is non-indicating and non-rejection, built for reliable performance in various electronic applications.

Product Information

Standard Information

• Brand: Eaton
• Manufacturer: Bussmann Mfg.

Technical Specifications

• Amperage Rating: 50 mA
• Voltage Rating: 250 VAC/32 VDC
• Body Size: 5.2 mm Diameter x 20 mm Height
• Body Type: Cylindrical
• Element: Single
• Frequency Rating: 50 Hz
• Terminal Type: Ferrule
• Response Time: 2 min, 200 ms, 10 s, 40 ms, 3 s, 10 ms, 300 ms
• Standards/Approvals: IEC 60127-2, cULus Guide JDYX2/JDYX8, File No. E19180 Recognized
