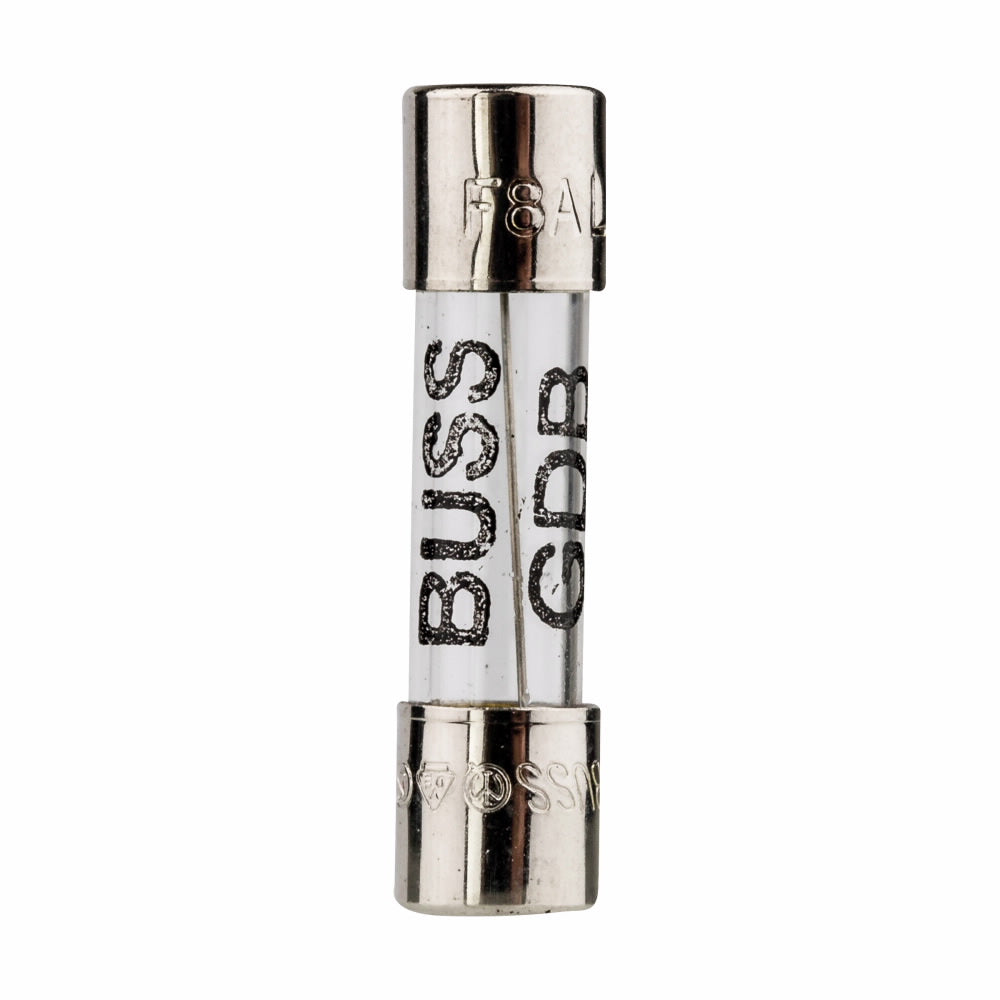

Eaton GDB-8A Bus Fuse 8 A 250V MIN

Product Description

Eaton GDB-8A is a fast-acting bus fuse rated at eight amperes for a voltage of up to two hundred fifty volts alternating current or thirty-two volts direct current. This fuse features a cylindrical body that is designed for electronic circuit protection.

• Fast-acting design for reliable circuit protection
• Compatible with Bussmann Series fuse holders and clips
• Features a glass construction with a cylindrical body type

Product Highlights

Ideal for overcurrent protection in electronic circuits, this fuse ensures efficient operation and safety.

Product Information

Standard Information

• UPC: 05171243185
• Category: Electrical > Fuses, Blocks & Holders > Fuses Special Purpose > Fast Acting Fuses

Technical Specifications

• Amperage Rating: 8 A
• Application: Electronic Circuits
• Body Size: 5.2 mm Dia x 20 mm H
• Body Type: Cylindrical
• Element: Single
• Frequency Rating: 50 Hz
• Indicating: Non-Indicating
• Material: Glass
• Mounting Type: Clip/Holder
• Response Time: 30 min, 400 ms, 50 ms, 2 s, 10 ms, 40 ms
• Series: GDB
• Standards/Approvals: UL Guide JDYX2, File No. E19180 Recognized; VDE File No. 40014109; IEC 60127-2; cULus Recognized; CSA Certified; SEMKO Certified; BSI Certified; IMQ Certified; CCC Certified
• Terminal Type: Ferrule
• Type: Small Dimension
• Voltage Rating: 250 VAC, 32 VDC
