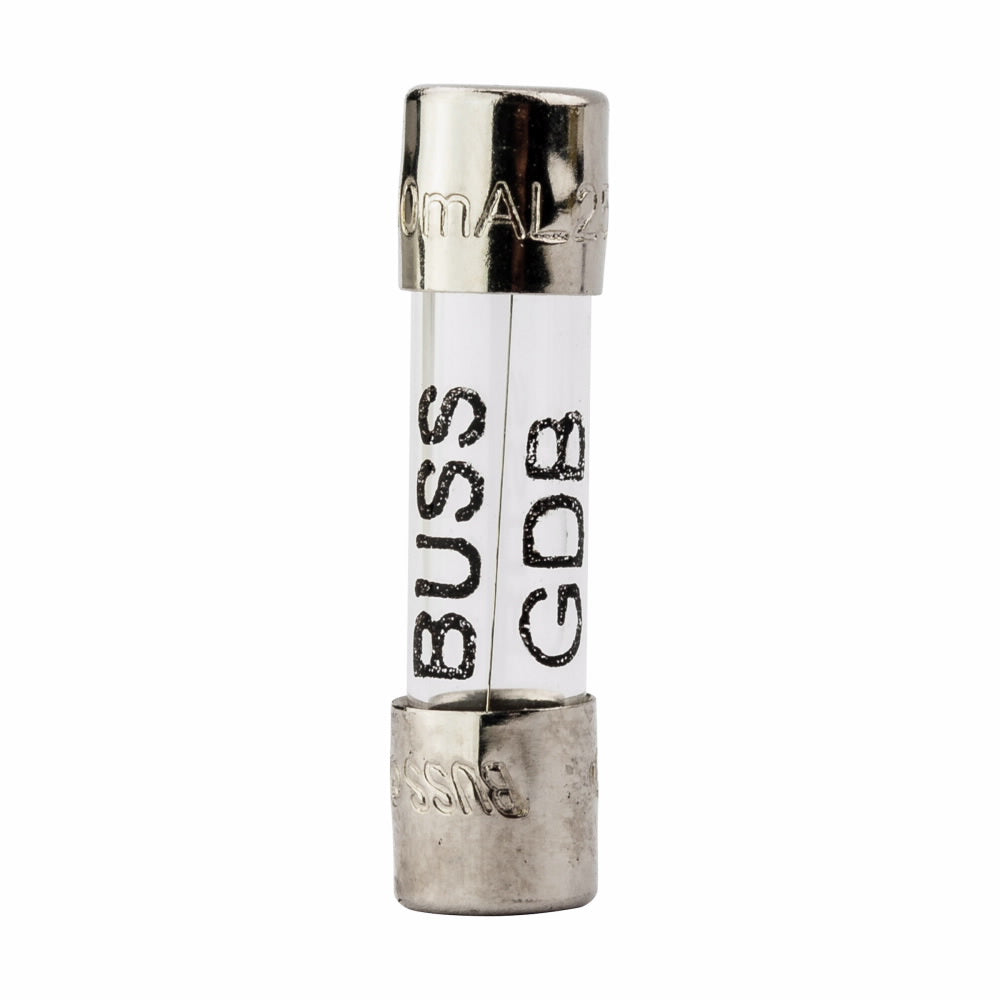

Eaton GDB-6.3A GDB6.3A BUS 250V MINIATURE 6.3A

Product Description

The Eaton GDB-6.3A is a fast acting fuse designed for electronic circuits. This product has a current rating of 6.3 A and operates at a voltage of 250 VAC and 32 VDC. It is designed to meet IEC 60127-2 standards, ensuring reliability and safety in various applications.

• Fast acting feature for protection against overcurrent
• Compact cylindrical body measuring 5.2 mm in diameter by 20 mm in height
• Suitable for use with Bussmann Series fuse holders or clips

Product Highlights

This fuse provides quick response times of up to 300 milliseconds, ensuring efficient protection for sensitive electronic components.

Product Information

Standard Information

• Manufacturer: Eaton
• UPC: 05171243184

Technical Specifications

• Amperage Rating: 6.3 A
• Voltage Rating: 250 VAC, 32 VDC
• Frequency Rating: 50 Hz
• Body Size: 5.2 mm Dia x 20 mm H
• Body Type: Cylindrical
• Element: Single
• Material: Glass
• Mounting Type: Clip/Holder
• Response Time: 60 min, 30 min, 300 ms, 50 ms, 20 ms, 10 ms, 2 s
• Indicating: Non-Indicating
• Rejection: Non-Rejection
• Standards/Approvals: UL Guide JDYX2, VDE, IEC 60127-2
• Terminal Type: Ferrule
• Series: GDB
