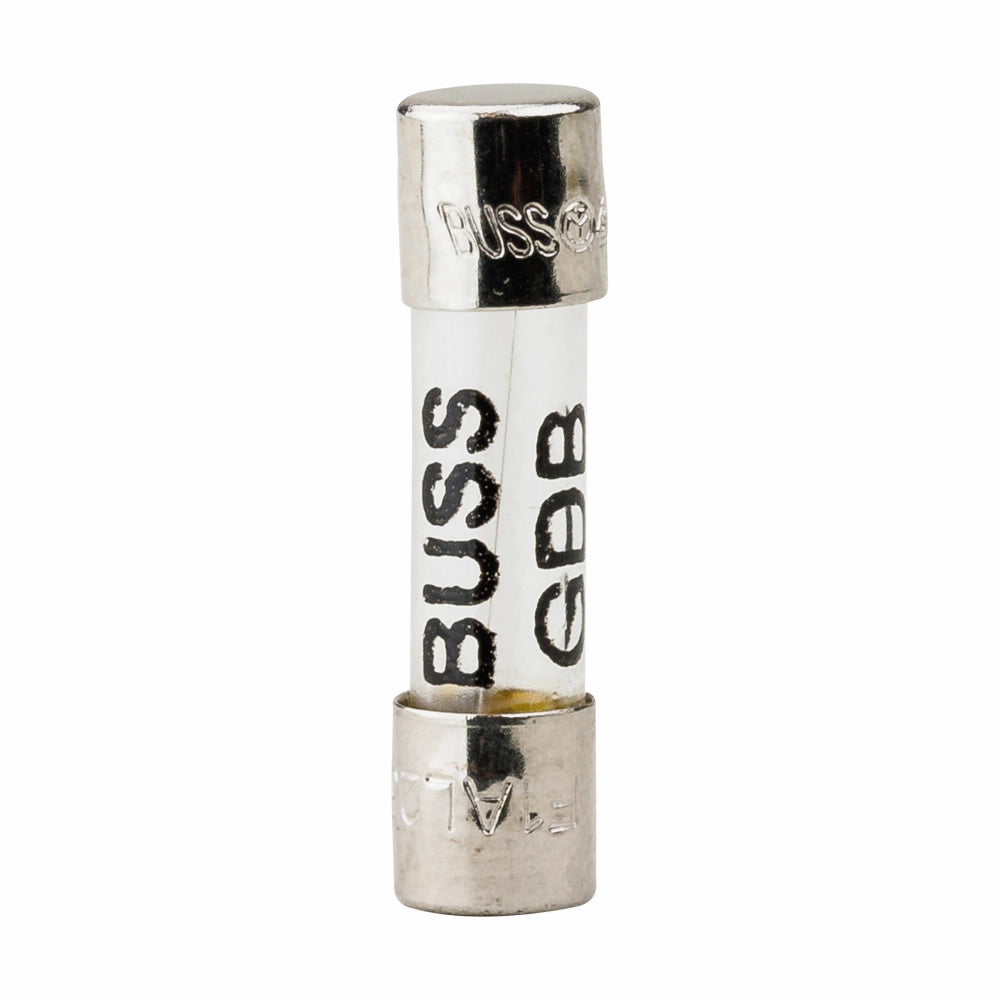

Eaton GDB-32MA BUS 250V Miniature Fuse

Product Description

Eaton GDB-32MA is a fast acting miniature fuse designed for electronic circuits. This fuse has an amperage rating of thirty-two milliamperes and operates at a voltage rating of two hundred fifty VAC and thirty-two VDC. It provides reliable protection against overloads and failures.

• Fast acting design for immediate response
• Low breaking capacity for minimal disruption
• Cylindrical body with glass construction

Product Highlights

The GDB-32MA fuse features a compact design suitable for various electronic applications.

Product Information

Standard Information

• Manufacturer: Eaton
• MPN: GDB-32MA

Technical Specifications

• Amperage Rating: 32 mA
• Application: Electronic Circuits
• Body Size: 5.2 mm Diameter x 20 mm Height
• Body Type: Cylindrical
• Element: Single
• Frequency Rating: 50 Hz
• Indicating: Non-Indicating
• Material: Glass
• Mounting Type: Clip/Holder
• Response Time: 60 min, 30 min, 500 ms, 100 ms, 20 ms, 10 ms, 3 ms
• Terminal Type: Ferrule
• Type: Small Dimension
• Voltage Rating: 250 VAC, 32 VDC
• Standards/Approvals: UL Guide JDYX2, File No. E19180 Recognized; VDE File No. 40014109; IEC 60127-2; cULus Recognized; CSA Certified; SEMKO Certified; BSI Certified; IMQ Certified; CCC Certified
