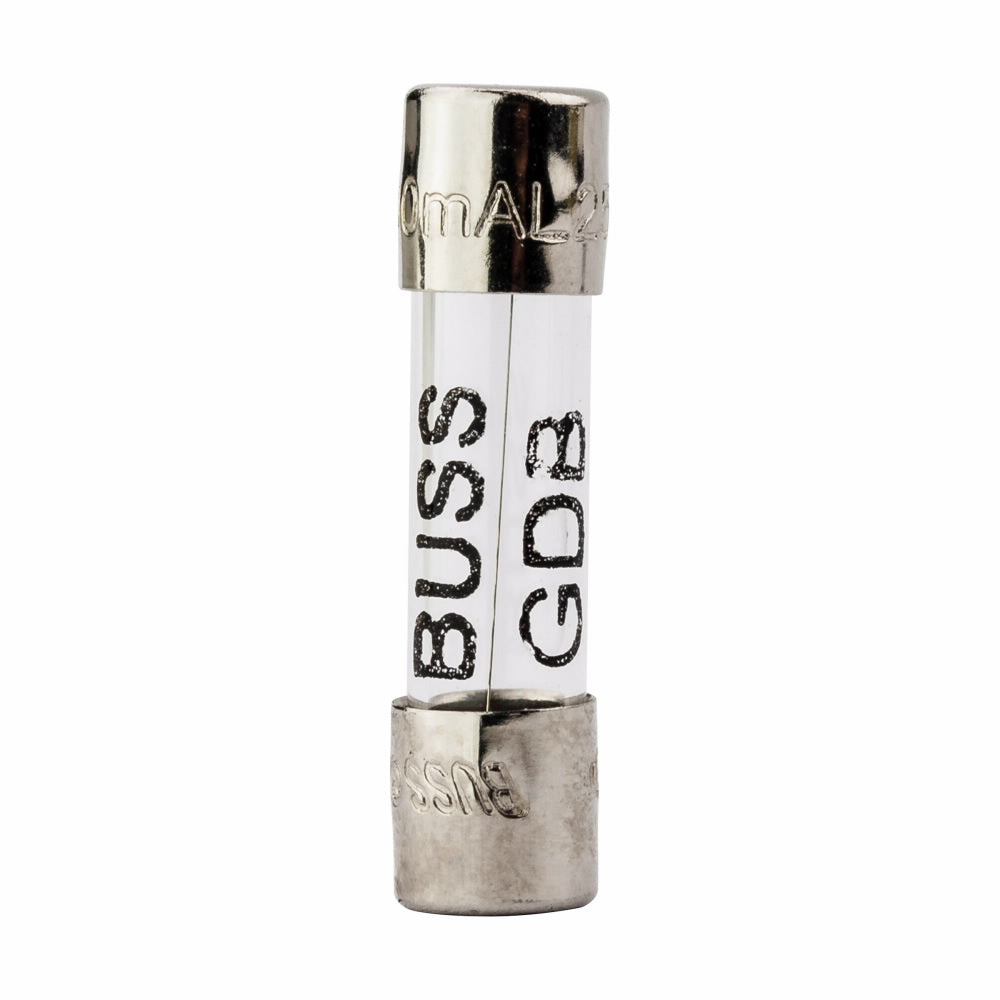

Eaton GDB-2A GDB2A BUS 250V Glass Miniature Fuse

Product Description

The Eaton GDB-2A is a Bussmann fast-acting fuse designed for electronic circuits. This small dimension fuse operates at two amperes, ideal for protection against overcurrent events. It has a voltage rating of two hundred fifty volts AC and thirty-two volts DC, with a thirty-five amp interrupt capacity.

• Fast-acting design for effective overcurrent protection
• Cylindrical body measuring five point two millimeters in diameter and twenty millimeters in height
• Ferrule terminal type for secure mounting in holders

Product Highlights

This fuse type is recognized for its efficiency in protecting electronic components from voltage spikes.

Product Information

Standard Information

• Manufacturer: Eaton
• Product SKU: 21961

Technical Specifications

• Amperage Rating: 2 A
• Voltage Rating: 250 VAC, 32 VDC
• Body Size: 5.2 mm diameter x 20 mm height
• Body Type: Cylindrical
• Response Time: 60 min, 30 min, 300 ms, 50 ms, 20 ms, 10 ms, 2 s
• Material: Glass
• Mounting Type: Clip/Holder
• Standards/Approvals: UL Guide JDYX2, IEC 60127-2,CSA Certified
