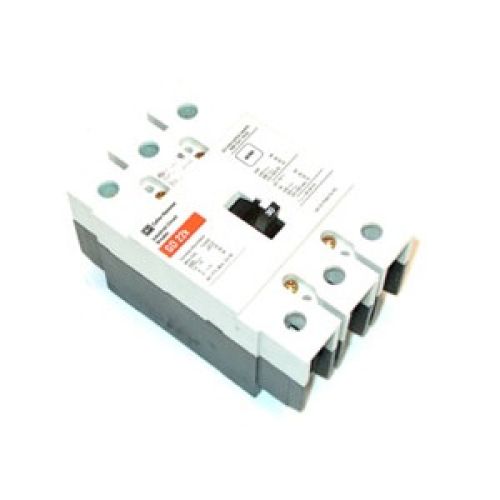

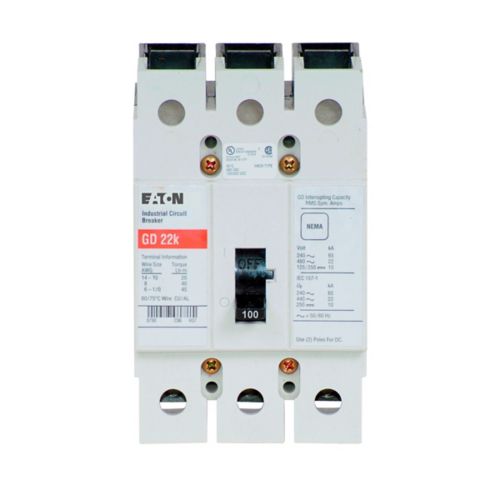

Eaton GD3100 Series C complete molded case circuit breaker 100A

Product Description

The Eaton GD3100 Series C complete molded case circuit breaker is a three-pole breaker with a 100A amperage rating. Designed with fixed thermal and fixed magnetic trip type, it provides reliable circuit protection. Suitable for use with Eaton Series C panelboards and motor control centers. It has a frequency rating of 50/60 Hz.

• Fixed thermal, fixed magnetic trip type
• Interrupt rating: 65 kAIC at 240 Vac, 22 kAIC at 480 Vac
• Suitable for reverse feed applications

Product Highlights

The Eaton GD3100 circuit breaker delivers consistent 100-amp circuit protection for commercial and industrial infrastructure.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: GD3100

Technical Specifications

• Product Name: Eaton Series C complete molded case circuit breaker
• Catalog Number: GD3100
• UPC: 786679072936
• Product Length/Depth: 2.63 in
• Product Height: 4.88 in
• Product Width: 3 in
• Certifications: UL Listed
• Product Type: Molded case circuit breaker
• Amperage Rating: 100 A
• Voltage rating: 480 Vac, 125/250 Vdc
• Trip Type: T186
• Circuit breaker type: GD
• Circuit breaker frame type: Complete breaker
• Series: Series C
• Frame: G
• Frequency rating: 50/60 Hz
• Interrupt rating: 65 kAIC at 240 Vac 22 kAIC at 480 Vac
• Number of poles: Three-pole
• Brand: Eaton / Cutler-Hammer
• Amperage: 100A
• Voltage: 480
• Poles: 3
• Phase: 3
• AIC Rating: 65kA @ 240VAC, 22kA @ 480VAC, 10kA @ 250VDC
• Mounting Style: Unit Mount

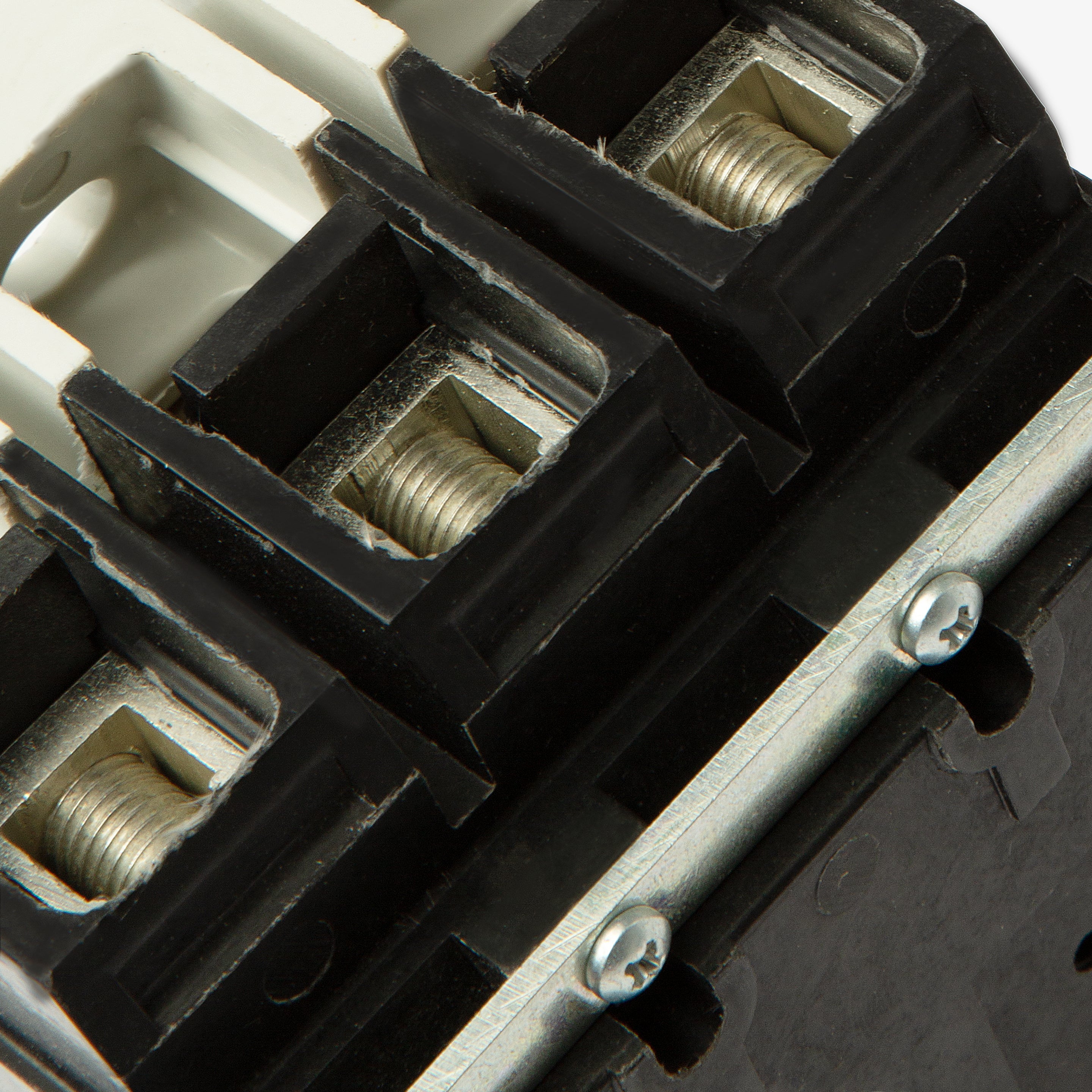

• Terminal Type: Lugs
• For Use With: Eaton Series C Panelboards, Motor Control Centers, Switchboards, Enclosures
• Trip Technology: Thermal Magnetic
• Trip Function Code: LI
• Trip Function: Long-Time, Instantaneous
• Trip Adjustability: Fixed Thermal, Fixed Magnetic
• Wire Gauge: 14-1/0 AWG
• Max Wire: 1/0 AWG
• Min Wire: 14 AWG
• Available Options: Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, DIN Rail Adapter
• Accessories: Line and Load Terminals
• Standards: HACR, IEC 60947-2, NEMA AB-1, UL 489
• Approval: CSA, UL
• Temp Rating: 40C
• Construction Features: HACR Rated, Reverse Feed
• Voltage Type: AC
