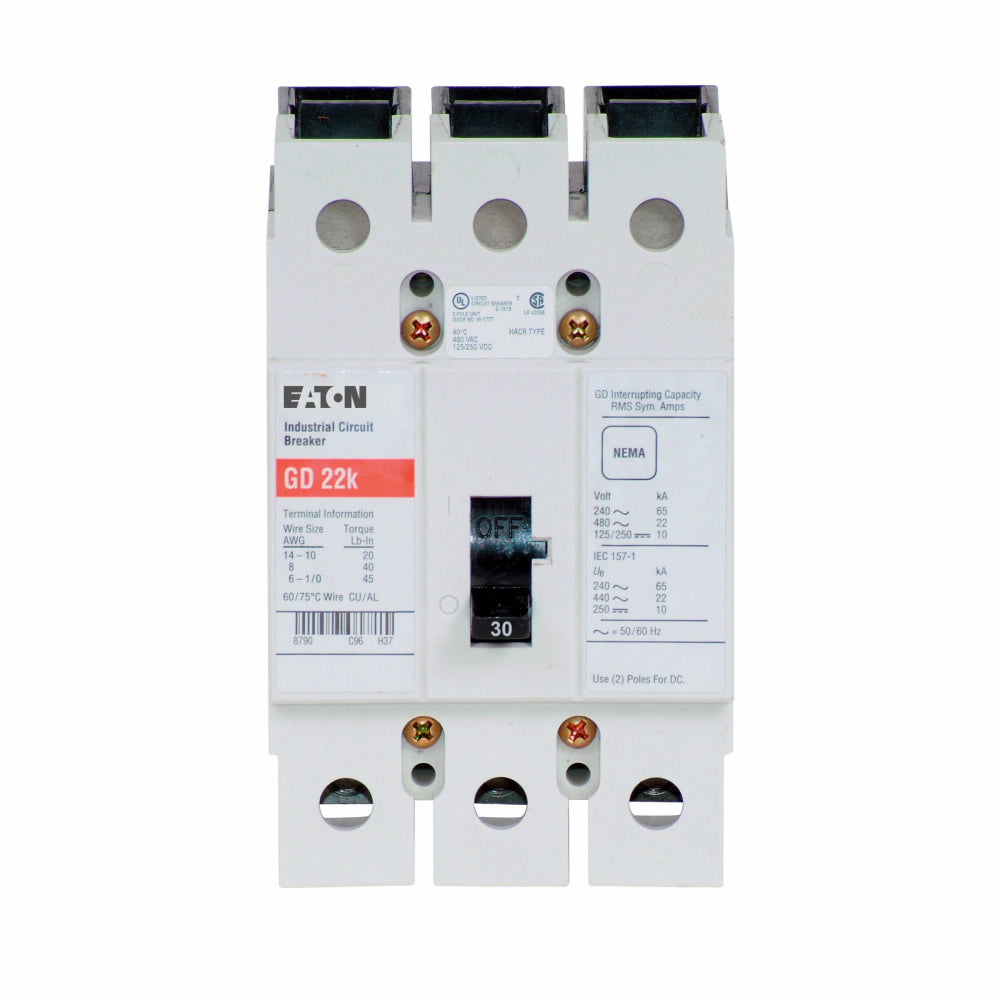

EATON GD3030 BREAKER CKT CASE MLD 480 VAC/125/250 VDC

Product Description

The EATON GD3030 breaker is designed for reliable circuit protection. This molded case circuit breaker operates at 480 VAC and 125/250 VDC with a rated current of thirty Amperes. It features a trip mechanism that combines both fixed thermal and fixed magnetic technology. Install this breaker in panelboards, switchboards, and motor control centers. It delivers dependable performance under various conditions.

• 480 VAC/125/250 VDC rated voltage
• Three-pole configuration
• Fixed thermal and fixed magnetic trip

Product Highlights

Designed for diverse applications including electrical assemblies, the GD3030 meets North American standards and is UL listed.

Product Information

Standard Information

• Brand: Eaton
• Manufacturer Part Number: GD3030

Technical Specifications

• Amperage Rating: 30 A
• Voltage Rating: 480 VAC/125/250 VDC
• Frequency Rating: 50/60 Hz
• Interrupt Rating: 65 kAIC at 240 VAC; 14 kAIC at 480 VAC
• Dimensions: 2.63 x 3 x 4.88 inches
• Number of Poles: 3
• Actuator Type: Toggle
• Mounting Type: Bolt-On
