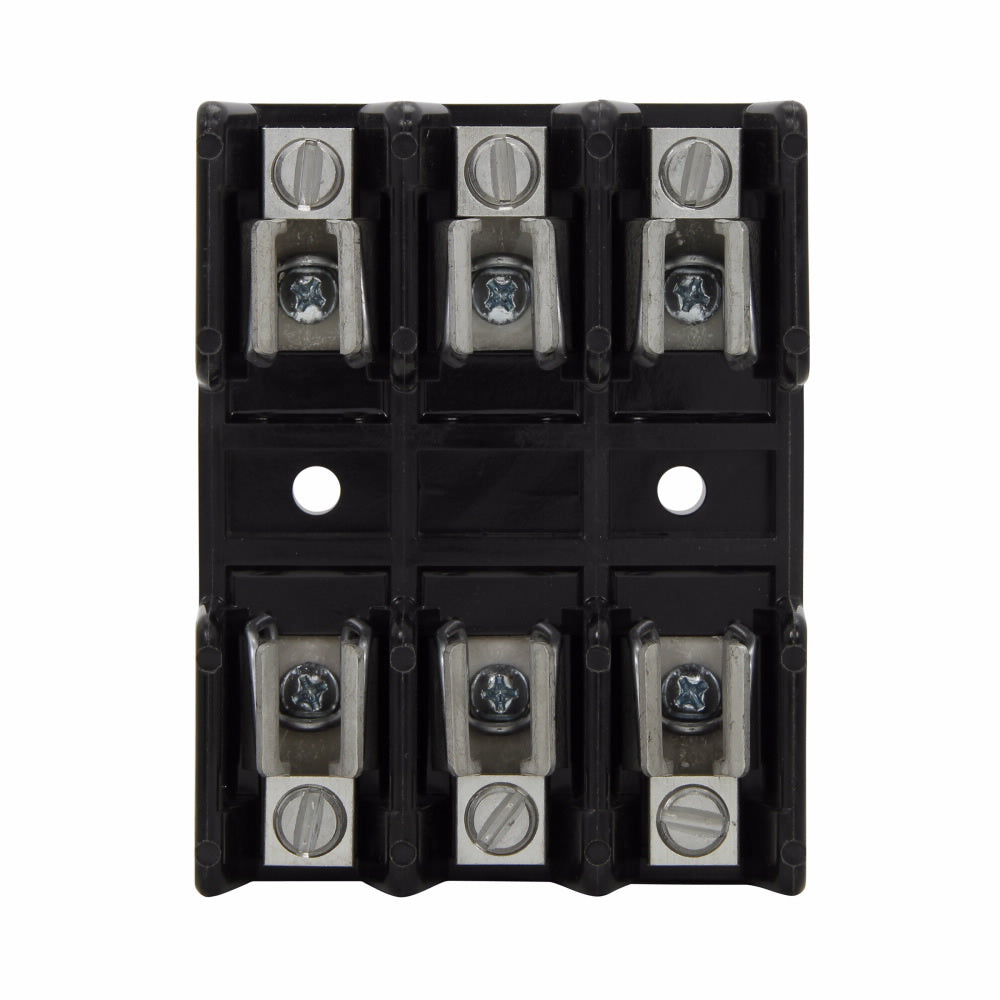

Eaton G30060-3CR BUS 3P SC FUSE BLOCK (25)

Product Description

The Eaton G30060-3CR is a Bussmann fuse block designed for open style configurations. It operates at 480 volts and supports an amperage range from thirty-five to sixty amps. This fuse block accommodates wire sizes ranging from fourteen to two AWG for copper and eight to two AWG for aluminum. It features a box lug with a retaining clip for secure connections.

• Amperage range: 35 to 60 A
• Open style design with DIN rail mounting
• Suitable for use with G/SC fuses

Product Highlights

This product is ideal for electrical assemblies, panels, and OEM applications. The design ensures durability and ease of installation, making it a reliable choice for various electrical tasks.

Product Information

Standard Information

• Manufacturer: Eaton
• UPC: 05171273673

Technical Specifications

• Type: Open Style
• Class: G
• Color: Black
• Voltage Rating: 480 V
• Amperage Rating: 35 to 60 A
• Connection Type: Box Lug with Retaining Clip
• Number of Poles: 3
• Material: Phenolic
• Dimensions: 3.56 in L x 2.75 in W x 1.41 in H
• Fuse Length: 2.259 in
• Fuse Diameter: 0.41 in
• Mounting Type: DIN Rail
• Standards/Approvals: CSA C22.2 No. 39/6225-01/File No. 47235, RoHS Compliant, UL 512/File No. E14853
• Suitable For Use With: G/SC Fuse
• Manufacturer Part Number: G30060-3CR
