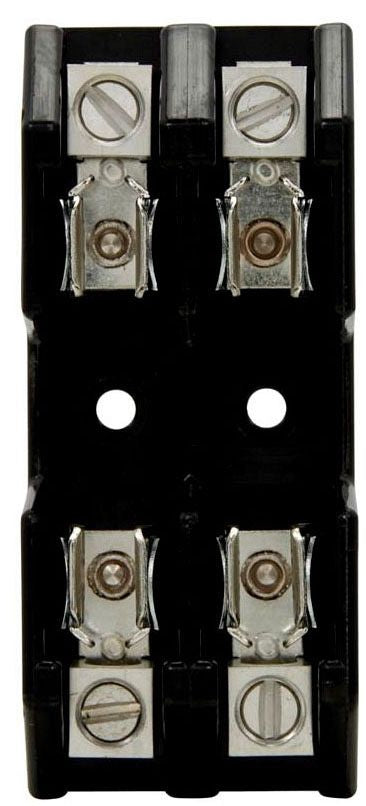

Eaton G30060-2CR BUSS FUSEBLOCK 480 V 2 Poles

Product Description

The Eaton G30060-2CR Bussmann Fuse Block is designed for use with Class G fuses. This open fuse block operates at a voltage of 480 volts with an amperage range of thirty-five to sixty amps. It features two poles and accommodates wire sizes from fourteen to two AWG. The fuse block is suitable for DIN rail mounting and is made from durable phenolic material. It has a fuse length of two point two five nine inches and a diameter of zero point four one inches.

• Supports wire sizes from fourteen to two AWG.
• DIN rail mounting for easy installation.
• Complies with CSA and UL standards.

Product Highlights

This fuse block is ideal for electrical assemblies and panels, providing reliable protection for electrical circuits.

Product Information

Standard Information

• Manufacturer: Eaton
• UPC: 05171273665

Technical Specifications

• Amperage Rating: 35 to 60 A
• Application: Electrical Assemblies, Panels and EOEMs Applications
• Class: G
• Connection Type: Box Lug/Retaining Clip
• Dimensions: 4.25 in L x 1.78 in W x 1.38 in H
• Fuse Diameter: 0.41 in
• Fuse Length: 2.259 in
• Material: Phenolic
• Mounting Type: DIN Rail
• Number of Poles: 2
• Voltage Rating: 480 V
• Suitable For Use With: SC Series Class G Fuse
• Standards/Approvals: CSA C22.2 File No.47235/39|RoHS Compliant|UL 512 File No.E14853 Guide IZLT2
