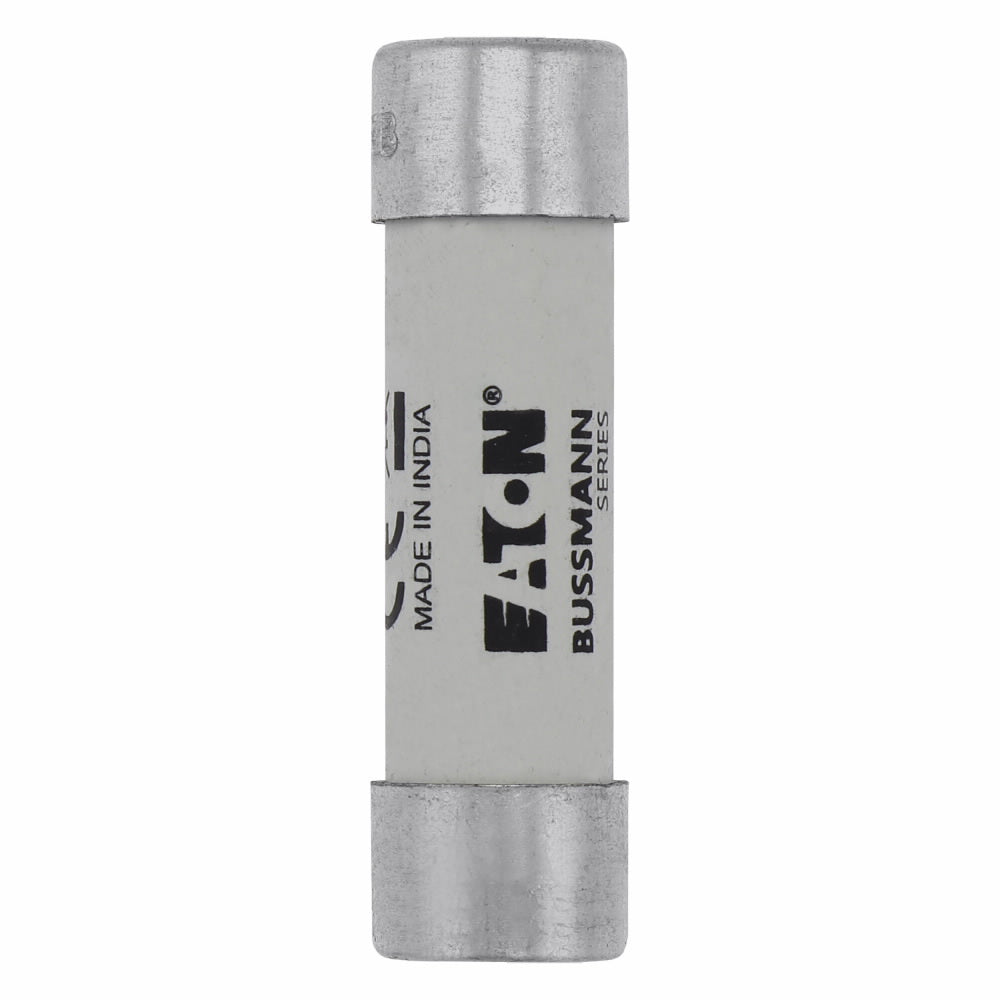

Eaton FWX-15A14F BUS 250V SEMICONDU FUSE (10)

Product Description

The Eaton FWX-15A14F is a Bussmann High Speed Fuse designed for use in electrical assemblies and panels. With a rating of fifteen amps and a voltage of two hundred fifty volts, it provides reliable protection in various applications. This fuse is noteworthy for its fast-acting feature, which allows it to interrupt electrical flows rapidly to prevent damage.

• Fast acting with a high-speed response.
• Rated for fifty kA interrupt capacity.
• Suitable for DC and AC drives including power converters.

Product Highlights

This fuse is ideal for protecting electrical assemblies, DC drives, power converters, and reduced voltage starters. Its ceramic cylindrical body allows for easy holder mounting.

Product Information

Standard Information

• Manufacturer: Eaton
• Manufacturer Part Number: FWX-15A14F

Technical Specifications

• Amperage Rating: 15 A
• Voltage Rating: 250 V
• Body Size: 0.563 in Diameter x 2 in Length
• Body Type: Cylindrical
• Element: Single
• Material: Ceramic
• Mounting Type: Holder
• Rejection Type: Non-Rejection
• Indicating Type: Non-Indicating
• Frequency Rating: 45 to 1000 Hz
• Standards/Approvals: CE Certified, CSA Certified, UL Listed, UL Recognized
