Product Description

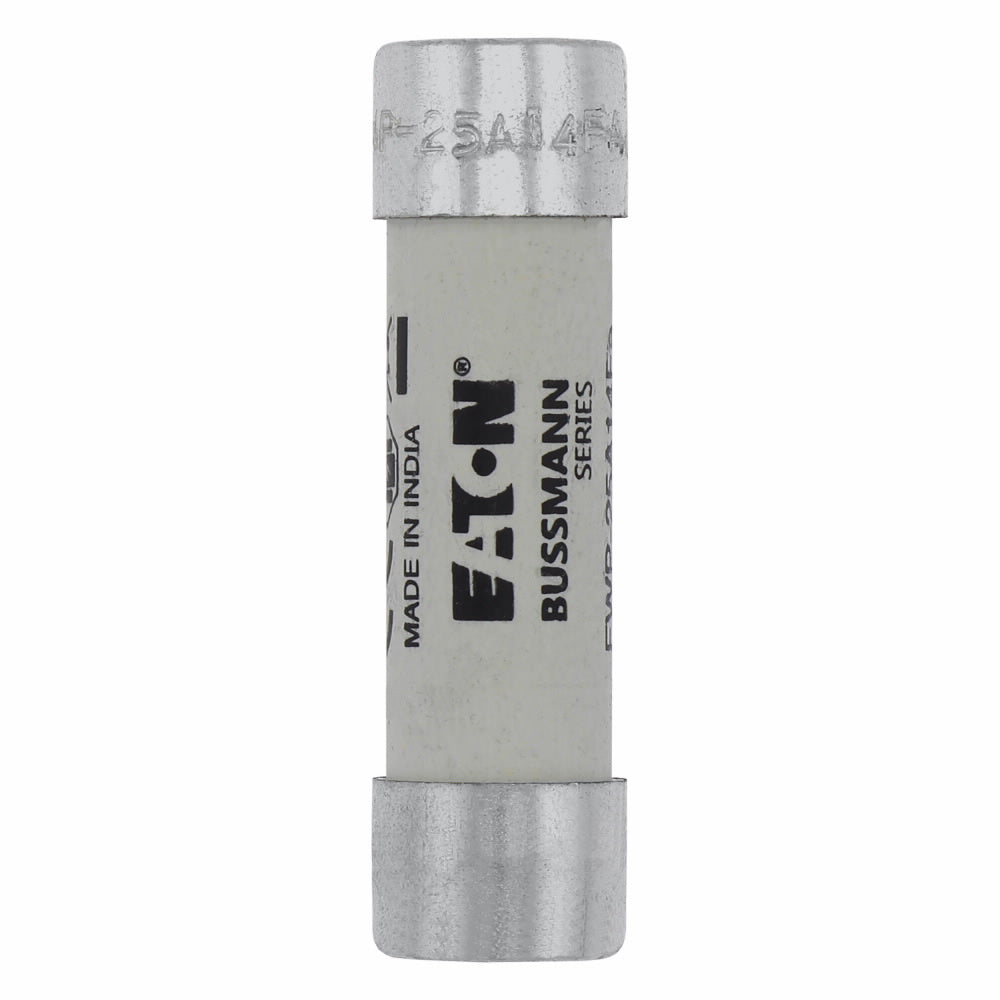

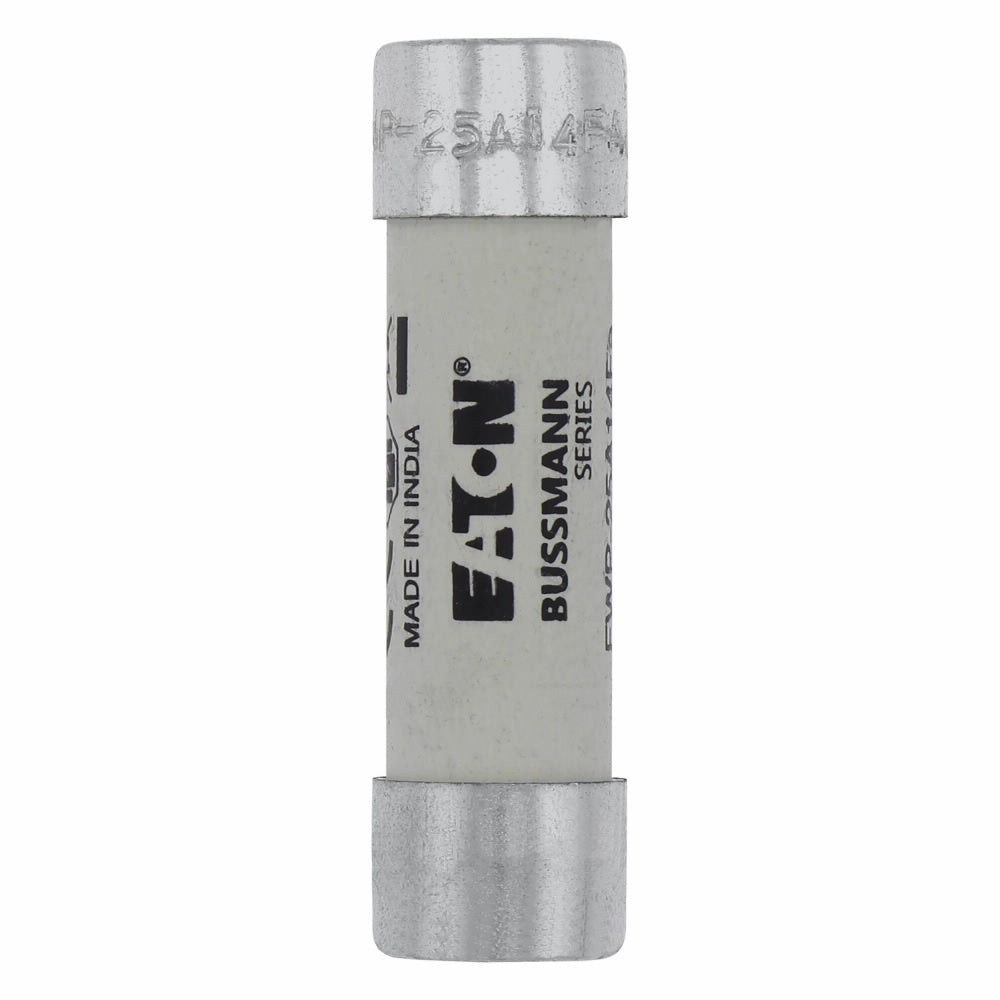

The Bussmann FWP-25A14F is a fast acting high speed fuse by Eaton. It is designed for use in various electrical applications, providing reliable protection for circuits operating at up to 700 VAC.
- Rated current: 25 A
- Interrupt rating: 200 kA
- Cylindrical body size: 0.563 inches in diameter by 2 inches in length
Product Highlights
The Bussmann FWP series fuses are suitable for AC and DC drives, power converters, and variable speed drives. They feature a cylindrical body construction and are compliant with various safety standards.
Product Information
Standard Information
-
Brand: Eaton
-
MPN: FWP-25A14F
Technical Specifications
-
Amperage Rating: 25 A
-
Voltage Rating: 700 VAC
-
Frequency Rating: 45 to 1000 Hz
-
Body Size: 0.563 inches diameter x 2 inches length
-
Body Type: Cylindrical
-
Material: Ceramic
-
Series: FWP
-
Element: Single
-
Class: aR
-
Mounting Type: Holder
-
Terminal Type: Ferrule End
-
Indicating: Non-Indicating
-
Rejection: Non-Rejection
-
Standards/Approvals: CE Marking, CSA 1422, RoHS Compliant, UL Listed File No. E56412, UL JFHR2 File No. E91958
