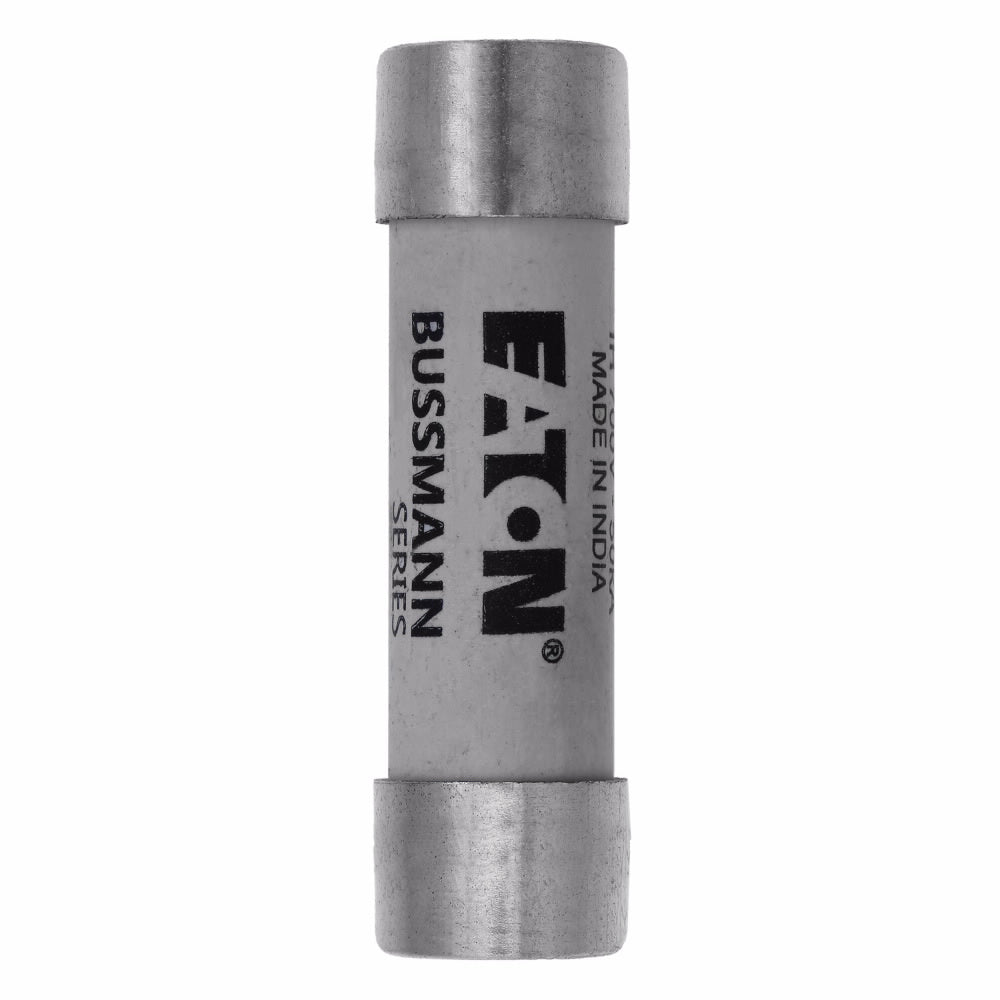

Eaton FWP-20A14F BUSS 700V Semi-Conductor Fuse (1)

Product Description

Eaton's Bussmann FWP-20A14F is a fast acting high speed fuse designed for electrical protection. This fuse operates at twenty amperes and can handle voltage up to seven hundred VAC. Its cylindrical body measures zero point five six three inches in diameter and two inches in length. This fuse is ideal for use in AC and DC drives, power converters, and variable speed drives.

• Fast acting fuse suitable for AC and DC applications.
• Rated for maximum voltage of seven hundred VAC.
• Compact cylindrical design for easy installation.

Product Highlights

The FWP-20A14F offers reliability and efficient protection for various electrical systems. It features a high interrupt rating of two hundred kA, ensuring safety during overcurrent conditions.

Product Information

Standard Information

• Manufacturer: Eaton
• Manufacturer Part Number: FWP-20A14F

Technical Specifications

• Amperage Rating: 20 A
• Voltage Rating: 700 VAC
• Frequency Rating: 45 to 1000 Hz
• Body Size: 0.563 in Dia x 2 in L
• Body Type: Cylindrical
• Class: aR
• Element: Single
• Material: Ceramic
• Terminal Type: Ferrule End
• Mounting Type: Holder
• Indicating: Non-Indicating
• Rejection: Non-Rejection
• Standards/Approvals: CE Marking, CSA 1422, RoHS Compliant, UL Listed File No. E56412, UL JFHR2 File No. E91958
